WOSSNER 0910-6166 8932DB Piston Kit for 4 Stroke Piston Kit - 76.97 mm - Kawasaski

Features

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted
• Kit includes piston, rings, wrist pin and pin locks

Specs

Product Name	Piston Kit
Units	Kit
Bore Size	77.01 mm
Bore - Oversize	+0.01 mm
Stroke Length	53.60 mm
Bore - Oversize	+0,01 mm
Compression Ratio	14.0:1
Piston Size	76.97 mm
Riding Style	Off-Road
Engine Type	4-Stroke
Model	Premium Series
Piston Material	Aluminum Alloy
Piston Material	Forged
Style	Standard Size B

Part Notes

• Double bridge forging.
• 3D crown.
• Two ring design.

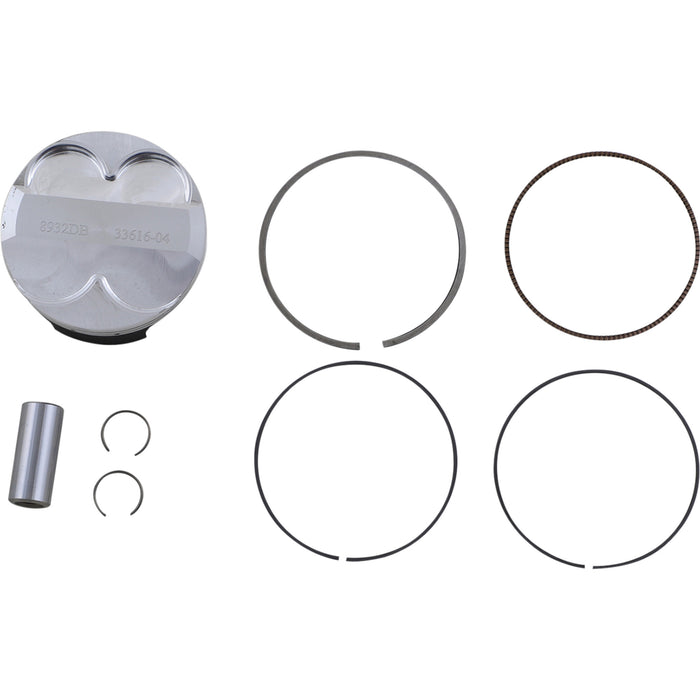

• Kit Includes:
• • Piston #8932DB
• • Ring Set #RIK77.00D
• • Wrist Pin #WP070-SP
• • Retaining Clips #CW16

2017-2019	Kawasaki	KX 250 F
2019	Kawasaki	KX 250

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
