Wiseco

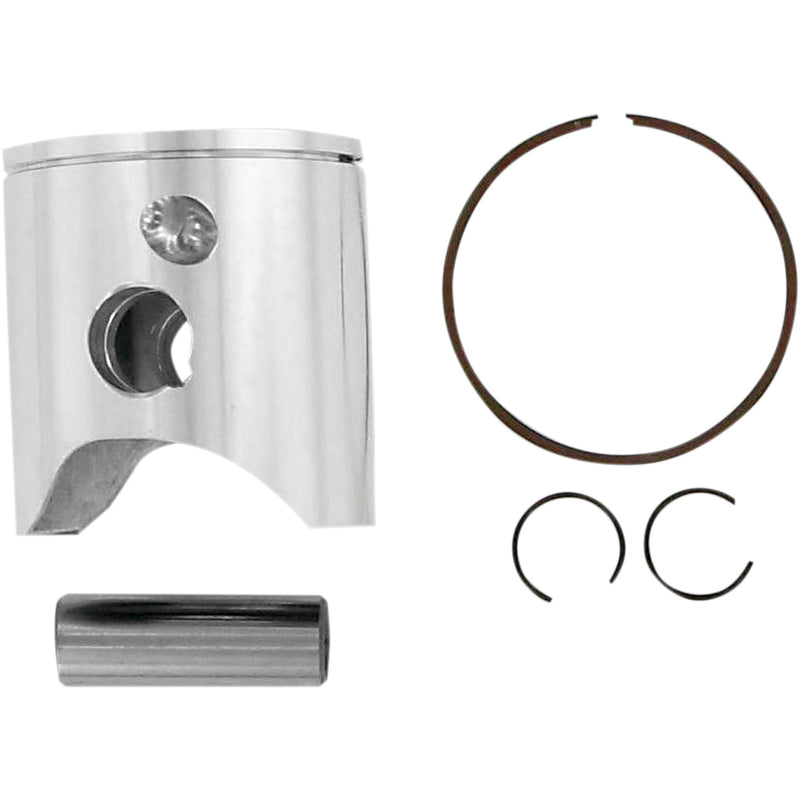

Wiseco GP Series Piston Kit - 755M05600 For Kawasaki KX 125 1995-2008 | Suzuki RM 125 1990-2003
MPN:
755M05600
SKU:
Wiseco
Wiseco GP Series Piston Kit - 755M05600 For Kawasaki KX 125 1995-2008 | Suzuki RM 125 1990-2003
MPN:
755M05600
SKU:
Availability:
Out of stock
Forged from high-silicon aluminum alloy for maximum strength and dependability
Wiseco offers a complete range of popular piston models and years for both trail and racing applications
Durability, longevity and increased horsepower
Innovative forging design and piston skirt provide maximum horsepower and torque
Features forged pistons, rings, wrist pins, and circlips
These high-tech piston designs offer maximum compression ratios, ultra-stiff strutted forgings, and titanium nitride-coated rings, which all add up to more power that is sustained longer
Each piston is E-Coated on the crown, ring grooves, and pin bore, for maximum wear resistance and protection from micro-welding, galling, and detonation
GP Series parts generally have less machining on the outside, which helps seal up the bore for increased compression
Additionally, boost ports are removed for a more predictable powerband and increased pull on the top end
Cylinder sleeves must be purchased separately.
Service intervals may be increased with Racer's Choice pistons over conventional Wiseco pistons, and are for expert racers and tuners only.
Specs
Bore - Oversize
+2,00 mm
Piston Head Shape
Flat Top Conversion
Product Name
Piston Kit
Stroke Length
54,50 mm
Units
Kit
Compression Ratio
Stock
Displacement
134 cc
Piston Diameter
55.95 mm
Skirt Coating
Non-Coated
Bore Size
56.00 mm
Piston Material
Forged
Model
GP Series
Piston Material
4032 Aluminum Alloy
Riding Style
Off-Road
Stroke Length
54.50 mm
Bore - Oversize
+2.00 mm
Engine Type
2-Stroke
Part Notes
Does not have an intake window.
Piston is pinned on centerline.
Suzuki Composite Electrochemical Material (SCEM) bore cylinders will require re-sleeving or replating.
