Wiseco

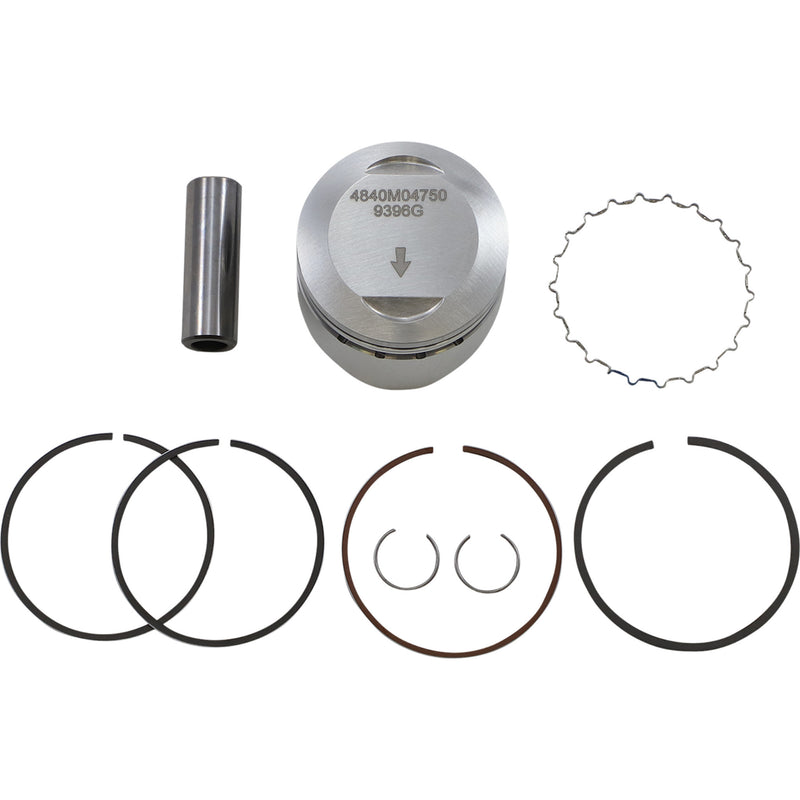

Wiseco Forged Series Piston Kit - 4840M04750 Yamaha 90 2000-2007
MPN:
4840M04750
SKU:
0910-0369
Wiseco
Wiseco Forged Series Piston Kit - 4840M04750 Yamaha 90 2000-2007
MPN:
4840M04750
SKU:
0910-0369
Availability:
Only 3 left!
Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
Dedicated forgings allow for optimized strength-to-weight ratio
Ideal for multiple purpose riding
Kit includes piston, wrist pin, rings and circlips
Specs
Model
Forged Series
Product Name
Piston Kit
Bore - Oversize
+0,50 mm
Bore - Oversize
+0.50 mm
Piston Material
4032 Aluminum Alloy
Riding Style
Off-Road
Piston Diameter
47.47 mm
Units
Kit
Engine Type
4-Stroke
Skirt Coating
Non-Coated
Bore Size
47.50 mm
Compression Ratio
11.0:1
Displacement
92 cc
Stroke Length
51.80 mm
Part Notes
Kit Includes:
• 1x Piston
• 1x Ring Set #1870XE
• 1x Wrist Pin #S592
• 1x Circlip Set #CW13
Original price
$160.95
-
Original price
$160.95
Original price
$160.95
$160.95
-
$160.95
Current price
$160.95
Product Details
Features
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding
- Kit includes piston, wrist pin, rings and circlips
Specs
| Model | Forged Series |
| Product Name | Piston Kit |
| Bore - Oversize | +0,50 mm |
| Bore - Oversize | +0.50 mm |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Piston Diameter | 47.47 mm |
| Units | Kit |
| Engine Type | 4-Stroke |
| Skirt Coating | Non-Coated |
| Bore Size | 47.50 mm |
| Compression Ratio | 11.0:1 |
| Displacement | 92 cc |
| Stroke Length | 51.80 mm |
Part Notes
- Kit Includes:
- • 1x Piston
- • 1x Ring Set #1870XE
- • 1x Wrist Pin #S592
- • 1x Circlip Set #CW13
Product Description
Features
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding
- Kit includes piston, wrist pin, rings and circlips
Specs
| Model | Forged Series |
| Product Name | Piston Kit |
| Bore - Oversize | +0,50 mm |
| Bore - Oversize | +0.50 mm |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Piston Diameter | 47.47 mm |
| Units | Kit |
| Engine Type | 4-Stroke |
| Skirt Coating | Non-Coated |
| Bore Size | 47.50 mm |
| Compression Ratio | 11.0:1 |
| Displacement | 92 cc |
| Stroke Length | 51.80 mm |
Part Notes
- Kit Includes:
- • 1x Piston
- • 1x Ring Set #1870XE
- • 1x Wrist Pin #S592
- • 1x Circlip Set #CW13
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0910-0369 | 4840M04750 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
