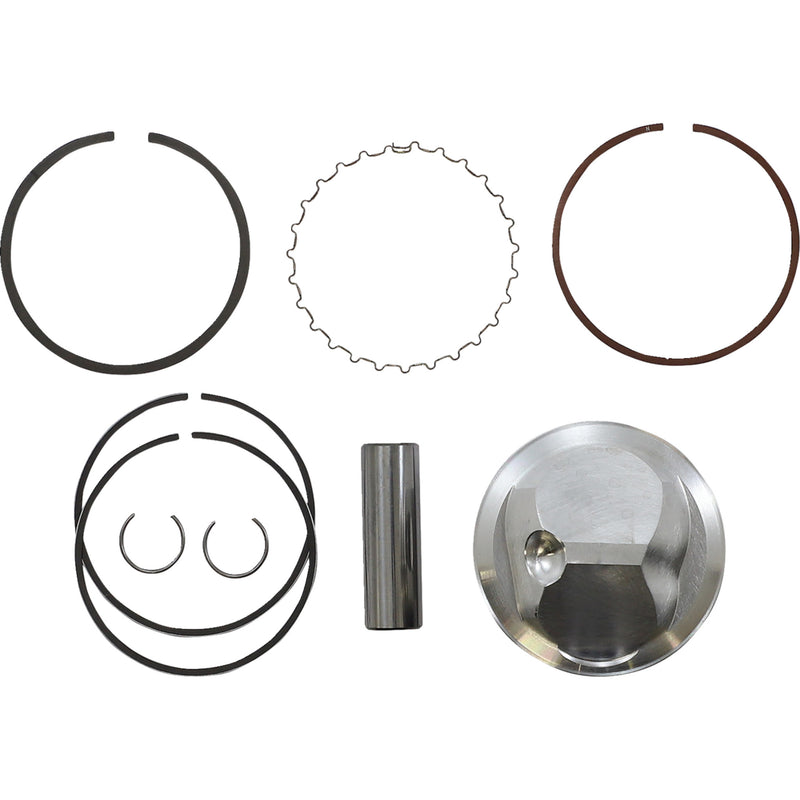

Wiseco Forged Series Piston Kit - 4815M05800 Kawasaki 125 2003-2006
Wiseco Forged Series Piston Kit - 4815M05800 Kawasaki 125 2003-2006
Product Details
Features
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding
- Kit includes piston, wrist pin, rings and circlips
Specs
| Engine Type | 4-Stroke |
| Bore Size | 58.00 mm |
| Displacement | 125 cc |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Bore - Oversize | +1.00 mm |
| Units | Kit |
| Bore - Oversize | +1,00 mm |
| Compression Ratio | 11.0:1 |
| Piston Diameter | 57.95 mm |
| Model | Forged Series |
| Product Name | Piston Kit |
| Skirt Coating | Non-Coated |
| Stroke Length | 48.80 mm |
Part Notes
- Kit Includes:
- • 1x Piston
- • 1x Ring Set #2283XE
- • 1x Wrist Pin #S593
- • 1x Circlip Set #CW14
Features
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding
- Kit includes piston, wrist pin, rings and circlips
Specs
| Engine Type | 4-Stroke |
| Bore Size | 58.00 mm |
| Displacement | 125 cc |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Bore - Oversize | +1.00 mm |
| Units | Kit |
| Bore - Oversize | +1,00 mm |
| Compression Ratio | 11.0:1 |
| Piston Diameter | 57.95 mm |
| Model | Forged Series |
| Product Name | Piston Kit |
| Skirt Coating | Non-Coated |
| Stroke Length | 48.80 mm |
Part Notes
- Kit Includes:
- • 1x Piston
- • 1x Ring Set #2283XE
- • 1x Wrist Pin #S593
- • 1x Circlip Set #CW14
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0910-0361 | 4815M05800 | Out of Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
