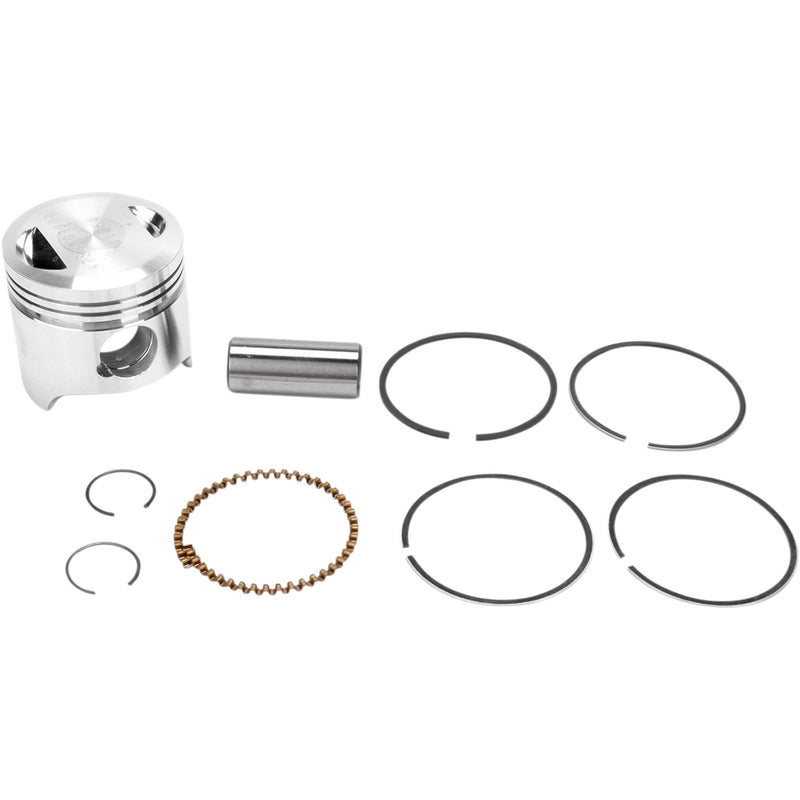

Wiseco Forged Series Piston Kit - 4798M03900 Honda Z50R / XR50R / CRF50F 1988-2013
Wiseco Forged Series Piston Kit - 4798M03900 Honda Z50R / XR50R / CRF50F 1988-2013
Product Details
Features
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding
- Kit includes piston, wrist pin, rings and circlips
Specs
| Displacement | 49.50 cc |
| Engine Type | 4-Stroke |
| Model | Forged Series |
| Product Name | Piston Kit |
| Compression Ratio | 11.0:1 |
| Stroke Length | 41.40 mm |
| Piston Diameter | 38.96 mm |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Units | Kit |
| Bore - Oversize | Standard |
| Bore - Oversize | Standard |
| Riding Style | Street |
| Skirt Coating | Non-Coated |
| Bore Size | 39.00 mm |
Part Notes
- Kit Includes:
- • 1x Piston
- • 1x Ring Set #3900XZ
- • 1x Wrist Pin #S671
- • 1x Circlip Set #CW13
Features
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding
- Kit includes piston, wrist pin, rings and circlips
Specs
| Displacement | 49.50 cc |
| Engine Type | 4-Stroke |
| Model | Forged Series |
| Product Name | Piston Kit |
| Compression Ratio | 11.0:1 |
| Stroke Length | 41.40 mm |
| Piston Diameter | 38.96 mm |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Units | Kit |
| Bore - Oversize | Standard |
| Bore - Oversize | Standard |
| Riding Style | Street |
| Skirt Coating | Non-Coated |
| Bore Size | 39.00 mm |
Part Notes
- Kit Includes:
- • 1x Piston
- • 1x Ring Set #3900XZ
- • 1x Wrist Pin #S671
- • 1x Circlip Set #CW13
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0910-0202 | 4798M03900 | In Stock |
