Availability:
Only 1 left!

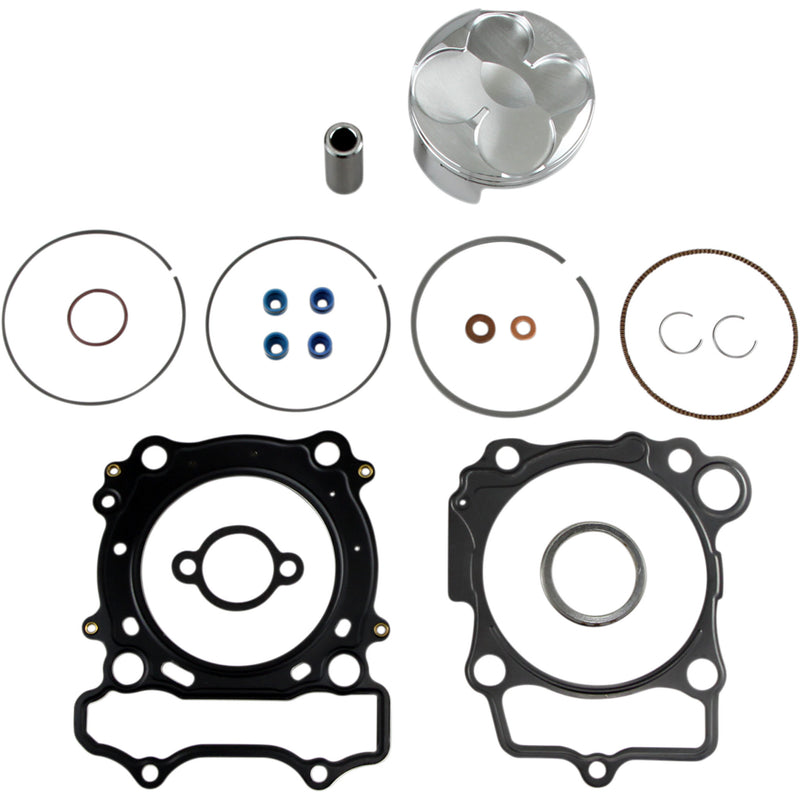

Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
Wiseco pistons can be fitted only with Wiseco rings
Cylinder sleeves must be purchased separately.
Specs
Compression Ratio
13.5:1
Piston Diameter
76.96 mm
Bore Size
77.00 mm
Displacement
250 cc
Engine Type
4-Stroke
Skirt Coating
Non-Coated
Type
Top End
Product Name
Rebuild Kit
Model
Forged Series
Stroke Length
53.60 mm
Units
Kit
Piston Material
2618 Aluminum Alloy
Riding Style
Off-Road
Part Notes
Fits Nikasil bore cylinder.
Kit Includes:
• Piston Kit #40116M07700
• Ring Set #7700YC
• Wrist Pin #S742
• Wrist Pin Retainer Set #CW16
• Gasket Kit #W6929
2014-2015
Yamaha
YZ 250 F
Fitment DisclosureThis quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Original price
$314.95
-
Original price
$314.95
Original price
$314.95
$314.95
-
$314.95
Current price
$314.95
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Compression Ratio | 13.5:1 |
| Piston Diameter | 76.96 mm |
| Bore Size | 77.00 mm |
| Displacement | 250 cc |
| Engine Type | 4-Stroke |
| Skirt Coating | Non-Coated |
| Type | Top End |
| Product Name | Rebuild Kit |
| Model | Forged Series |
| Stroke Length | 53.60 mm |
| Units | Kit |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | Off-Road |
Part Notes
- Fits Nikasil bore cylinder.
- Kit Includes:
- • Piston Kit #40116M07700
- • Ring Set #7700YC
- • Wrist Pin #S742
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W6929
| 2014-2015 | Yamaha | YZ 250 F |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Compression Ratio | 13.5:1 |
| Piston Diameter | 76.96 mm |
| Bore Size | 77.00 mm |
| Displacement | 250 cc |
| Engine Type | 4-Stroke |
| Skirt Coating | Non-Coated |
| Type | Top End |
| Product Name | Rebuild Kit |
| Model | Forged Series |
| Stroke Length | 53.60 mm |
| Units | Kit |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | Off-Road |
Part Notes
- Fits Nikasil bore cylinder.
- Kit Includes:
- • Piston Kit #40116M07700
- • Ring Set #7700YC
- • Wrist Pin #S742
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W6929
| 2014-2015 | Yamaha | YZ 250 F |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-1143 | PK1899 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
