Wiseco Forged Series Rebuild Kit - PK1893 Suzuki RMZ 450 2013-2025
Wiseco Forged Series Rebuild Kit - PK1893 Suzuki RMZ 450 2013-2025
Product Details
Features

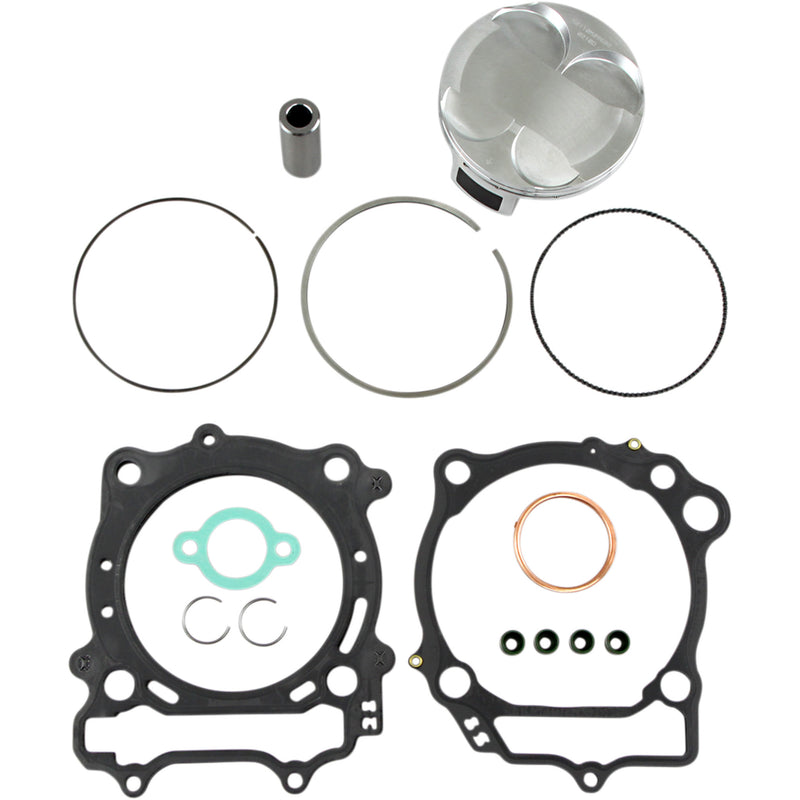

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Stroke Length | 62.10 mm |
| Engine Type | 4-Stroke |
| Piston Diameter | 95.95 mm |
| Type | Top End |
| Bore Size | 96.00 mm |
| Skirt Coating | ArmorGlide® |
| Riding Style | Off-Road |
| Units | Kit |
| Displacement | 449 cc |
| Compression Ratio | 13.0:1 |
| Model | Forged Series |
Part Notes
- Kit Includes:
- • Piston Kit #40110M09600
- • Ring Set #7680MC
- • Wrist Pin #S686
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W6640
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Stroke Length | 62.10 mm |
| Engine Type | 4-Stroke |
| Piston Diameter | 95.95 mm |
| Type | Top End |
| Bore Size | 96.00 mm |
| Skirt Coating | ArmorGlide® |
| Riding Style | Off-Road |
| Units | Kit |
| Displacement | 449 cc |
| Compression Ratio | 13.0:1 |
| Model | Forged Series |
Part Notes
- Kit Includes:
- • Piston Kit #40110M09600
- • Ring Set #7680MC
- • Wrist Pin #S686
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W6640
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-1138 | PK1893 | Out of Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Stroke Length | 62.10 mm |
| Engine Type | 4-Stroke |
| Piston Diameter | 95.95 mm |
| Type | Top End |
| Bore Size | 96.00 mm |
| Skirt Coating | ArmorGlide® |
| Riding Style | Off-Road |
| Units | Kit |
| Displacement | 449 cc |
| Compression Ratio | 13.0:1 |
| Model | Forged Series |
Part Notes
- Kit Includes:
- • Piston Kit #40110M09600
- • Ring Set #7680MC
- • Wrist Pin #S686
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W6640
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-1138 | PK1893 | Out of Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
