Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Compression Ratio | 14.0:1 |
| Units | Kit |
| Type | Top End |
| Riding Style | Off-Road |
| Skirt Coating | ArmorGlide® |
| Bore Size | 77.00 mm |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |
| Displacement | 250 cc |
| Model | Forged Series |
| Stroke Length | 53.60 mm |
| Piston Diameter | 76.95 mm |
Part Notes
- High compression.
- Fits Nikasil bore Cylinder.

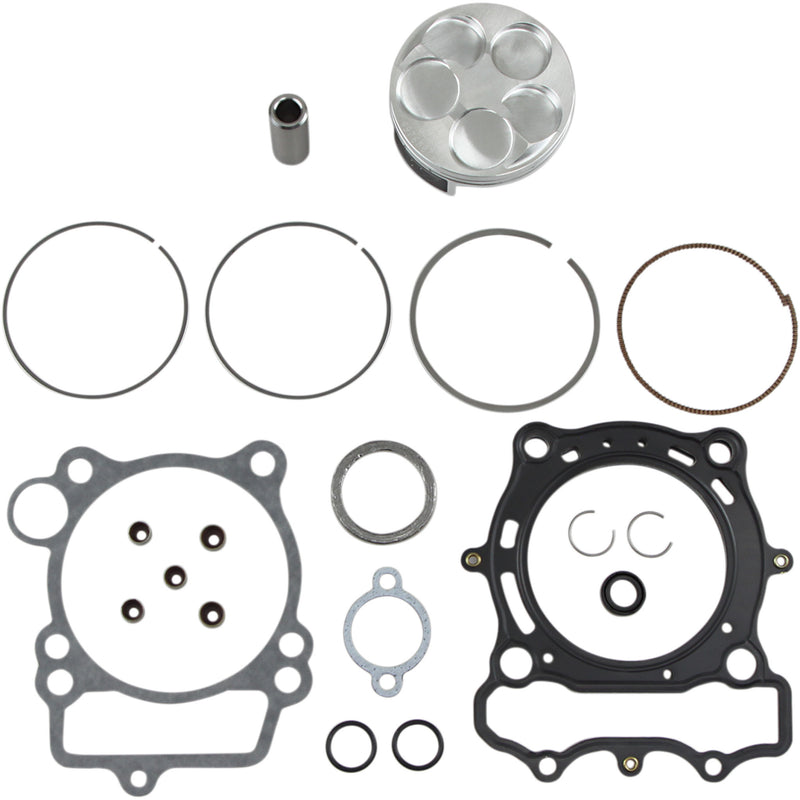

- Kit Includes:
- • Piston Kit #4976M07700
- • Ring Set #7700YC
- • Wrist Pin #S742
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W5921
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Compression Ratio | 14.0:1 |
| Units | Kit |
| Type | Top End |
| Riding Style | Off-Road |
| Skirt Coating | ArmorGlide® |
| Bore Size | 77.00 mm |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |
| Displacement | 250 cc |
| Model | Forged Series |
| Stroke Length | 53.60 mm |
| Piston Diameter | 76.95 mm |
Part Notes
- High compression.
- Fits Nikasil bore Cylinder.
- Kit Includes:
- • Piston Kit #4976M07700
- • Ring Set #7700YC
- • Wrist Pin #S742
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W5921
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0938 | PK1845 | Out of Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Compression Ratio | 14.0:1 |
| Units | Kit |
| Type | Top End |
| Riding Style | Off-Road |
| Skirt Coating | ArmorGlide® |
| Bore Size | 77.00 mm |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |
| Displacement | 250 cc |
| Model | Forged Series |
| Stroke Length | 53.60 mm |
| Piston Diameter | 76.95 mm |
Part Notes
- High compression.
- Fits Nikasil bore Cylinder.
- Kit Includes:
- • Piston Kit #4976M07700
- • Ring Set #7700YC
- • Wrist Pin #S742
- • Wrist Pin Retainer Set #CW16
- • Gasket Kit #W5921
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0938 | PK1845 | Out of Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
