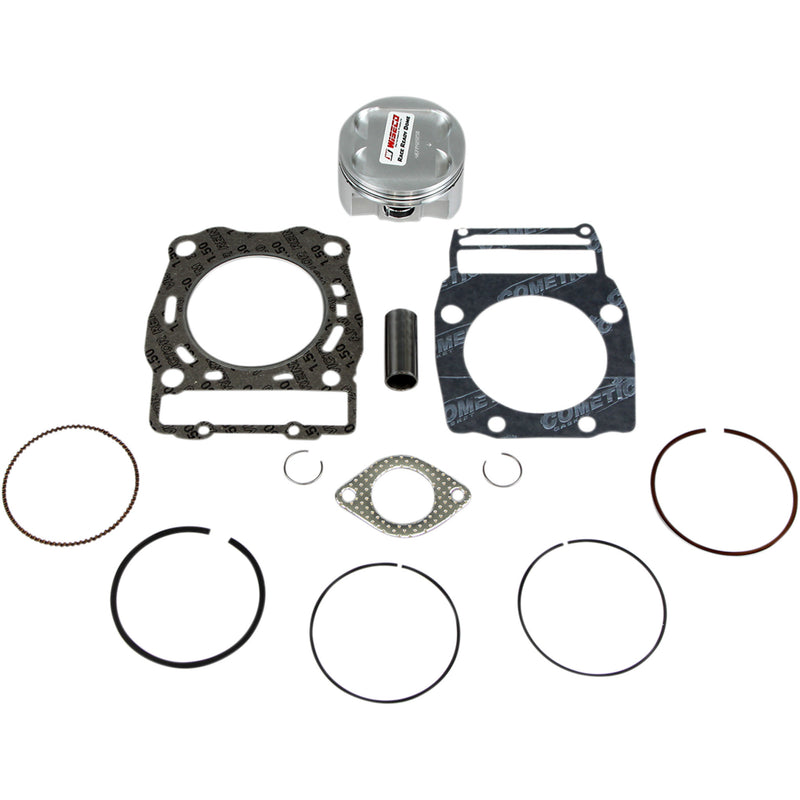

WISECO 0903-0919 PK1653 High-Performance Piston Kit with Gaskets for 4-Stroke Piston Kit with Gaskets - 92.50 mm - Polaris
WISECO 0903-0919 PK1653 High-Performance Piston Kit with Gaskets for 4-Stroke Piston Kit with Gaskets - 92.50 mm - Polaris
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Engine Type | 4-Stroke |
| Displacement | 499 cc |
| Units | Kit |
| Model | Forged Series |
| Piston Diameter | 92.45 mm |
| Stroke Length | 75.00 mm |
| Compression Ratio | 10.2:1 |
| Product Name | Rebuild Kit |
| Skirt Coating | Non-Coated |
| Bore Size | 92.50 mm |
| Riding Style | ATV |
| Type | Top End |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4677M09250
- • Ring Set #3642XC
- • Wrist Pin #S591
- • Wrist Pin Retainer Set #CW23
- • Gasket Kit #W5747
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Engine Type | 4-Stroke |
| Displacement | 499 cc |
| Units | Kit |
| Model | Forged Series |
| Piston Diameter | 92.45 mm |
| Stroke Length | 75.00 mm |
| Compression Ratio | 10.2:1 |
| Product Name | Rebuild Kit |
| Skirt Coating | Non-Coated |
| Bore Size | 92.50 mm |
| Riding Style | ATV |
| Type | Top End |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4677M09250
- • Ring Set #3642XC
- • Wrist Pin #S591
- • Wrist Pin Retainer Set #CW23
- • Gasket Kit #W5747
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0919 | PK1653 | In Stock |
