Availability:
Only 5 left!
Forged from high-silicon aluminum alloy for maximum strength and dependability
Twin Cam pistons have Armor Plating which improves ring seal, eliminates ring micro-welding and improves the piston's ability to defend against detonation damage

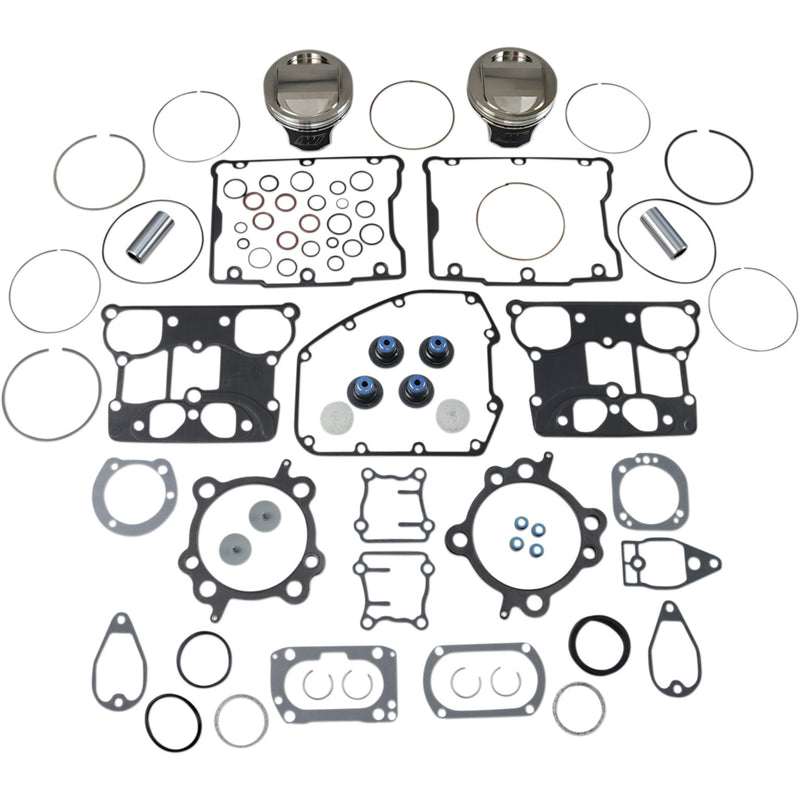

Kit includes pistons, retainer clips, chrome piston pins, top end gasket kit, and VM-Rings package (1.2 mm steel, positive twist, gas nitrided top ring, 1.2 mm cast iron, taper under-hook scraper ring and 2.0 mm three piece, flex vent oil ring with steel chrome-faced rails); VMF- Ring package includes 3.0 mm oil ring instead of 2.0 mm oil ring
Pistons are made in the USA
Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings.
Specs
Displacement
1550 cc
Skirt Coating
ArmorGlide®
Units
Kit
Color/Finish
Aluminum
Type
Top End
Bore Oversize
Standard
Engine Type
4-Stroke
Piston Material
2618 Aluminum Alloy
Product Name
Rebuild Kit
Riding Style
Street
Bore Size
3.875"
Compression Ratio
10.5:1
Bore - Oversize
Standard
Piston Diameter
3.8725"
Part Notes
Requires Screamin' Eagle module on fuel-injected models.
VM-Ring package or VMF-Ring package is available for this piston kit.
Original price
$716.95
-
Original price
$716.95
Original price
$716.95
$716.95
-
$716.95
Current price
$716.95
Product Details
Features
- Forged from high-silicon aluminum alloy for maximum strength and dependability
- Twin Cam pistons have Armor Plating which improves ring seal, eliminates ring micro-welding and improves the piston's ability to defend against detonation damage
- Kit includes pistons, retainer clips, chrome piston pins, top end gasket kit, and VM-Rings package (1.2 mm steel, positive twist, gas nitrided top ring, 1.2 mm cast iron, taper under-hook scraper ring and 2.0 mm three piece, flex vent oil ring with steel chrome-faced rails); VMF- Ring package includes 3.0 mm oil ring instead of 2.0 mm oil ring
- Pistons are made in the USA
- Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings.
Specs
| Displacement | 1550 cc |
| Skirt Coating | ArmorGlide® |
| Units | Kit |
| Color/Finish | Aluminum |
| Type | Top End |
| Bore Oversize | Standard |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Riding Style | Street |
| Bore Size | 3.875" |
| Compression Ratio | 10.5:1 |
| Bore - Oversize | Standard |
| Piston Diameter | 3.8725" |
Part Notes
- Requires Screamin' Eagle module on fuel-injected models.
- VM-Ring package or VMF-Ring package is available for this piston kit.
Features
- Forged from high-silicon aluminum alloy for maximum strength and dependability
- Twin Cam pistons have Armor Plating which improves ring seal, eliminates ring micro-welding and improves the piston's ability to defend against detonation damage
- Kit includes pistons, retainer clips, chrome piston pins, top end gasket kit, and VM-Rings package (1.2 mm steel, positive twist, gas nitrided top ring, 1.2 mm cast iron, taper under-hook scraper ring and 2.0 mm three piece, flex vent oil ring with steel chrome-faced rails); VMF- Ring package includes 3.0 mm oil ring instead of 2.0 mm oil ring
- Pistons are made in the USA
- Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings.
Specs
| Displacement | 1550 cc |
| Skirt Coating | ArmorGlide® |
| Units | Kit |
| Color/Finish | Aluminum |
| Type | Top End |
| Bore Oversize | Standard |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Riding Style | Street |
| Bore Size | 3.875" |
| Compression Ratio | 10.5:1 |
| Bore - Oversize | Standard |
| Piston Diameter | 3.8725" |
Part Notes
- Requires Screamin' Eagle module on fuel-injected models.
- VM-Ring package or VMF-Ring package is available for this piston kit.
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0787 | VT2709 | In Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Forged from high-silicon aluminum alloy for maximum strength and dependability
- Twin Cam pistons have Armor Plating which improves ring seal, eliminates ring micro-welding and improves the piston's ability to defend against detonation damage
- Kit includes pistons, retainer clips, chrome piston pins, top end gasket kit, and VM-Rings package (1.2 mm steel, positive twist, gas nitrided top ring, 1.2 mm cast iron, taper under-hook scraper ring and 2.0 mm three piece, flex vent oil ring with steel chrome-faced rails); VMF- Ring package includes 3.0 mm oil ring instead of 2.0 mm oil ring
- Pistons are made in the USA
- Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings.
Specs
| Displacement | 1550 cc |
| Skirt Coating | ArmorGlide® |
| Units | Kit |
| Color/Finish | Aluminum |
| Type | Top End |
| Bore Oversize | Standard |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Riding Style | Street |
| Bore Size | 3.875" |
| Compression Ratio | 10.5:1 |
| Bore - Oversize | Standard |
| Piston Diameter | 3.8725" |
Part Notes
- Requires Screamin' Eagle module on fuel-injected models.
- VM-Ring package or VMF-Ring package is available for this piston kit.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0787 | VT2709 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
