Product Details
Features

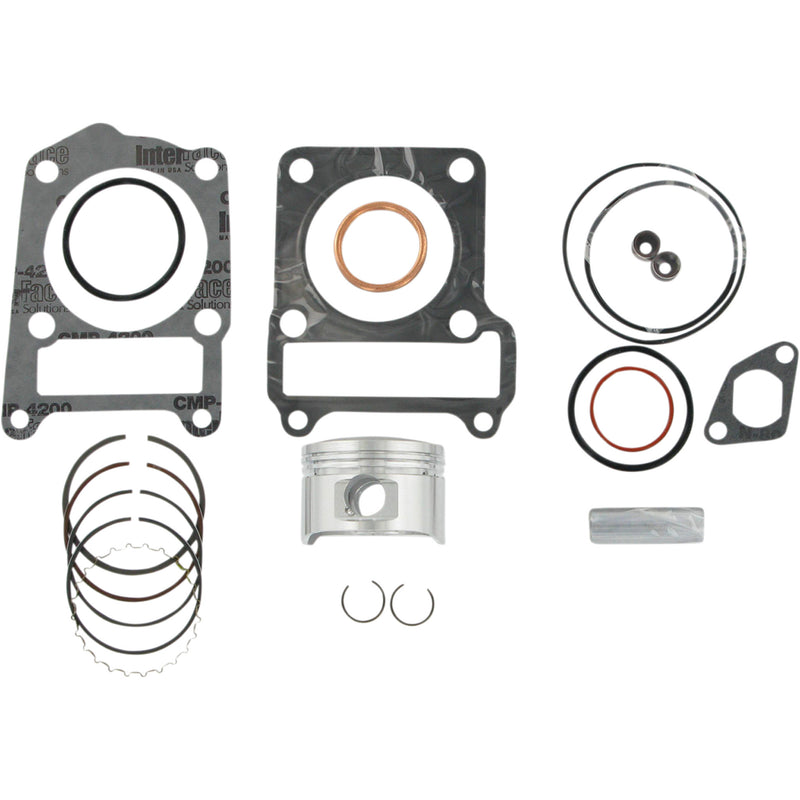

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 54.00 mm |
| Bore Size | 54.50 mm |
| Compression Ratio | 11.0:1 |
| Units | Kit |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Engine Type | 4-Stroke |
| Product Name | Rebuild Kit |
| Displacement | 123.7 cc |
| Piston Diameter | 54.45 mm |
| Type | Top End |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4752M05450
- • Ring Set #S2146XE
- • Wrist Pin #S571
- • Wrist Pin Retainer Set #CW15
- • Gasket Kit #W5962
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 54.00 mm |
| Bore Size | 54.50 mm |
| Compression Ratio | 11.0:1 |
| Units | Kit |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Engine Type | 4-Stroke |
| Product Name | Rebuild Kit |
| Displacement | 123.7 cc |
| Piston Diameter | 54.45 mm |
| Type | Top End |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4752M05450
- • Ring Set #S2146XE
- • Wrist Pin #S571
- • Wrist Pin Retainer Set #CW15
- • Gasket Kit #W5962
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0740 | PK1683 | Out of Stock |
This Product Fits
