Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco pistons can be fitted only with Wiseco rings
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Cylinder sleeves must be purchased separately.
Specs
| Bore Size | 45.00 mm |
| Displacement | 63.58 cc |
| Engine Type | 2-Stroke |
| Type | Top End |
| Bore - Oversize | Standard |
| Product Name | Rebuild Kit |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 40.00 mm |
| Piston Diameter | 44.95 mm |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Bore - Oversize | Standard |
| Model | Pro-Lite |
Part Notes
- Fits Nikasil bore cylinder.

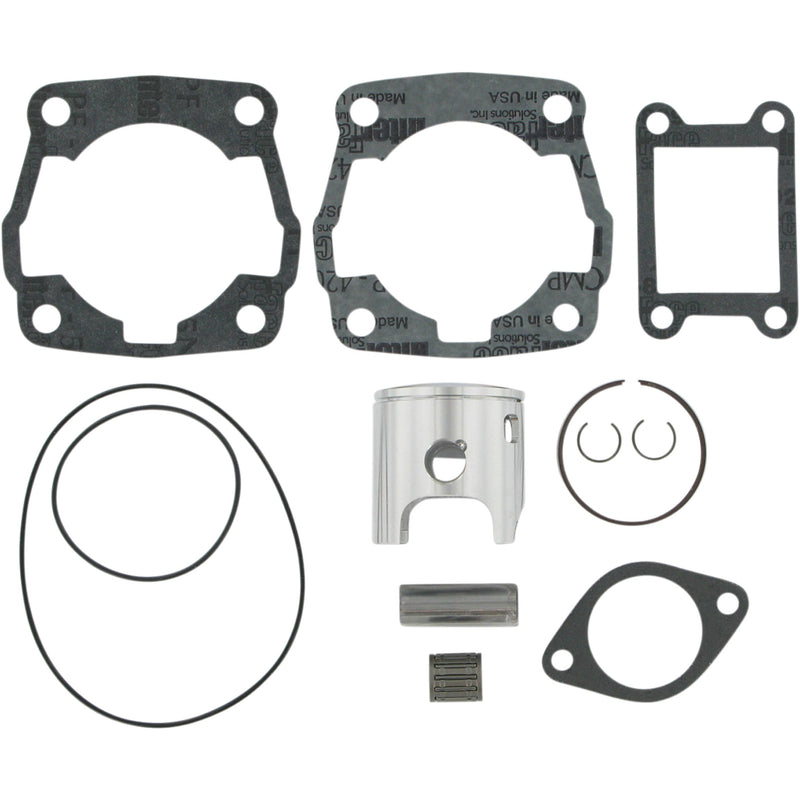

- Kit Includes:
- • Pro-Lite Piston
- • Ring Set
- • Wrist Pin
- • Circlips
- • Bearing
- • Gaskets
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco pistons can be fitted only with Wiseco rings
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Cylinder sleeves must be purchased separately.
Specs
| Bore Size | 45.00 mm |
| Displacement | 63.58 cc |
| Engine Type | 2-Stroke |
| Type | Top End |
| Bore - Oversize | Standard |
| Product Name | Rebuild Kit |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 40.00 mm |
| Piston Diameter | 44.95 mm |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Bore - Oversize | Standard |
| Model | Pro-Lite |
Part Notes
- Fits Nikasil bore cylinder.
- Kit Includes:
- • Pro-Lite Piston
- • Ring Set
- • Wrist Pin
- • Circlips
- • Bearing
- • Gaskets
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0701 | PK1514 | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco pistons can be fitted only with Wiseco rings
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC).
- Cylinder sleeves must be purchased separately.
Specs
| Bore Size | 45.00 mm |
| Displacement | 63.58 cc |
| Engine Type | 2-Stroke |
| Type | Top End |
| Bore - Oversize | Standard |
| Product Name | Rebuild Kit |
| Piston Material | 4032 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 40.00 mm |
| Piston Diameter | 44.95 mm |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Bore - Oversize | Standard |
| Model | Pro-Lite |
Part Notes
- Fits Nikasil bore cylinder.
- Kit Includes:
- • Pro-Lite Piston
- • Ring Set
- • Wrist Pin
- • Circlips
- • Bearing
- • Gaskets
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0701 | PK1514 | In Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
