Wiseco Forged Series Rebuild Kit - PK1432 Yamaha YFM660R Raptor 2001-2005
Wiseco Forged Series Rebuild Kit - PK1432 Yamaha YFM660R Raptor 2001-2005
Product Details
Features

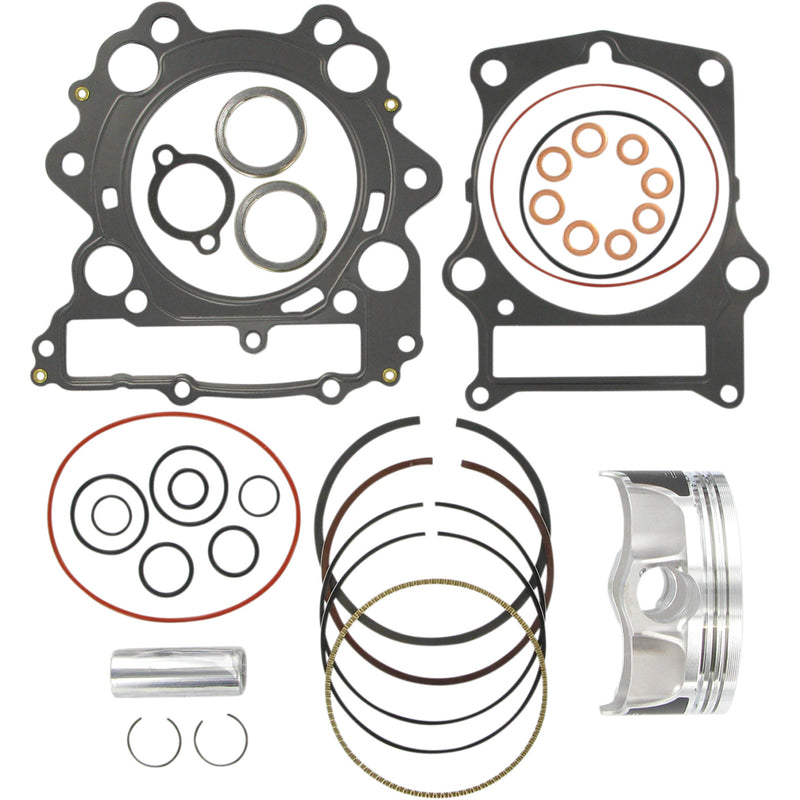

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Model | Forged Series |
| Riding Style | ATV |
| Stroke Length | 84.00 mm |
| Displacement | 660 cc |
| Compression Ratio | 9.9:1 |
| Piston Diameter | 100.42 mm |
| Skirt Coating | ArmorGlide® |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Type | Top End |
| Units | Kit |
| Bore Size | 100.50 mm |
| Engine Type | 4-Stroke |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4966M10050
- • Ring Set #10050XS
- • Wrist Pin #S655
- • Wrist Pin Retainer Set #CW22
- • Gasket Kit #W6017
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Model | Forged Series |
| Riding Style | ATV |
| Stroke Length | 84.00 mm |
| Displacement | 660 cc |
| Compression Ratio | 9.9:1 |
| Piston Diameter | 100.42 mm |
| Skirt Coating | ArmorGlide® |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Type | Top End |
| Units | Kit |
| Bore Size | 100.50 mm |
| Engine Type | 4-Stroke |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4966M10050
- • Ring Set #10050XS
- • Wrist Pin #S655
- • Wrist Pin Retainer Set #CW22
- • Gasket Kit #W6017
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0622 | PK1432 | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
