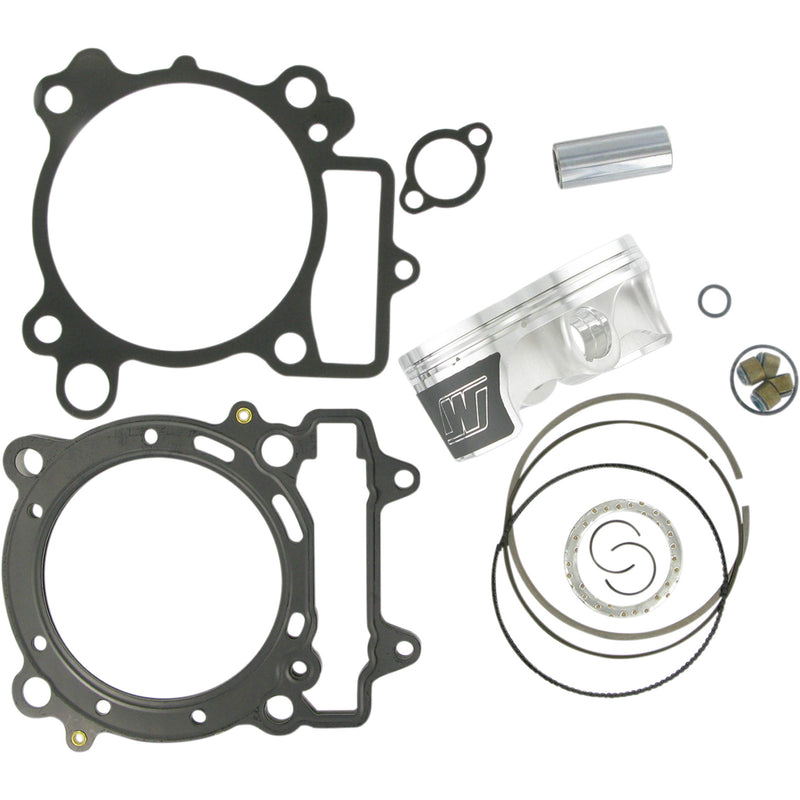

Wiseco Forged Series Rebuild Kit - PK1403 Kawasaki KX 450 2006-2008
Wiseco Forged Series Rebuild Kit - PK1403 Kawasaki KX 450 2006-2008
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Compression Ratio | 12.0:1 |
| Engine Type | 4-Stroke |
| Stroke Length | 62.10 mm |
| Type | Top End |
| Units | Kit |
| Bore Size | 96.00 mm |
| Displacement | 449 cc |
| Piston Diameter | Standard |
| Skirt Coating | ArmorGlide® |
| Riding Style | Off-Road |
| Model | Forged Series |
Part Notes
- Kit Includes:
- • Piston Kit #4900M09600
- • Ring Set #9600ZV
- • Wrist Pin #S682
- • Wrist Pin Retainer Set #CW19
- • Gasket Kit #W6434
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Compression Ratio | 12.0:1 |
| Engine Type | 4-Stroke |
| Stroke Length | 62.10 mm |
| Type | Top End |
| Units | Kit |
| Bore Size | 96.00 mm |
| Displacement | 449 cc |
| Piston Diameter | Standard |
| Skirt Coating | ArmorGlide® |
| Riding Style | Off-Road |
| Model | Forged Series |
Part Notes
- Kit Includes:
- • Piston Kit #4900M09600
- • Ring Set #9600ZV
- • Wrist Pin #S682
- • Wrist Pin Retainer Set #CW19
- • Gasket Kit #W6434
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0575 | PK1403 | In Stock |
This Product Fits
