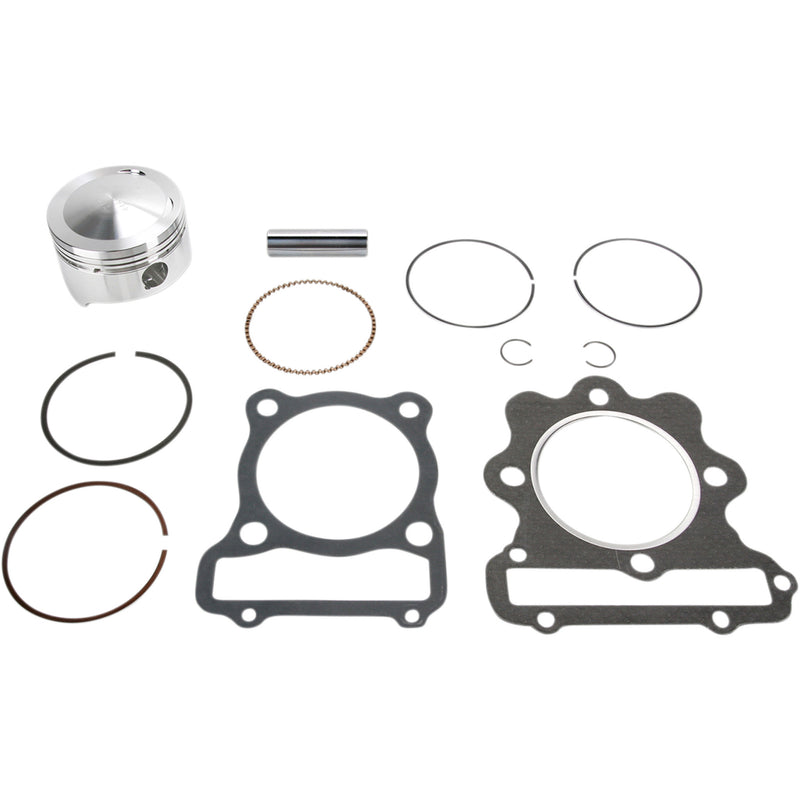

Wiseco Forged Series Rebuild Kit - PK1223 Honda XR250R / XR250L 1986-2004
Wiseco Forged Series Rebuild Kit - PK1223 Honda XR250R / XR250L 1986-2004
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Cylinder sleeves must be purchased separately.
- Correct replacement ring style is stamped on the dome of piston. Example: "C" for "XC", "G" for "XG" and "H" for "XH".
Specs
| Piston Diameter | 76.95 mm |
| Product Name | Rebuild Kit |
| Bore - Oversize | +4,00 mm |
| Bore - Oversize | +4.00 mm |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Bore Size | 77.00 mm |
| Compression Ratio | 10.5:1 |
| Type | Top End |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 59.50 mm |
| Displacement | 250 cc |
| Model | Forged Series |
Part Notes
- Cylinder boring required.
- Kit Includes:
- • +4.00 MM Oversize Forged Series Piston
- • Ring Set
- • Wrist Pin
- • Circlips
- • Gaskets
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Cylinder sleeves must be purchased separately.
- Correct replacement ring style is stamped on the dome of piston. Example: "C" for "XC", "G" for "XG" and "H" for "XH".
Specs
| Piston Diameter | 76.95 mm |
| Product Name | Rebuild Kit |
| Bore - Oversize | +4,00 mm |
| Bore - Oversize | +4.00 mm |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Bore Size | 77.00 mm |
| Compression Ratio | 10.5:1 |
| Type | Top End |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | Off-Road |
| Stroke Length | 59.50 mm |
| Displacement | 250 cc |
| Model | Forged Series |
Part Notes
- Cylinder boring required.
- Kit Includes:
- • +4.00 MM Oversize Forged Series Piston
- • Ring Set
- • Wrist Pin
- • Circlips
- • Gaskets
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0570 | PK1223 | Out of Stock |
