Wiseco Forged Series Rebuild Kit - PK1035 Honda XR400R / TRX400EX / TRX400X 1996-2009
Wiseco Forged Series Rebuild Kit - PK1035 Honda XR400R / TRX400EX / TRX400X 1996-2009
Product Details
Features

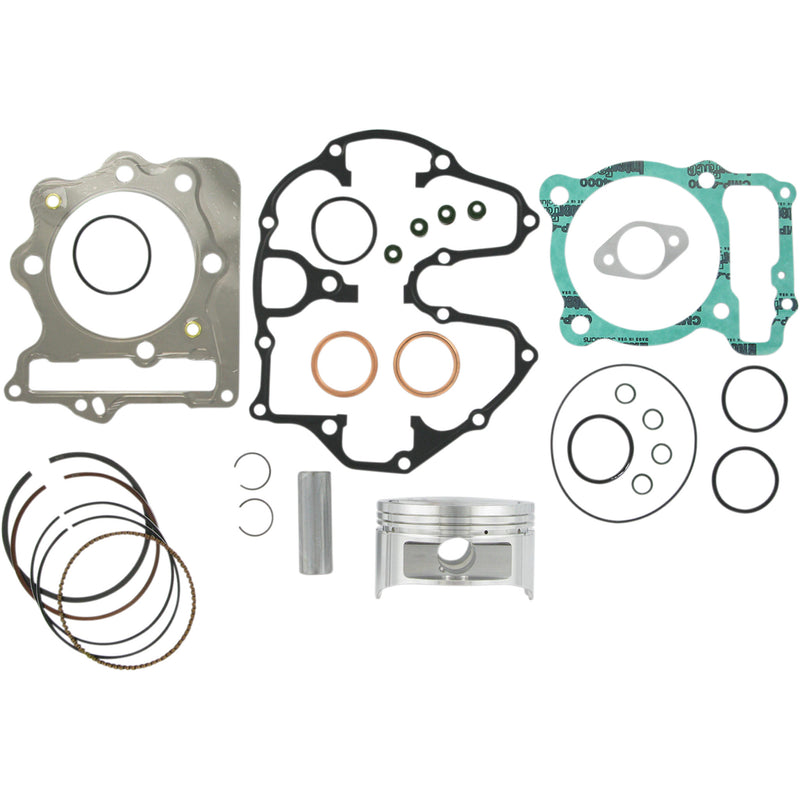

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Bore Size | 88.00 mm |
| Engine Type | 4-Stroke |
| Stroke Length | 70.00 mm |
| Compression Ratio | 10.0:1 |
| Riding Style | Off-Road |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Displacement | 397 cc |
| Type | Top End |
| Units | Kit |
| Piston Diameter | 87.95 mm |
| Model | Forged Series |
| Riding Style | ATV |
| Skirt Coating | Non-Coated |
Part Notes
- Piston is +3.00 mm oversize.
- Kit Includes:
- • Piston Kit #4606M08800
- • Ring Set #3465XC
- • Wrist Pin #S520
- • Wrist Pin Retainer Set #CW20
- • Gasket Kit #W5942
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Bore Size | 88.00 mm |
| Engine Type | 4-Stroke |
| Stroke Length | 70.00 mm |
| Compression Ratio | 10.0:1 |
| Riding Style | Off-Road |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Displacement | 397 cc |
| Type | Top End |
| Units | Kit |
| Piston Diameter | 87.95 mm |
| Model | Forged Series |
| Riding Style | ATV |
| Skirt Coating | Non-Coated |
Part Notes
- Piston is +3.00 mm oversize.
- Kit Includes:
- • Piston Kit #4606M08800
- • Ring Set #3465XC
- • Wrist Pin #S520
- • Wrist Pin Retainer Set #CW20
- • Gasket Kit #W5942
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0484 | PK1035 | Out of Stock |
