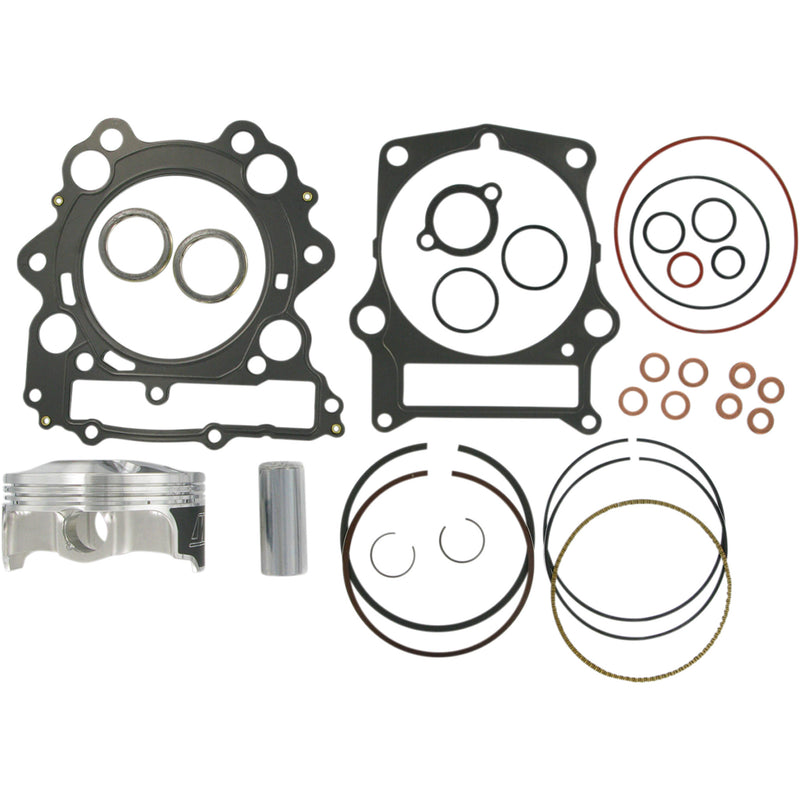

Wiseco Forged Series Rebuild Kit - PK1060 Yamaha YFM660R Raptor 2001-2005
Wiseco Forged Series Rebuild Kit - PK1060 Yamaha YFM660R Raptor 2001-2005
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Model | Forged Series |
| Piston Diameter | 99.92 mm |
| Bore Size | 100.00 mm |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Riding Style | ATV |
| Skirt Coating | ArmorGlide® |
| Units | Kit |
| Stroke Length | 84.00 mm |
| Displacement | 660 cc |
| Type | Top End |
| Compression Ratio | 11.0:1 |
Part Notes
- Kit Includes:
- • Piston Kit #4737M10000
- • Ring Set #3937XS
- • Wrist Pin #S655
- • Wrist Pin Retainer Set #CW22
- • Gasket Kit #W6017
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Model | Forged Series |
| Piston Diameter | 99.92 mm |
| Bore Size | 100.00 mm |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Riding Style | ATV |
| Skirt Coating | ArmorGlide® |
| Units | Kit |
| Stroke Length | 84.00 mm |
| Displacement | 660 cc |
| Type | Top End |
| Compression Ratio | 11.0:1 |
Part Notes
- Kit Includes:
- • Piston Kit #4737M10000
- • Ring Set #3937XS
- • Wrist Pin #S655
- • Wrist Pin Retainer Set #CW22
- • Gasket Kit #W6017
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0357 | PK1060 | In Stock |
