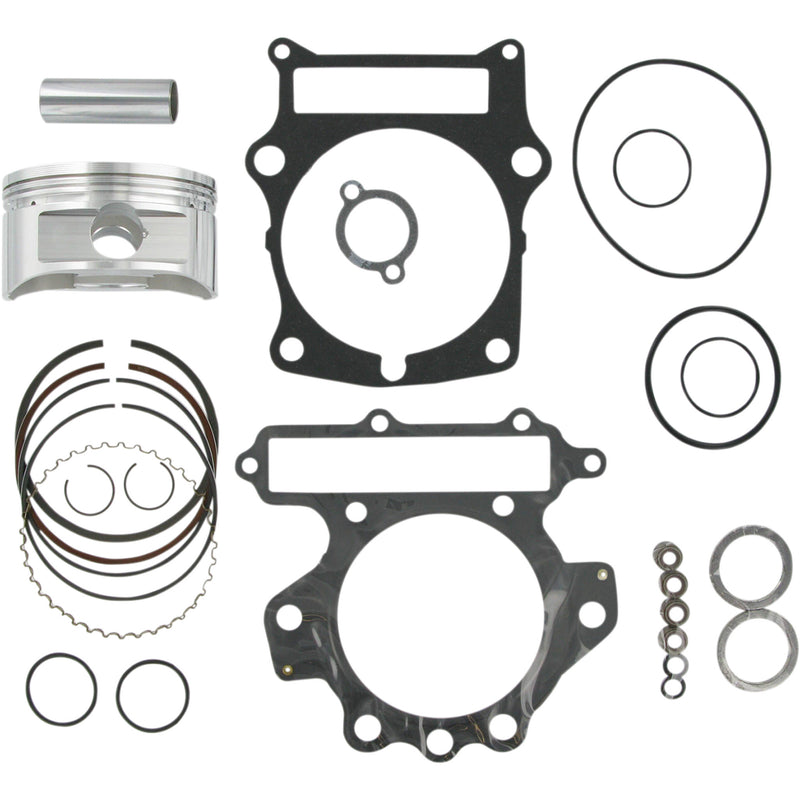

Wiseco Forged Series Rebuild Kit - PK1058 Yamaha YFM600FW Grizzly 4x4 1998-2001
Wiseco Forged Series Rebuild Kit - PK1058 Yamaha YFM600FW Grizzly 4x4 1998-2001
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Engine Type | 4-Stroke |
| Units | Kit |
| Piston Diameter | 95.92 mm |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Bore Size | 96.00 mm |
| Compression Ratio | 8.5:1 |
| Displacement | 598 cc |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Riding Style | ATV |
| Stroke Length | 84.00 mm |
| Type | Top End |
Part Notes
- Piston is +1.00 mm oversize.
- Kit Includes:
- • Piston Kit #4797M09600
- • Ring Set #3780XH
- • Wrist Pin #S566
- • Wrist Pin Retainer Set #CW22
- • Gasket Kit #W5726
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Engine Type | 4-Stroke |
| Units | Kit |
| Piston Diameter | 95.92 mm |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Bore Size | 96.00 mm |
| Compression Ratio | 8.5:1 |
| Displacement | 598 cc |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Riding Style | ATV |
| Stroke Length | 84.00 mm |
| Type | Top End |
Part Notes
- Piston is +1.00 mm oversize.
- Kit Includes:
- • Piston Kit #4797M09600
- • Ring Set #3780XH
- • Wrist Pin #S566
- • Wrist Pin Retainer Set #CW22
- • Gasket Kit #W5726
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0356 | PK1058 | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Engine Type | 4-Stroke |
| Units | Kit |
| Piston Diameter | 95.92 mm |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Bore Size | 96.00 mm |
| Compression Ratio | 8.5:1 |
| Displacement | 598 cc |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Riding Style | ATV |
| Stroke Length | 84.00 mm |
| Type | Top End |
Part Notes
- Piston is +1.00 mm oversize.
- Kit Includes:
- • Piston Kit #4797M09600
- • Ring Set #3780XH
- • Wrist Pin #S566
- • Wrist Pin Retainer Set #CW22
- • Gasket Kit #W5726
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0356 | PK1058 | In Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
