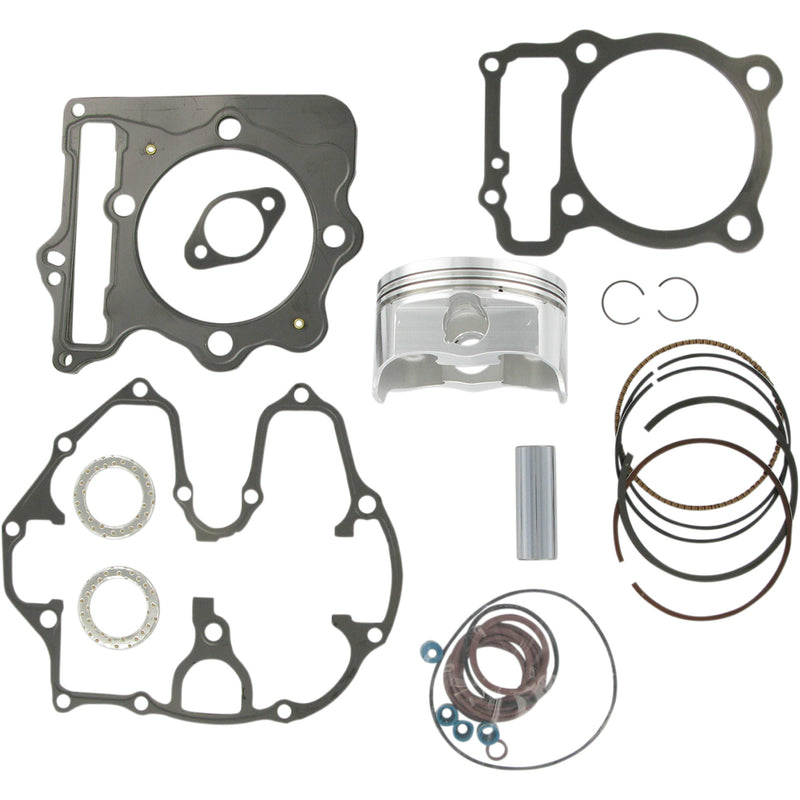

Wiseco Forged Series Rebuild Kit - PK1041 Honda XR400R / TRX400EX / TRX400X 1996-2014
Wiseco Forged Series Rebuild Kit - PK1041 Honda XR400R / TRX400EX / TRX400X 1996-2014
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Skirt Coating | Non-Coated |
| Displacement | 440 cc |
| Piston Material | 2618 Aluminum Alloy |
| Type | Top End |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |
| Riding Style | ATV |
| Units | Kit |
| Model | Forged Series |
| Piston Diameter | 88.95 mm |
| Riding Style | Off-Road |
| Stroke Length | 70.00 mm |
| Bore Size | 89.00 mm |
| Compression Ratio | 11.0:1 |
Part Notes
- Piston is +4.00 mm oversize.
- Cylinder sleeving and boring required.
- Kit Includes:
- • Piston Kit #4667M08900
- • Ring Set #3504XC
- • Wrist Pin #S553
- • Wrist Pin Retainer Set #CW20
- • Gasket Kit #W5942
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Skirt Coating | Non-Coated |
| Displacement | 440 cc |
| Piston Material | 2618 Aluminum Alloy |
| Type | Top End |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |
| Riding Style | ATV |
| Units | Kit |
| Model | Forged Series |
| Piston Diameter | 88.95 mm |
| Riding Style | Off-Road |
| Stroke Length | 70.00 mm |
| Bore Size | 89.00 mm |
| Compression Ratio | 11.0:1 |
Part Notes
- Piston is +4.00 mm oversize.
- Cylinder sleeving and boring required.
- Kit Includes:
- • Piston Kit #4667M08900
- • Ring Set #3504XC
- • Wrist Pin #S553
- • Wrist Pin Retainer Set #CW20
- • Gasket Kit #W5942
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0354 | PK1041 | Out of Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
