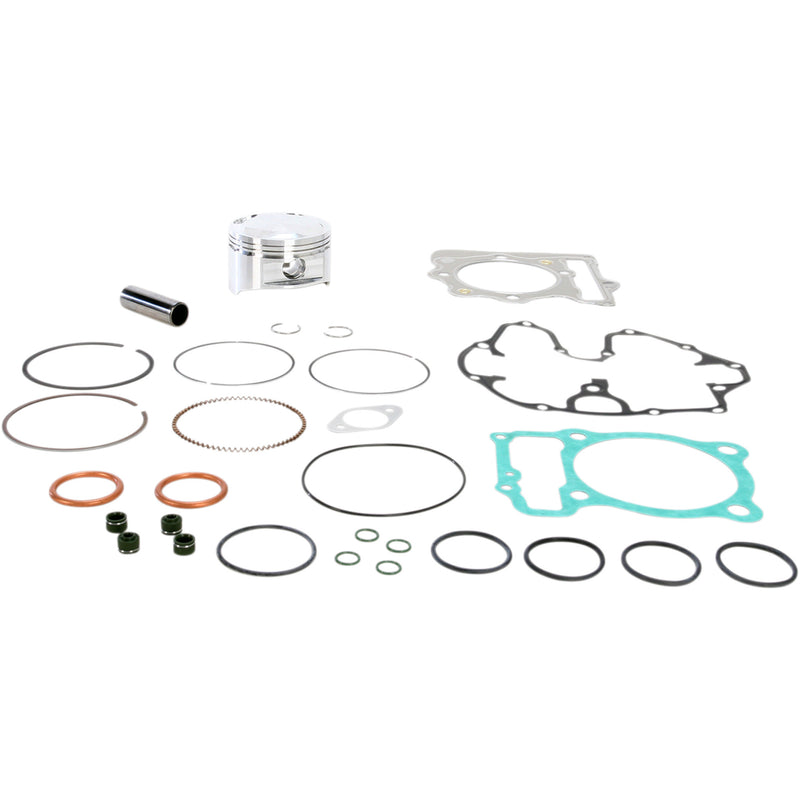

Wiseco Forged Series Rebuild Kit - PK1036 Honda XR400R / TRX400EX / TRX400X 1996-2009
Wiseco Forged Series Rebuild Kit - PK1036 Honda XR400R / TRX400EX / TRX400X 1996-2009
Product Details
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Type | Top End |
| Riding Style | ATV |
| Riding Style | Off-Road |
| Compression Ratio | 11.0:1 |
| Displacement | 397 cc |
| Stroke Length | 70.00 mm |
| Bore Size | 85.00 mm |
| Model | Forged Series |
| Piston Diameter | 84.95 mm |
| Skirt Coating | Non-Coated |
| Engine Type | 4-Stroke |
| Units | Kit |
Part Notes
- Kit Includes:
- • Piston Kit #4628M08500
- • Ring Set #3347XC
- • Wrist Pin #S520
- • Wrist Pin Retainer Set #CW20
- • Gasket Kit #W5514
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Type | Top End |
| Riding Style | ATV |
| Riding Style | Off-Road |
| Compression Ratio | 11.0:1 |
| Displacement | 397 cc |
| Stroke Length | 70.00 mm |
| Bore Size | 85.00 mm |
| Model | Forged Series |
| Piston Diameter | 84.95 mm |
| Skirt Coating | Non-Coated |
| Engine Type | 4-Stroke |
| Units | Kit |
Part Notes
- Kit Includes:
- • Piston Kit #4628M08500
- • Ring Set #3347XC
- • Wrist Pin #S520
- • Wrist Pin Retainer Set #CW20
- • Gasket Kit #W5514
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0353 | PK1036 | Out of Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Type | Top End |
| Riding Style | ATV |
| Riding Style | Off-Road |
| Compression Ratio | 11.0:1 |
| Displacement | 397 cc |
| Stroke Length | 70.00 mm |
| Bore Size | 85.00 mm |
| Model | Forged Series |
| Piston Diameter | 84.95 mm |
| Skirt Coating | Non-Coated |
| Engine Type | 4-Stroke |
| Units | Kit |
Part Notes
- Kit Includes:
- • Piston Kit #4628M08500
- • Ring Set #3347XC
- • Wrist Pin #S520
- • Wrist Pin Retainer Set #CW20
- • Gasket Kit #W5514
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0353 | PK1036 | Out of Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
