Wiseco Forged Series Rebuild Kit - PK1027 Honda TRX300EX 1993-2008
Wiseco Forged Series Rebuild Kit - PK1027 Honda TRX300EX 1993-2008
Product Details
Features

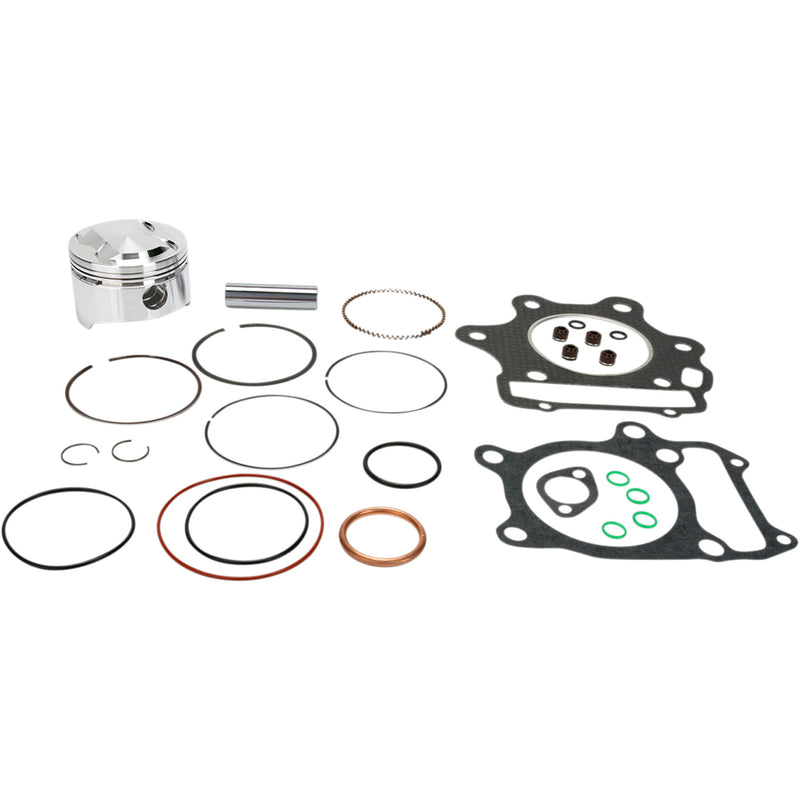

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Engine Type | 4-Stroke |
| Riding Style | ATV |
| Units | Kit |
| Compression Ratio | 11.0:1 |
| Piston Diameter | 74.45 mm |
| Bore Size | 74.50 mm |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Product Name | Rebuild Kit |
| Stroke Length | 65.50 mm |
| Type | Top End |
| Displacement | 282 cc |
| Piston Material | 2618 Aluminum Alloy |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4574M07450
- • Ring Set #2933XC
- • Wrist Pin #S523
- • Wrist Pin Retainer Set #CW17
- • Gasket Kit #W5463
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Engine Type | 4-Stroke |
| Riding Style | ATV |
| Units | Kit |
| Compression Ratio | 11.0:1 |
| Piston Diameter | 74.45 mm |
| Bore Size | 74.50 mm |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Product Name | Rebuild Kit |
| Stroke Length | 65.50 mm |
| Type | Top End |
| Displacement | 282 cc |
| Piston Material | 2618 Aluminum Alloy |
Part Notes
- Piston is +0.50 mm oversize.
- Kit Includes:
- • Piston Kit #4574M07450
- • Ring Set #2933XC
- • Wrist Pin #S523
- • Wrist Pin Retainer Set #CW17
- • Gasket Kit #W5463
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0348 | PK1027 | Out of Stock |
