Wiseco Forged Series Rebuild Kit - PK1017 Honda 350 / TRX350D 1985-1989
Wiseco Forged Series Rebuild Kit - PK1017 Honda 350 / TRX350D 1985-1989
Product Details
Features

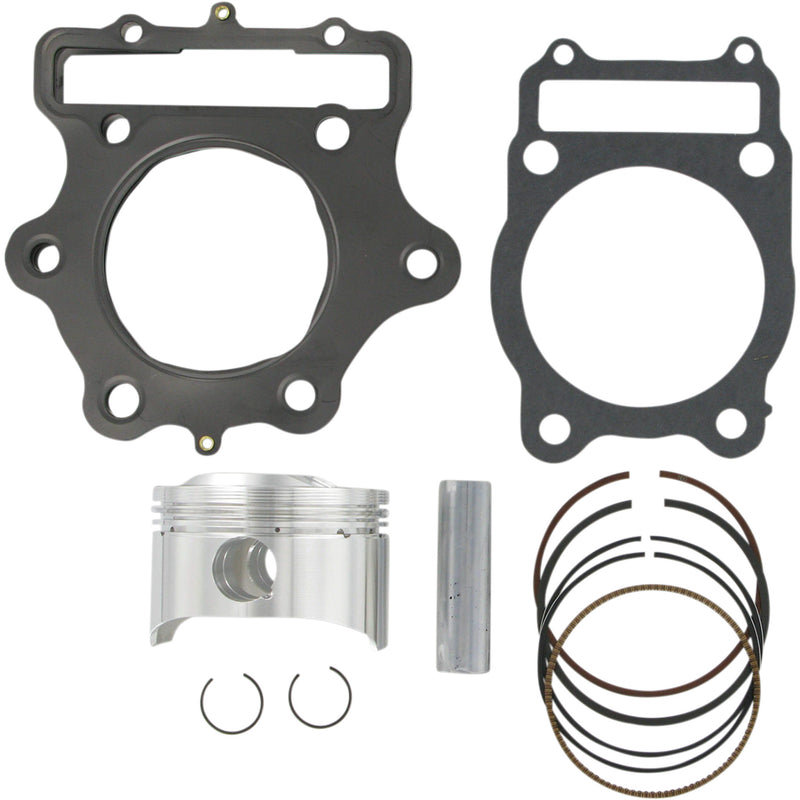

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Riding Style | Off-Road |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Riding Style | ATV |
| Bore Size | 82.00 mm |
| Compression Ratio | 10.25:1 |
| Engine Type | 4-Stroke |
| Piston Diameter | 81.95 mm |
| Type | Top End |
| Units | Kit |
| Displacement | 350.4 cc |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Stroke Length | 68.00 mm |
Part Notes
- Piston is 1.00 mm oversize.
- Kit Includes:
- • Piston Kit #4393M08200
- • Ring Set #3228XG
- • Wrist Pin #S529
- • Wrist Pin Retainer Set #CW21
- • Gasket Kit #W5559
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Riding Style | Off-Road |
| Piston Material | 2618 Aluminum Alloy |
| Product Name | Rebuild Kit |
| Riding Style | ATV |
| Bore Size | 82.00 mm |
| Compression Ratio | 10.25:1 |
| Engine Type | 4-Stroke |
| Piston Diameter | 81.95 mm |
| Type | Top End |
| Units | Kit |
| Displacement | 350.4 cc |
| Model | Forged Series |
| Skirt Coating | Non-Coated |
| Stroke Length | 68.00 mm |
Part Notes
- Piston is 1.00 mm oversize.
- Kit Includes:
- • Piston Kit #4393M08200
- • Ring Set #3228XG
- • Wrist Pin #S529
- • Wrist Pin Retainer Set #CW21
- • Gasket Kit #W5559
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0323 | PK1017 | Out of Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
