WISECO 0903-0317 PK1015 High-Performance Piston Kit with Gaskets for 4-Stroke Piston Kit with Gaskets - 81.00 mm - Honda
WISECO 0903-0317 PK1015 High-Performance Piston Kit with Gaskets for 4-Stroke Piston Kit with Gaskets - 81.00 mm - Honda
Product Details
Features

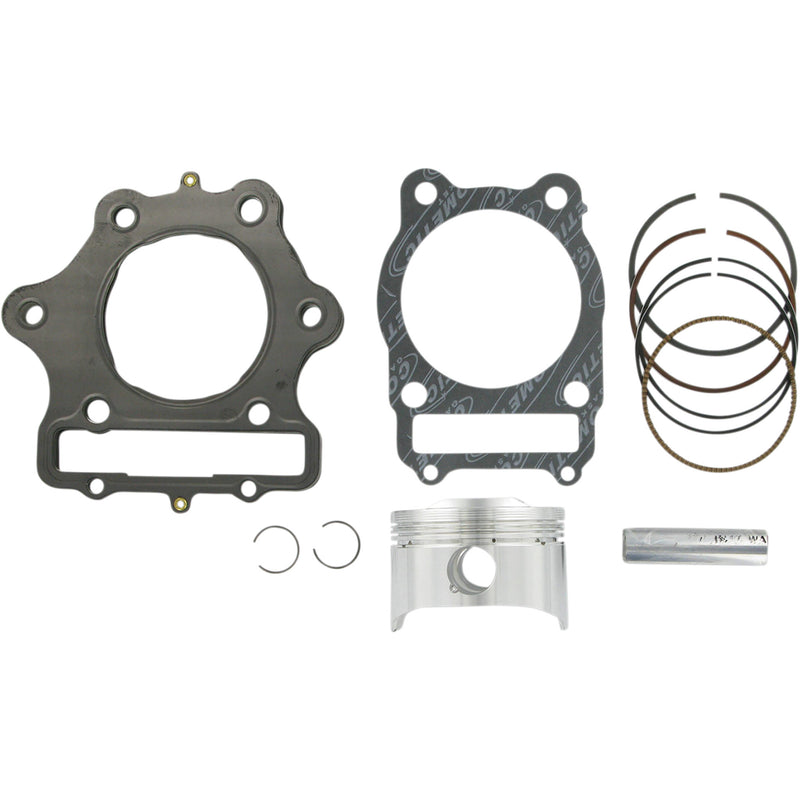

- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Compression Ratio | 10.25:1 |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | ATV |
| Piston Diameter | 80.95 mm |
| Riding Style | Off-Road |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Bore Size | 81.00 mm |
| Displacement | 350.4 cc |
| Model | Forged Series |
| Stroke Length | 68.00 mm |
| Type | Top End |
Part Notes
- Kit Includes:
- • Piston Kit #4393M08100
- • Ring Set #31089XG
- • Wrist Pin #S529
- • Wrist Pin Retainer Set #CW21
- • Gasket Kit #W5559
Features
- Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Compression Ratio | 10.25:1 |
| Product Name | Rebuild Kit |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | ATV |
| Piston Diameter | 80.95 mm |
| Riding Style | Off-Road |
| Skirt Coating | Non-Coated |
| Units | Kit |
| Bore Size | 81.00 mm |
| Displacement | 350.4 cc |
| Model | Forged Series |
| Stroke Length | 68.00 mm |
| Type | Top End |
Part Notes
- Kit Includes:
- • Piston Kit #4393M08100
- • Ring Set #31089XG
- • Wrist Pin #S529
- • Wrist Pin Retainer Set #CW21
- • Gasket Kit #W5559
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0903-0317 | PK1015 | Out of Stock |
