S&S Cycle
S&S Cycle 540 Big Bore Torque Camchest Kit - 310-1118A For Harley Motorcycles 2017-2023
MPN:
310-1118A
SKU:
0925-1363
S&S Cycle
S&S Cycle 540 Big Bore Torque Camchest Kit - 310-1118A For Harley Motorcycles 2017-2023
MPN:
310-1118A
SKU:
0925-1363
Availability:
Only 1 left!
Oil Pump/Cam Plate:
Precision machined from billet aluminum
Blue anodized finish
Passage plugs removable for servicing
Independant scavenge sections for flywheel cavity and cam chest
Debris screens in both pickups
Magnet in cam chest to help stop debris from entering oil pump
Increased flow capacity on both feed and scavenge side
Adjustable pressure relief vale is adjustable with unit installed in engine
Includes S&S high performance cam chain tensioner
Pushrods:
Quickee pushrods
Tappets:
S&S precision tappets
Tappet Cuffs:
Hard anodized black coating
Billet aluminum construction
Stronger than stock material eliminates distortion
Improves tappet stability in high lift and high rpm situations
Cam:
Includes all gaskets, bearings and hardware for installation
Made in the USA
Specs
Intake Lift at TDC
0.175" Front, 0.161" Rear
Intake Lift
0.540"
Riding Style
Street
Application
Oil Cooled
Exhaust Lift at TDC
0.262" Front, 0.216" Rear
Model
540 Big Bore Torque
Units
Kit
Exhaust Close
33.9° Front, 26.9° Rear
Exhaust Duration
235.1° Front, 244.6° Rear
Type
Chain
Exhaust Open
21.2° Front, 37.7° Rear
Features
Chrome Pushrod Tubes
Intake Duration
228.3° Front, 223.6° Rear
Intake Lobe Centerline
96.4° Front, 96.9° Rear
Intake Open
17.7° Front, 14.9° Rear
Exhaust Lobe Centerline
83.6° Front, 95.4° Rear
Intake Close
30.6° Front, 28.7° Rear
Product Name
Camchest Kit
Grind
540C
Exhaust Lift
0.540"
Part Notes
540 cam is designed for acceleration torque in 124" and larger engines.
Enhances torque output for 4.25" big bore kits.

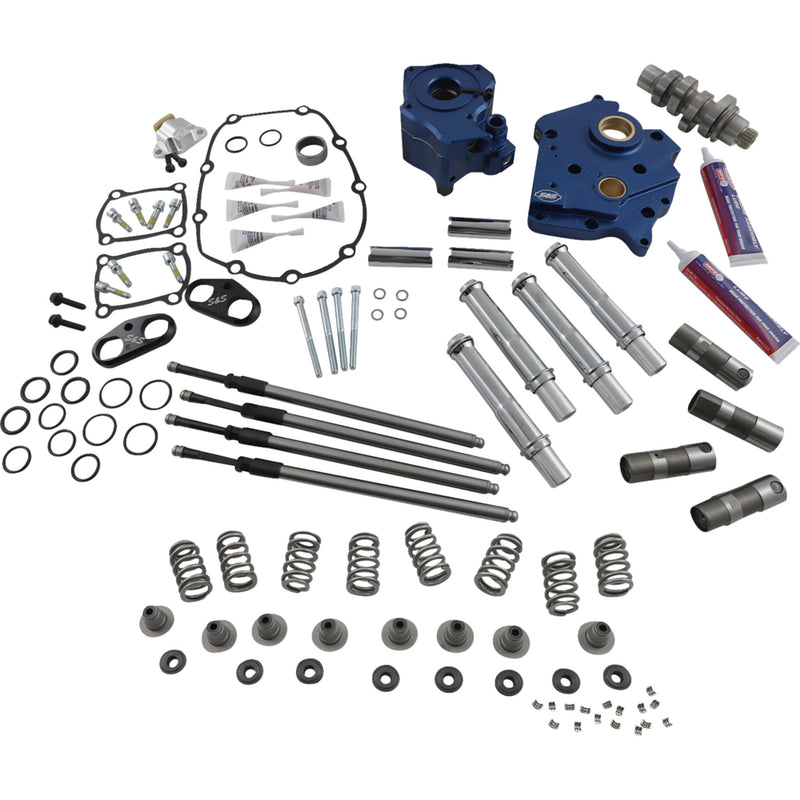

Kit Includes:
• Oil Pump Screw Kit
• Cam Chain Installation Kit
• Quickee Pushrod Kit with Chrome Covers
• Tappet Cuffs Lifter Guide
• 3" S&S® Blue and White Logo Decal
• Cam Plate Support Assembly
• Oil Cooled Oil Pump Assembly
• Hydraulic Precision Tappet Set
• 540C Camshaft
• Spring Kit
• Cam Chain Tensioner
• 1 oz Torco® Engine Assembly Lube
Original price
$1,721.95
-
Original price
$1,721.95
Original price
$1,721.95
$1,721.95
-
$1,721.95
Current price
$1,721.95
Product Details
Features
- Oil Pump/Cam Plate:
- Precision machined from billet aluminum
- Blue anodized finish
- Passage plugs removable for servicing
- Independant scavenge sections for flywheel cavity and cam chest
- Debris screens in both pickups
- Magnet in cam chest to help stop debris from entering oil pump
- Increased flow capacity on both feed and scavenge side
- Adjustable pressure relief vale is adjustable with unit installed in engine
- Includes S&S high performance cam chain tensioner
- Pushrods:
- Quickee pushrods
- Tappets:
- S&S precision tappets
- Tappet Cuffs:
- Hard anodized black coating
- Billet aluminum construction
- Stronger than stock material eliminates distortion
- Improves tappet stability in high lift and high rpm situations
- Cam:
- Includes all gaskets, bearings and hardware for installation
- Made in the USA
Specs
| Intake Lift at TDC | 0.175" Front, 0.161" Rear |
| Intake Lift | 0.540" |
| Riding Style | Street |
| Application | Oil Cooled |
| Exhaust Lift at TDC | 0.262" Front, 0.216" Rear |
| Model | 540 Big Bore Torque |
| Units | Kit |
| Exhaust Close | 33.9° Front, 26.9° Rear |
| Exhaust Duration | 235.1° Front, 244.6° Rear |
| Type | Chain |
| Exhaust Open | 21.2° Front, 37.7° Rear |
| Features | Chrome Pushrod Tubes |
| Intake Duration | 228.3° Front, 223.6° Rear |
| Intake Lobe Centerline | 96.4° Front, 96.9° Rear |
| Intake Open | 17.7° Front, 14.9° Rear |
| Exhaust Lobe Centerline | 83.6° Front, 95.4° Rear |
| Intake Close | 30.6° Front, 28.7° Rear |
| Product Name | Camchest Kit |
| Grind | 540C |
| Exhaust Lift | 0.540" |
Part Notes
- 540 cam is designed for acceleration torque in 124" and larger engines.
- Enhances torque output for 4.25" big bore kits.
- Kit Includes:
- • Oil Pump Screw Kit
- • Cam Chain Installation Kit
- • Quickee Pushrod Kit with Chrome Covers
- • Tappet Cuffs Lifter Guide
- • 3" S&S® Blue and White Logo Decal
- • Cam Plate Support Assembly
- • Oil Cooled Oil Pump Assembly
- • Hydraulic Precision Tappet Set
- • 540C Camshaft
- • Spring Kit
- • Cam Chain Tensioner
- • 1 oz Torco® Engine Assembly Lube
Features
- Oil Pump/Cam Plate:
- Precision machined from billet aluminum
- Blue anodized finish
- Passage plugs removable for servicing
- Independant scavenge sections for flywheel cavity and cam chest
- Debris screens in both pickups
- Magnet in cam chest to help stop debris from entering oil pump
- Increased flow capacity on both feed and scavenge side
- Adjustable pressure relief vale is adjustable with unit installed in engine
- Includes S&S high performance cam chain tensioner
- Pushrods:
- Quickee pushrods
- Tappets:
- S&S precision tappets
- Tappet Cuffs:
- Hard anodized black coating
- Billet aluminum construction
- Stronger than stock material eliminates distortion
- Improves tappet stability in high lift and high rpm situations
- Cam:
- Includes all gaskets, bearings and hardware for installation
- Made in the USA
Specs
| Intake Lift at TDC | 0.175" Front, 0.161" Rear |
| Intake Lift | 0.540" |
| Riding Style | Street |
| Application | Oil Cooled |
| Exhaust Lift at TDC | 0.262" Front, 0.216" Rear |
| Model | 540 Big Bore Torque |
| Units | Kit |
| Exhaust Close | 33.9° Front, 26.9° Rear |
| Exhaust Duration | 235.1° Front, 244.6° Rear |
| Type | Chain |
| Exhaust Open | 21.2° Front, 37.7° Rear |
| Features | Chrome Pushrod Tubes |
| Intake Duration | 228.3° Front, 223.6° Rear |
| Intake Lobe Centerline | 96.4° Front, 96.9° Rear |
| Intake Open | 17.7° Front, 14.9° Rear |
| Exhaust Lobe Centerline | 83.6° Front, 95.4° Rear |
| Intake Close | 30.6° Front, 28.7° Rear |
| Product Name | Camchest Kit |
| Grind | 540C |
| Exhaust Lift | 0.540" |
Part Notes
- 540 cam is designed for acceleration torque in 124" and larger engines.
- Enhances torque output for 4.25" big bore kits.
- Kit Includes:
- • Oil Pump Screw Kit
- • Cam Chain Installation Kit
- • Quickee Pushrod Kit with Chrome Covers
- • Tappet Cuffs Lifter Guide
- • 3" S&S® Blue and White Logo Decal
- • Cam Plate Support Assembly
- • Oil Cooled Oil Pump Assembly
- • Hydraulic Precision Tappet Set
- • 540C Camshaft
- • Spring Kit
- • Cam Chain Tensioner
- • 1 oz Torco® Engine Assembly Lube
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1363 | 310-1118A | In Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
