S&S Cycle
S&S Cycle 475 HP Camchest Kit - 310-1010A For Harley Motorcycles 2017-2023
MPN:
310-1010A
SKU:
0925-1308
S&S Cycle
S&S Cycle 475 HP Camchest Kit - 310-1010A For Harley Motorcycles 2017-2023
MPN:
310-1010A
SKU:
0925-1308
Availability:
Only 3 left!
All parts in each kit are matched to ensure superior quality, fit, finish and performance
Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and scavenge sides
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Magnet in cam chest to help to stop debris from entering oil pump
S&S Quickee Pushrods with finished pushrod tubes
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
Improved tappet stability in high-lift and high-rpm situations
Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
Made in the USA
Specs
Application
Water Cooled
Exhaust Duration
263.9° Front, 252.5° Rear
Riding Style
Street
Intake Lift at TDC
0.107" Front, 0.093" Rear
Features
Gloss Black Pushrod Tubes
Intake Open
6.2° Front, 2.2° Rear
Model
475 HP
Grind
475G
Intake Lift
0.475"
Intake Lobe Centerline
100.5° Front, 104.5° Rear
Exhaust Close
28.5° Front, 20.2° Rear
Exhaust Lift at TDC
0.208" Front, 0.170" Rear
Intake Duration
213.5° Front, 213.5° Rear
Intake Close
27.2° Front, 31.2° Rear
Product Name
Camchest Kit
Type
Gear
Exhaust Open
55.5° Front, 52.2° Rear
Exhaust Lift
0.475"
Exhaust Lobe Centerline
103.5° Front, 106.0° Rear
Units
Kit
Part Notes
475 is bolt-in 100 horsepower cam.

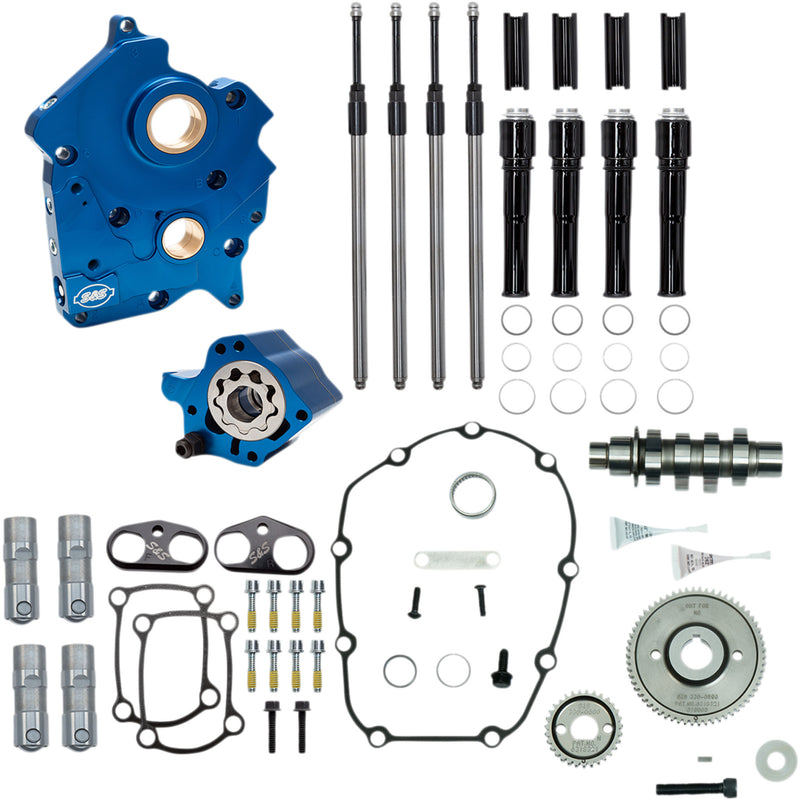

Kit Includes:
• 475G Camshaft Kit
• Quickee Pushrod Kit with Gloss Black Covers
• Tappet Cuffs Lifter Guide
• Oil Pump with Cam Plate
• Hydraulic Tappet Kit
Original price
$1,924.95
-
Original price
$1,924.95
Original price
$1,924.95
$1,924.95
-
$1,924.95
Current price
$1,924.95
Product Details
Features
- All parts in each kit are matched to ensure superior quality, fit, finish and performance
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and scavenge sides
- Adjustable Pressure Relief Valve is adjustable with unit installed in engine
- Magnet in cam chest to help to stop debris from entering oil pump
- S&S Quickee Pushrods with finished pushrod tubes
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
- Improved tappet stability in high-lift and high-rpm situations
- Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
- Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
- Made in the USA
Specs
| Application | Water Cooled |
| Exhaust Duration | 263.9° Front, 252.5° Rear |
| Riding Style | Street |
| Intake Lift at TDC | 0.107" Front, 0.093" Rear |
| Features | Gloss Black Pushrod Tubes |
| Intake Open | 6.2° Front, 2.2° Rear |
| Model | 475 HP |
| Grind | 475G |
| Intake Lift | 0.475" |
| Intake Lobe Centerline | 100.5° Front, 104.5° Rear |
| Exhaust Close | 28.5° Front, 20.2° Rear |
| Exhaust Lift at TDC | 0.208" Front, 0.170" Rear |
| Intake Duration | 213.5° Front, 213.5° Rear |
| Intake Close | 27.2° Front, 31.2° Rear |
| Product Name | Camchest Kit |
| Type | Gear |
| Exhaust Open | 55.5° Front, 52.2° Rear |
| Exhaust Lift | 0.475" |
| Exhaust Lobe Centerline | 103.5° Front, 106.0° Rear |
| Units | Kit |
Part Notes
- 475 is bolt-in 100 horsepower cam.
- Kit Includes:
- • 475G Camshaft Kit
- • Quickee Pushrod Kit with Gloss Black Covers
- • Tappet Cuffs Lifter Guide
- • Oil Pump with Cam Plate
- • Hydraulic Tappet Kit
Features
- All parts in each kit are matched to ensure superior quality, fit, finish and performance
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and scavenge sides
- Adjustable Pressure Relief Valve is adjustable with unit installed in engine
- Magnet in cam chest to help to stop debris from entering oil pump
- S&S Quickee Pushrods with finished pushrod tubes
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
- Improved tappet stability in high-lift and high-rpm situations
- Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
- Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
- Made in the USA
Specs
| Application | Water Cooled |
| Exhaust Duration | 263.9° Front, 252.5° Rear |
| Riding Style | Street |
| Intake Lift at TDC | 0.107" Front, 0.093" Rear |
| Features | Gloss Black Pushrod Tubes |
| Intake Open | 6.2° Front, 2.2° Rear |
| Model | 475 HP |
| Grind | 475G |
| Intake Lift | 0.475" |
| Intake Lobe Centerline | 100.5° Front, 104.5° Rear |
| Exhaust Close | 28.5° Front, 20.2° Rear |
| Exhaust Lift at TDC | 0.208" Front, 0.170" Rear |
| Intake Duration | 213.5° Front, 213.5° Rear |
| Intake Close | 27.2° Front, 31.2° Rear |
| Product Name | Camchest Kit |
| Type | Gear |
| Exhaust Open | 55.5° Front, 52.2° Rear |
| Exhaust Lift | 0.475" |
| Exhaust Lobe Centerline | 103.5° Front, 106.0° Rear |
| Units | Kit |
Part Notes
- 475 is bolt-in 100 horsepower cam.
- Kit Includes:
- • 475G Camshaft Kit
- • Quickee Pushrod Kit with Gloss Black Covers
- • Tappet Cuffs Lifter Guide
- • Oil Pump with Cam Plate
- • Hydraulic Tappet Kit
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1308 | 310-1010A | In Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
