S&S Cycle 475 HP Camchest Kit - 310-1006A For Harley Motorcycles 2017-2023
MPN:
310-1006A
SKU:
0925-1304
S&S Cycle
S&S Cycle 475 HP Camchest Kit - 310-1006A For Harley Motorcycles 2017-2023
MPN:
310-1006A
SKU:
0925-1304
Availability:
Only 4 left!
All parts in each kit are matched to ensure superior quality, fit, finish and performance
Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and scavenge sides
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Magnet in cam chest to help to stop debris from entering oil pump
S&S Quickee Pushrods with finished pushrod tubes
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
Improved tappet stability in high-lift and high-rpm situations
Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
Made in the USA
Specs
Exhaust Duration
263.9° Front, 252.5° Rear
Exhaust Lift
0.475"
Exhaust Lobe Centerline
103.5° Front, 106.0° Rear
Intake Lift at TDC
0.107" Front, 0.093" Rear
Intake Lobe Centerline
100.5° Front, 104.5° Rear
Model
475 HP
Exhaust Close
28.5° Front, 20.2° Rear
Intake Lift
0.475"
Product Name
Camchest Kit
Exhaust Lift at TDC
0.208" Front, 0.170" Rear
Exhaust Open
55.5° Front, 52.2° Rear
Features
Chrome Pushrod Tubes
Intake Duration
213.5° Front, 213.5° Rear
Grind
475G
Intake Close
27.2° Front, 31.2° Rear
Type
Gear
Application
Oil Cooled
Intake Open
6.2° Front, 2.2° Rear
Riding Style
Street
Units
Kit
Part Notes
475 is a bolt-in 100 horsepower cam.

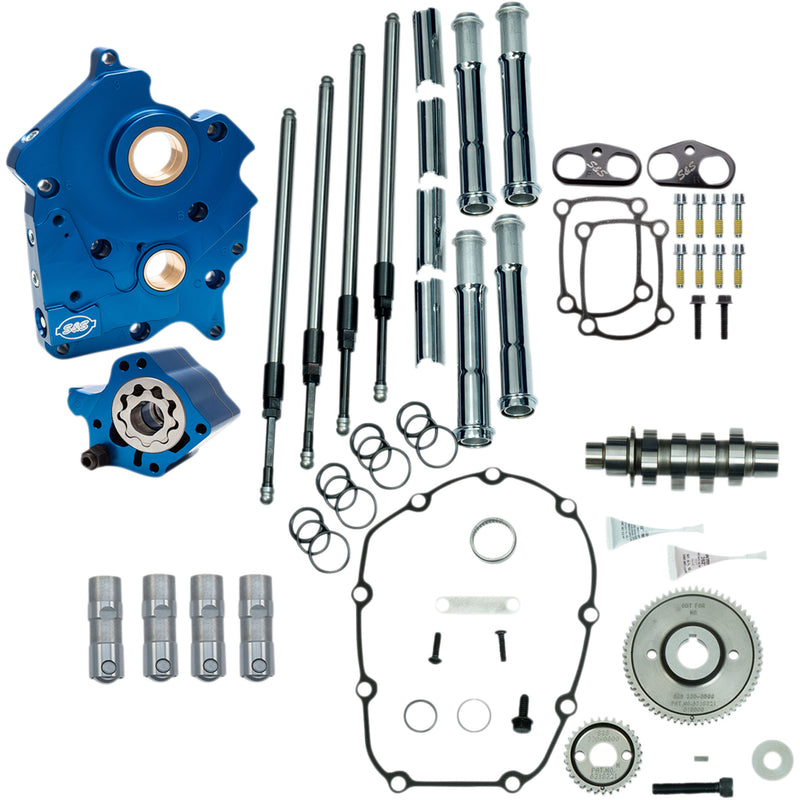

Kit Includes:
• Oil Pump Screw Kit
• 475G Camshaft
• Cam Drive Gear Kit
• 31 Tooth Pinion Gear
• Camshaft Installation Kit
• Quickee Pushrod Kit with Chrome Covers
• Tappet Cuffs Lifter Guide
• 3" S&S® Blue and White Logo Decal
• Cam Plate Support Assembly
• Oil Cooled Oil Pump Assembly
• Hydraulic Precision Tappet Set
• 1 oz Torco® Engine Assembly Lube
