S&S Cycle 475 HP Camchest Kit - 310-1002A For Harley Motorcycles 2017-2023
MPN:
310-1002A
SKU:
0925-1300
S&S Cycle
S&S Cycle 475 HP Camchest Kit - 310-1002A For Harley Motorcycles 2017-2023
MPN:
310-1002A
SKU:
0925-1300
Availability:
Only 3 left!
All parts in each kit are matched to ensure superior quality, fit, finish and performance
Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and scavenge sides
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Magnet in cam chest to help to stop debris from entering oil pump
S&S Quickee Pushrods with finished pushrod tubes
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
Improved tappet stability in high-lift and high-rpm situations
Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
Made in the USA
Specs
Exhaust Lift at TDC
0.208" Front, 0.170" Rear
Intake Duration
213.5° Front, 213.5° Rear
Intake Open
6.2° Front, 2.2° Rear
Exhaust Close
28.5° Front, 20.2° Rear
Model
475 HP
Intake Lift at TDC
0.107" Front, 0.093" Rear
Exhaust Duration
263.9° Front, 252.5° Rear
Features
Chrome Pushrod Tubes
Application
Water Cooled
Riding Style
Street
Intake Close
27.2° Front, 31.2° Rear
Type
Gear
Exhaust Lift
0.475"
Exhaust Lobe Centerline
103.5° Front, 106.0° Rear
Exhaust Open
55.5° Front, 52.2° Rear
Product Name
Camchest Kit
Units
Kit
Grind
475G
Intake Lift
0.475"
Intake Lobe Centerline
100.5° Front, 104.5° Rear
Part Notes
475 is a bolt-in 100 horsepower cam.

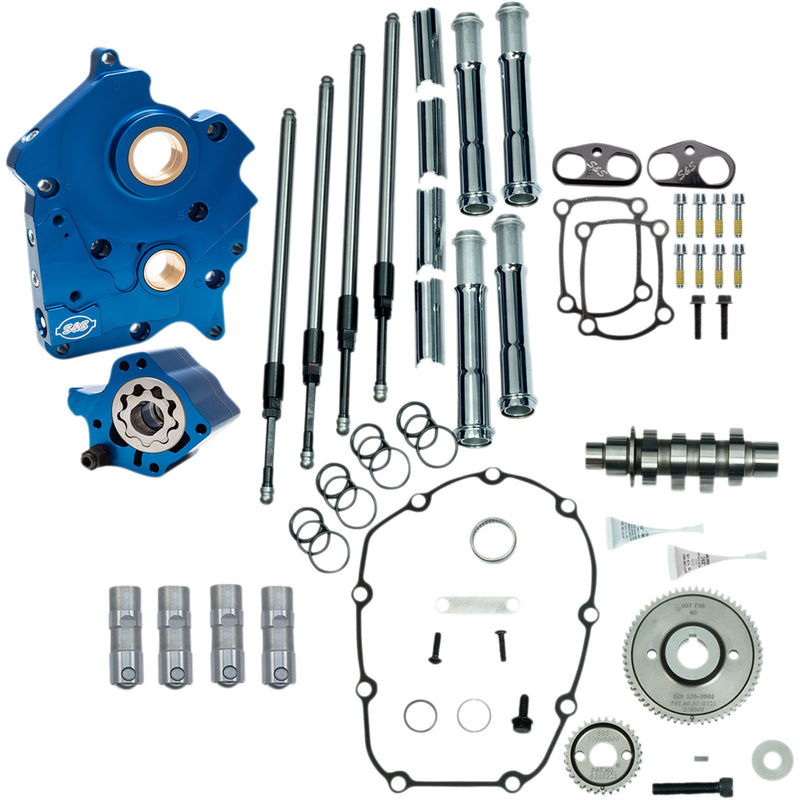

Kit Includes:
• 475G Camshaft Kit
• Quickee Pushrod Kit with Chrome Covers
• Tappet Cuffs Lifter Guide
• Oil Pump with Cam Plate
• Hydraulic Tappet Set
Original price
$1,924.95
-
Original price
$1,924.95
Original price
$1,924.95
$1,924.95
-
$1,924.95
Current price
$1,924.95
Product Details
Features
- All parts in each kit are matched to ensure superior quality, fit, finish and performance
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and scavenge sides
- Adjustable Pressure Relief Valve is adjustable with unit installed in engine
- Magnet in cam chest to help to stop debris from entering oil pump
- S&S Quickee Pushrods with finished pushrod tubes
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
- Improved tappet stability in high-lift and high-rpm situations
- Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
- Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
- Made in the USA
Specs
| Exhaust Lift at TDC | 0.208" Front, 0.170" Rear |
| Intake Duration | 213.5° Front, 213.5° Rear |
| Intake Open | 6.2° Front, 2.2° Rear |
| Exhaust Close | 28.5° Front, 20.2° Rear |
| Model | 475 HP |
| Intake Lift at TDC | 0.107" Front, 0.093" Rear |
| Exhaust Duration | 263.9° Front, 252.5° Rear |
| Features | Chrome Pushrod Tubes |
| Application | Water Cooled |
| Riding Style | Street |
| Intake Close | 27.2° Front, 31.2° Rear |
| Type | Gear |
| Exhaust Lift | 0.475" |
| Exhaust Lobe Centerline | 103.5° Front, 106.0° Rear |
| Exhaust Open | 55.5° Front, 52.2° Rear |
| Product Name | Camchest Kit |
| Units | Kit |
| Grind | 475G |
| Intake Lift | 0.475" |
| Intake Lobe Centerline | 100.5° Front, 104.5° Rear |
Part Notes
- 475 is a bolt-in 100 horsepower cam.
- Kit Includes:
- • 475G Camshaft Kit
- • Quickee Pushrod Kit with Chrome Covers
- • Tappet Cuffs Lifter Guide
- • Oil Pump with Cam Plate
- • Hydraulic Tappet Set
Features
- All parts in each kit are matched to ensure superior quality, fit, finish and performance
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and scavenge sides
- Adjustable Pressure Relief Valve is adjustable with unit installed in engine
- Magnet in cam chest to help to stop debris from entering oil pump
- S&S Quickee Pushrods with finished pushrod tubes
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
- Improved tappet stability in high-lift and high-rpm situations
- Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
- Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
- Made in the USA
Specs
| Exhaust Lift at TDC | 0.208" Front, 0.170" Rear |
| Intake Duration | 213.5° Front, 213.5° Rear |
| Intake Open | 6.2° Front, 2.2° Rear |
| Exhaust Close | 28.5° Front, 20.2° Rear |
| Model | 475 HP |
| Intake Lift at TDC | 0.107" Front, 0.093" Rear |
| Exhaust Duration | 263.9° Front, 252.5° Rear |
| Features | Chrome Pushrod Tubes |
| Application | Water Cooled |
| Riding Style | Street |
| Intake Close | 27.2° Front, 31.2° Rear |
| Type | Gear |
| Exhaust Lift | 0.475" |
| Exhaust Lobe Centerline | 103.5° Front, 106.0° Rear |
| Exhaust Open | 55.5° Front, 52.2° Rear |
| Product Name | Camchest Kit |
| Units | Kit |
| Grind | 475G |
| Intake Lift | 0.475" |
| Intake Lobe Centerline | 100.5° Front, 104.5° Rear |
Part Notes
- 475 is a bolt-in 100 horsepower cam.
- Kit Includes:
- • 475G Camshaft Kit
- • Quickee Pushrod Kit with Chrome Covers
- • Tappet Cuffs Lifter Guide
- • Oil Pump with Cam Plate
- • Hydraulic Tappet Set
| Store SKU | MFR. Product # | Availability |
|---|---|---|
