S&S Cycle Camshaft Kit - 330-0328 For Harley Motorcycles 2006-2017
S&S Cycle Camshaft Kit - 330-0328 For Harley Motorcycles 2006-2017
Product Details
Features
- High lift camshaft for modified engines with 106" or greater displacement and compression ratios between 10.0:1 to 11.0:1
- Works with stock, unported heads, but S&S CNC ported heads are recommended
- Best power from 3000-600 rpm
- This is not a bolt in camshaft kit

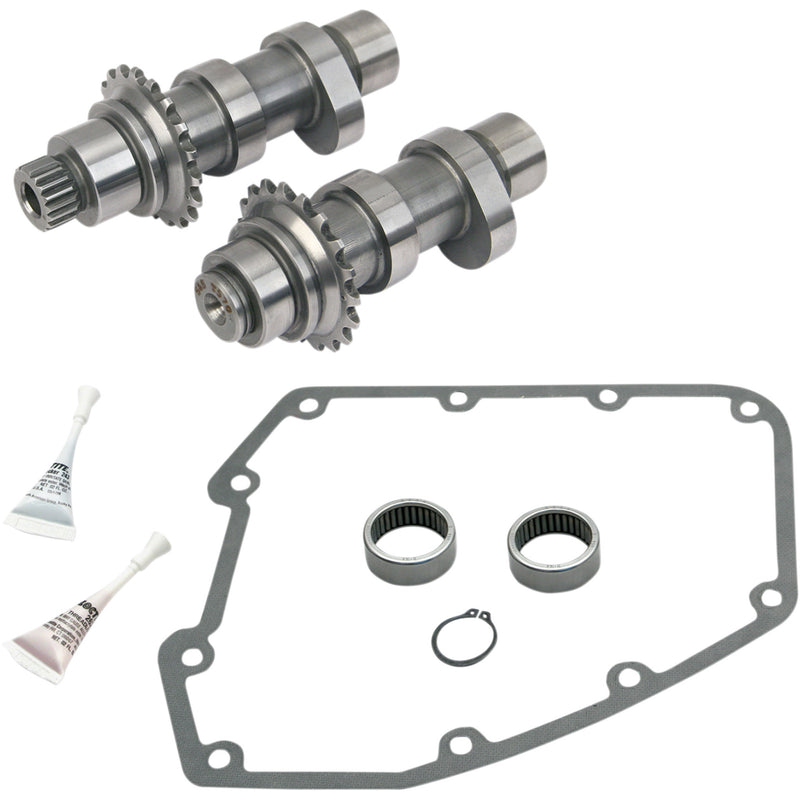

- Kit includes camshafts, bearings, gearcover gasket, retaining ring, o-ring, thread lock and instructions
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance
Specs
| Product Name | Camshaft Kit |
| Type | Chain |
| Application | Intake / Exhaust |
| Color/Finish | Raw |
| Grind | 635HO |
| Intake Open | 19.5° |
| Intake Lift | 0.635" |
| Intake Duration | 243° |
| Intake Lobe Centerline | 102° |
| Intake Close | 43.5° |
| Exhaust Lift | 0.635" |
| Exhaust Duration | 276° |
| Exhaust Lobe Centerline | 100.5° |
| Exhaust Lift at TDC | 0.284" |
| Exhaust Open | 58.5° |
| Exhaust Close | 37.5° |
| Units | Kit |
| Riding Style | Street |
Features
- High lift camshaft for modified engines with 106" or greater displacement and compression ratios between 10.0:1 to 11.0:1
- Works with stock, unported heads, but S&S CNC ported heads are recommended
- Best power from 3000-600 rpm
- This is not a bolt in camshaft kit
- Kit includes camshafts, bearings, gearcover gasket, retaining ring, o-ring, thread lock and instructions
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance
Specs
| Product Name | Camshaft Kit |
| Type | Chain |
| Application | Intake / Exhaust |
| Color/Finish | Raw |
| Grind | 635HO |
| Intake Open | 19.5° |
| Intake Lift | 0.635" |
| Intake Duration | 243° |
| Intake Lobe Centerline | 102° |
| Intake Close | 43.5° |
| Exhaust Lift | 0.635" |
| Exhaust Duration | 276° |
| Exhaust Lobe Centerline | 100.5° |
| Exhaust Lift at TDC | 0.284" |
| Exhaust Open | 58.5° |
| Exhaust Close | 37.5° |
| Units | Kit |
| Riding Style | Street |
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-0836 | 330-0328 | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- High lift camshaft for modified engines with 106" or greater displacement and compression ratios between 10.0:1 to 11.0:1
- Works with stock, unported heads, but S&S CNC ported heads are recommended
- Best power from 3000-600 rpm
- This is not a bolt in camshaft kit
- Kit includes camshafts, bearings, gearcover gasket, retaining ring, o-ring, thread lock and instructions
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance
Specs
| Product Name | Camshaft Kit |
| Type | Chain |
| Application | Intake / Exhaust |
| Color/Finish | Raw |
| Grind | 635HO |
| Intake Open | 19.5° |
| Intake Lift | 0.635" |
| Intake Duration | 243° |
| Intake Lobe Centerline | 102° |
| Intake Close | 43.5° |
| Exhaust Lift | 0.635" |
| Exhaust Duration | 276° |
| Exhaust Lobe Centerline | 100.5° |
| Exhaust Lift at TDC | 0.284" |
| Exhaust Open | 58.5° |
| Exhaust Close | 37.5° |
| Units | Kit |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-0836 | 330-0328 | In Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
