S&S Cycle

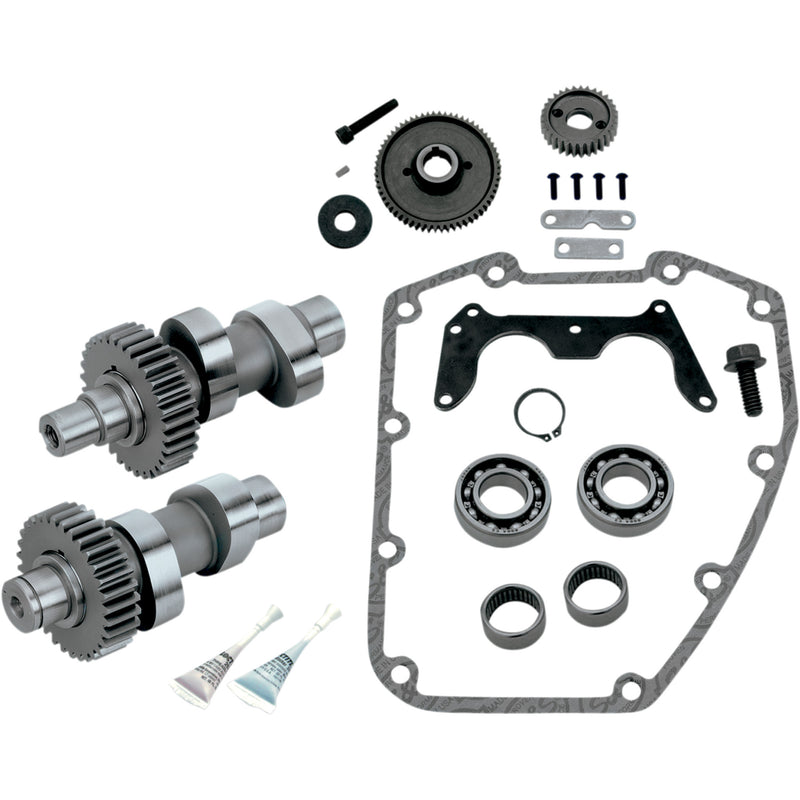

S&S Cycle Camshaft Kit - 330-0107 For Harley Motorcycles 1999-2006
MPN:
330-0107
SKU:
0925-0744
S&S Cycle
S&S Cycle Camshaft Kit - 330-0107 For Harley Motorcycles 1999-2006
MPN:
330-0107
SKU:
0925-0744
Availability:
Only 3 left!
Original price
$948.95
-
Original price
$948.95
Original price
$948.95
$948.95
-
$948.95
Current price
$948.95
Product Details
Features
- Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes, making higher cam lifts possible
- Increase valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
- Provides strong low end torque and horsepower
- Strongest from 1500-5000 rpm
- Material must be removed from inner surface of the stock gear cover to install
- A hydraulic press and other professional level tools are required for installation
- Cam bearings and gaskets must be replaced
- S&S recommends that adjustable pushrod/cover kit be used (sold separately)
- Kit includes camshafts, inner gears, outer drive gears, inner, outer bearings, gasket and instructions
- Made in the USA
- Due to inherent characteristics of gear drives, more valve train noise maybe heard.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Not recommended for engines having compression ratios greater the 10.1:1
Specs
| Product Name | Camshaft Kit |
| Type | Gear |
| Application | Exhaust / Intake |
| Grind | 583 Series |
| Intake Lift at TDC | 0.113" |
| Intake Open | 5° |
| Intake Lift | 0.583" |
| Intake Duration | 203° |
| Intake Lobe Centerline | 96.5° |
| Intake Close | 18° |
| Exhaust Lift | 0.583" |
| Exhaust Duration | 262° |
| Exhaust Lobe Centerline | 107° |
| Exhaust Lift at TDC | 0.206" |
| Exhaust Open | 58° |
| Exhaust Close | 24° |
| Units | Kit |
| Riding Style | Street |
