S&S Cycle

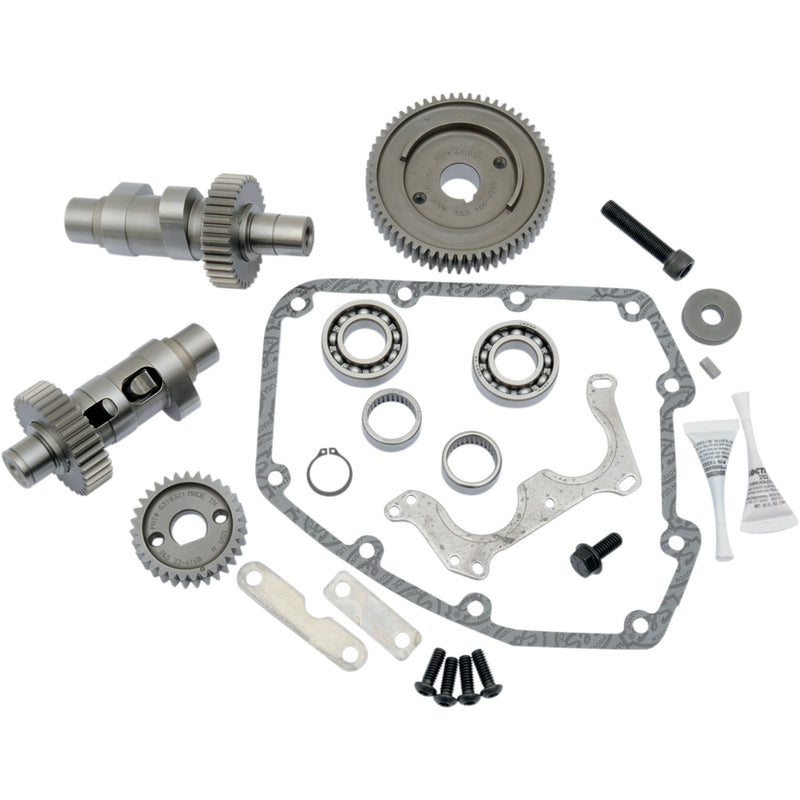

S&S Cycle Easy Start Cam Kit - 106-5247 For Harley Motorcycles 1999-2006
MPN:
106-5247
SKU:
0925-0455
S&S Cycle
S&S Cycle Easy Start Cam Kit - 106-5247 For Harley Motorcycles 1999-2006
MPN:
106-5247
SKU:
0925-0455
Availability:
Out of stock
Start any engine regardless of displacement or compression ratio with a stock starter
Save your starter and battery; tested for 10,000 starts without running battery down
Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
All chain-drive cams include installation kit
All gear-drive cams include 4-gear set and installation kit
For 88/95/96/103 cubic-inch engines
Compression ratios below 10:1
Made in the U.S.A.
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
Due to the inherent characteristics of gear drives, you may experience more valve train noise.
Not for models with OEM compression releases.
Specs
Product Name
Cam Kit
Type
Gear
Application
Intake / Exhaust
Model
Easy Start
Grind
585 Series
Intake Lift at TDC
0.186"
Intake Open
20°
Intake Lift
0.585"
Intake Duration
245°
Intake Lobe Centerline
102.5°
Intake Close
45°
Exhaust Lift
0.585"
Exhaust Duration
260°
Exhaust Lobe Centerline
110°
Exhaust Lift at TDC
0.179"
Exhaust Open
60°
Exhaust Close
20°
Features
Includes Installation Kit
Units
Kit
Riding Style
Street
Sold out
Original price
$1,070.95
-
Original price
$1,070.95
Original price
$1,070.95
$1,070.95
-
$1,070.95
Current price
$1,070.95
Product Details
Features
- Start any engine regardless of displacement or compression ratio with a stock starter
- Save your starter and battery; tested for 10,000 starts without running battery down
- Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- All chain-drive cams include installation kit
- All gear-drive cams include 4-gear set and installation kit
- For 88/95/96/103 cubic-inch engines
- Compression ratios below 10:1
- Made in the U.S.A.
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Due to the inherent characteristics of gear drives, you may experience more valve train noise.
- Not for models with OEM compression releases.
Specs
| Product Name | Cam Kit |
| Type | Gear |
| Application | Intake / Exhaust |
| Model | Easy Start |
| Grind | 585 Series |
| Intake Lift at TDC | 0.186" |
| Intake Open | 20° |
| Intake Lift | 0.585" |
| Intake Duration | 245° |
| Intake Lobe Centerline | 102.5° |
| Intake Close | 45° |
| Exhaust Lift | 0.585" |
| Exhaust Duration | 260° |
| Exhaust Lobe Centerline | 110° |
| Exhaust Lift at TDC | 0.179" |
| Exhaust Open | 60° |
| Exhaust Close | 20° |
| Features | Includes Installation Kit |
| Units | Kit |
| Riding Style | Street |
Product Description
Features
- Start any engine regardless of displacement or compression ratio with a stock starter
- Save your starter and battery; tested for 10,000 starts without running battery down
- Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- All chain-drive cams include installation kit
- All gear-drive cams include 4-gear set and installation kit
- For 88/95/96/103 cubic-inch engines
- Compression ratios below 10:1
- Made in the U.S.A.
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Due to the inherent characteristics of gear drives, you may experience more valve train noise.
- Not for models with OEM compression releases.
Specs
| Product Name | Cam Kit |
| Type | Gear |
| Application | Intake / Exhaust |
| Model | Easy Start |
| Grind | 585 Series |
| Intake Lift at TDC | 0.186" |
| Intake Open | 20° |
| Intake Lift | 0.585" |
| Intake Duration | 245° |
| Intake Lobe Centerline | 102.5° |
| Intake Close | 45° |
| Exhaust Lift | 0.585" |
| Exhaust Duration | 260° |
| Exhaust Lobe Centerline | 110° |
| Exhaust Lift at TDC | 0.179" |
| Exhaust Open | 60° |
| Exhaust Close | 20° |
| Features | Includes Installation Kit |
| Units | Kit |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-0455 | 106-5247 | Out of Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
