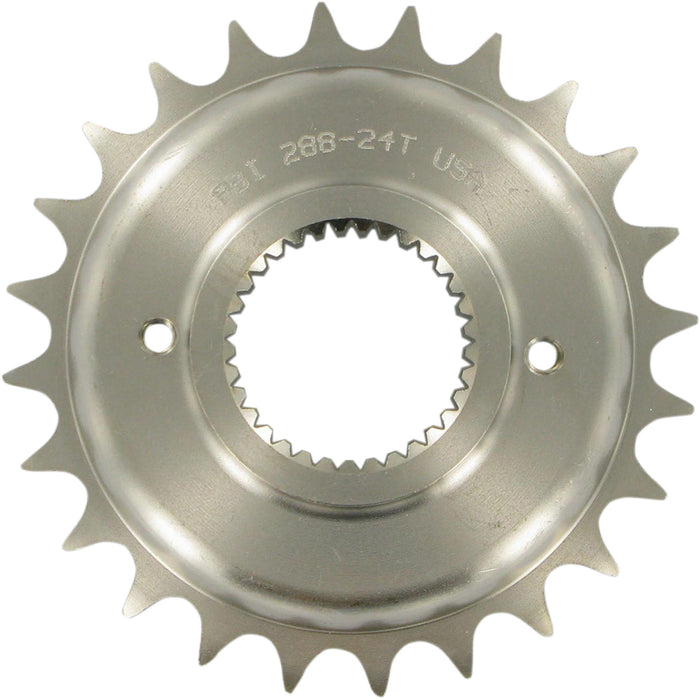

PBI PBI-288-24 288-24 Offset Transmission Sprocket 24 tooth - harley-davidson/buell

Features

• CNC-machined from a premium nickel, chromoly steel (8620), case-hardened and finished with an electroless nickel plating for corrosion/wear resistance and lubricity
• Sprockets are drilled and tapped to accommodate late-model lock plate, PART #DS-360182, available separately
• Offset measurement is taken from the face that rests against the mainshaft bearing to the inside of the teeth for "Total Offset" description
• For use with .530 pitch chain
• Made in the U.S.A.

Specs

Units	Each
Tooth Count	24
Product Name	Sprocket
Offset	1.060"
Chain Size	530
Riding Style	Street
Material	Steel
Type	Mainshaft
Color/Finish	Nickel

Part Notes

• Will also fit '86-'93 Big Twin models with use of OEM #33344-94 (spacer), OEM #12067A (seal) and OEM #11165 (O-ring).

1996	Harley-Davidson	Tour Glide Ultra Classic EFI FLTCU
1991-2003	Harley-Davidson	Sportster 883 XLH
1991-2003	Harley-Davidson	883 Hugger XLH
1996-2006	Harley-Davidson	1200 Custom XLC
2004-2006	Harley-Davidson	1200 Roadster XLR
2004-2006	Harley-Davidson	883 XL
1999-2006	Harley-Davidson	883 Custom XLC
1991-2003	Harley-Davidson	Sportster 1200 XLH
1998-2006	Harley-Davidson	Road King Classic EFI FLHRC
1985-2005	Harley-Davidson	Electra Glide Classic FLHTC
1994-2006	Harley-Davidson	Road King FLHR
1996-2003	Harley-Davidson	1200 Sport XLS
2005-2006	Harley-Davidson	883 Low XLL
2002-2003, 2005-2006	Harley-Davidson	883 Roadster XLR
1991-1995	Harley-Davidson	883 Deluxe XLH
1995-2005	Harley-Davidson	Super Glide FXD
1998-2002	Harley-Davidson	Road Glide FLTR
1987-1994	Harley-Davidson	Low Rider Custom FXLR
1995-2006	Harley-Davidson	Electra Glide Ultra Classic EFI FLHTCUI
2006	Harley-Davidson	1200 Low XLL
1995-1997	Harley-Davidson	Softail Bad Boy FXSTSB
1993-2005	Harley-Davidson	Wide Glide FXDWG
1995-2006	Harley-Davidson	Electra Glide Classic EFI FLHTCI
1988-2006	Harley-Davidson	Softail Springer FXSTS
1986-1999	Harley-Davidson	Softail Custom FXSTC
1993-2005	Harley-Davidson	Low Rider FXDL
1995-2000	Harley-Davidson	Dyna Convertible FXDS-CONV
1989-1999	Harley-Davidson	Electra Glide Ultra Classic FLHTCU
1985-1987, 1995-2006	Harley-Davidson	Electra Glide Standard FLHT
1989-1996	Harley-Davidson	Tour Glide Ultra Classic FLTCU
1986-1994	Harley-Davidson	Super Glide FXR
2005-2006	Harley-Davidson	Softail Springer Classic FLSTSC
2001-2006	Harley-Davidson	Softail Standard EFI FXSTI
2005	Harley-Davidson	Super Glide Custom EFI FXDCI
2004-2005	Harley-Davidson	Super Glide Sport EFI FXDXI
2001-2006	Harley-Davidson	Softail Springer EFI FXSTSI
2005-2006	Harley-Davidson	Softail Springer Classic EFI FLSTSCI
2004-2006	Harley-Davidson	Road King Custom FLHRS
2001-2003	Harley-Davidson	Super Glide T-Sport FXDXT
1999-2006	Harley-Davidson	Softail Night Train FXSTB
1999-2005	Harley-Davidson	Super Glide Sport FXDX
2001-2006	Harley-Davidson	Softail Night Train EFI FXSTBI
2004-2006	Harley-Davidson	Road King Custom EFI FLHRS
2004-2005	Harley-Davidson	Super Glide EFI FXDI
2006	Harley-Davidson	Softail Heritage EFI FLSTI
1999	Harley-Davidson	FXR 3
2005	Harley-Davidson	Super Glide Custom FXDC
1987-1993	Harley-Davidson	Electra Glide Sport FLHS
1985-1993	Harley-Davidson	Sport Glide FXRT
1985-1994	Harley-Davidson	Tour Glide Classic FLTC
1990-1993	Harley-Davidson	Low Rider Convertible FXRS-CONV
1985	Harley-Davidson	Low Glide Custom FXRC
1986-1993	Harley-Davidson	Softail Standard FXST
1992	Harley-Davidson	Dyna Glide Custom FXDC
1987-2006	Harley-Davidson	Softail Heritage Classic FLSTC
2001-2006	Harley-Davidson	Softail Heritage Classic EFI FLSTCI
2005-2006	Harley-Davidson	Softail Deluxe FLSTN
1990-2006	Harley-Davidson	Softail Fat Boy FLSTF
2001-2006	Harley-Davidson	Softail Fat Boy EFI FLSTFI
1996-2006	Harley-Davidson	Road King EFI FLHR
2001-2006	Harley-Davidson	Softail Deuce EFI FXSTDI
2004-2005	Harley-Davidson	Wide Glide EFI FXDWGI
1987-1993	Harley-Davidson	Low Rider FXRS
1988-1993	Harley-Davidson	Low Rider Sport FXRS-SP
1986-1990, 2006	Harley-Davidson	Softail Heritage FLST
2000-2006	Harley-Davidson	Softail Deuce FXSTD
1987	Harley-Davidson	Low Rider Chrome FXRC
1986	Harley-Davidson	Sport Glide Grand Touring FXRD
1997-2003	Harley-Davidson	Softail Heritage Springer FLSTS
2005-2006	Harley-Davidson	Softail Deluxe EFI FLSTNI
2006	Harley-Davidson	Street Glide EFI FLHX
1993	Harley-Davidson	Softail Nostalgia FLSTN
2001-2003	Harley-Davidson	Softail Heritage Springer EFI FLSTSI
1985	Harley-Davidson	Low Glide FXRS
1994-1996	Harley-Davidson	Softail Heritage Special FLSTN
1999	Harley-Davidson	FXR 2
2004-2005	Harley-Davidson	Low Rider EFI FXDL
1998-2006	Harley-Davidson	Road Glide EFI FLTR
2006	Harley-Davidson	Street Glide FLHX
2000	Harley-Davidson	FXR 4
2005	Harley-Davidson	15th Anniversary Fat Boy FLSTF
2003-2006	Harley-Davidson	Electra Glide Standard EFI FLHTI
1999-2002	Buell	X1 Lightning
1997-2000	Buell	M2 Cyclone
1997	Buell	S3 Thunderbolt
1997	Buell	S3T Thunderbolt
1998	Buell	S1 White Lightning
1996	Buell	S1 Lightning
1994	Buell	S2 Thunderbolt

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
