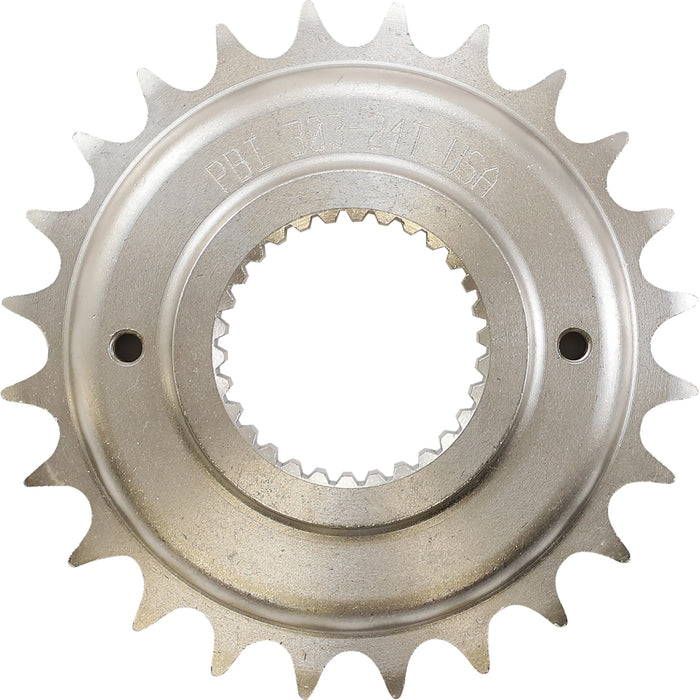

PBI 1212-0523 303-24 Offset Transmission Sprocket 24 tooth

Features

• CNC-machined from a premium nickel, chromoly steel (8620), case-hardened and finished with an electroless nickel plating for corrosion/wear resistance and lubricity
• Sprockets are drilled and tapped to accommodate late-model lock plate, PART #DS-360182, available separately
• Offset measurement is taken from the face that rests against the mainshaft bearing to the inside of the teeth for "Total Offset" description
• For use with .530 pitch chain
• Made in the U.S.A.

Specs

Chain Size	530
Type	Mainshaft
Offset	0.500"
Units	Each
Tooth Count	24
Material	Steel
Product Name	Sprocket
Color/Finish	Nickel
Riding Style	Street

Part Notes

• Will also fit 86-93 Big Twin models with use of OEM #33344-94 (spacer), OEM #12067A (seal) and OEM #11165 (O-ring)

2007-2017	Harley-Davidson	Softail Deluxe EFI FLSTNI
2006-2008, 2010-2017	Harley-Davidson	Wide Glide EFI FXDWGI
2007-2017	Harley-Davidson	Softail Fat Boy EFI FLSTFI
2007-2017	Harley-Davidson	Softail Heritage Classic EFI FLSTCI
2009-2017	Harley-Davidson	Fat Boy Lo FLSTFB
2012-2017	Harley-Davidson	Softail Slim FLS
2016-2017	Harley-Davidson	Softail Slim S FLSS
2007	Harley-Davidson	Electra Glide Ultra Classic EFI FLHTCUI
2012-2016	Harley-Davidson	Switchback FLD
2006-2017	Harley-Davidson	Street Bob FXDB
2013-2017	Harley-Davidson	Breakout FXSB
2016-2017	Harley-Davidson	Fat Boy S FLSTFBS
2008-2017	Harley-Davidson	Fat Bob FXDF
2006-2010	Harley-Davidson	Super Glide EFI FXDI
2007	Harley-Davidson	Softail Springer Classic EFI FLSTSCI
2006-2014	Harley-Davidson	Super Glide Custom EFI FXDCI
2007	Harley-Davidson	Road King EFI FLHR
2007-2010	Harley-Davidson	Softail Custom EFI FXSTC
2008-2011	Harley-Davidson	Softail Cross Bones FLSTSB
2007-2009	Harley-Davidson	Softail Night Train EFI FXSTBI
2007	Harley-Davidson	Road King Classic EFI FLHRC
2007-2011	Harley-Davidson	Softail Rocker C FXCWC
2007-2009, 2014-2017	Harley-Davidson	Low Rider EFI FXDL
2016-2017	Harley-Davidson	Low Rider S FXDLS
2006	Harley-Davidson	Super Glide FXD35
2007-2010	Harley-Davidson	Softail Rocker FXCW
2007	Harley-Davidson	Electra Glide Standard EFI FLHTI
2011-2013	Harley-Davidson	Blackline FXS
2007	Harley-Davidson	Electra Glide Classic EFI FLHTCI
2007	Harley-Davidson	Road Glide EFI FLTR
2007	Harley-Davidson	Street Glide EFI FLHX
2007	Harley-Davidson	Road King Custom EFI FLHRS
2007	Harley-Davidson	Softail Deuce EFI FXSTDI
2010	Harley-Davidson	CVO Softail Convertible FLSTSE
2018	Harley-Davidson	Softail Deluxe FLDE
2018	Harley-Davidson	Softail Low Rider FXLR
2007-2012	Harley-Davidson	Softail Standard EFI FXSTI
2012	Harley-Davidson	CVO Softail Convertible FLSTSE3
2014-2015	Harley-Davidson	CVO Softail Deluxe FLSTNSE
2018	Harley-Davidson	Softail Breakout 114 FXBRS
2018	Harley-Davidson	Softail Fat Bob FXFB
2007	Harley-Davidson	Screamin' Eagle Dyna FXDSE
2007	Harley-Davidson	Screamin' Eagle Road King FLHRSE3
2018	Harley-Davidson	Softail Fat Bob 114 FXFBS
2018	Harley-Davidson	Softail Sport Glide FLSB
2016-2017	Harley-Davidson	CVO Pro Street Breakout FXSE
2008	Harley-Davidson	Screamin' Eagle Dyna FXDSE2
2009	Harley-Davidson	CVO Fat Bob FXDFSE
2006	Harley-Davidson	Wide Glide FXDWG
2018	Harley-Davidson	Softail Fat Boy FLFB
2018	Harley-Davidson	Softail Heritage Classic FLHC
2018	Harley-Davidson	Softail Fat Boy 114 FLFBS
2018	Harley-Davidson	Softail Heritage Classic 114 FLHCS
2013-2014	Harley-Davidson	CVO Breakout FXSBSE
2007	Harley-Davidson	Electra Glide Police FLHTPI
2011	Harley-Davidson	CVO Softail Convertible FLSTSE2
2006	Harley-Davidson	Super Glide FXD
2009	Harley-Davidson	CVO Softail Springer FXSTSSE3
2008	Harley-Davidson	Screamin' Eagle Softail Springer FXSTSSE2
2018	Harley-Davidson	Softail Breakout FXBR
2010	Harley-Davidson	CVO Fat Bob FXDFSE2
2007	Harley-Davidson	Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE2
2007	Harley-Davidson	Screamin' Eagle Softail Springer FXSTSSE
2018	Harley-Davidson	Softail Slim FLSL
2018	Harley-Davidson	Softail Street Bob FXBB

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
