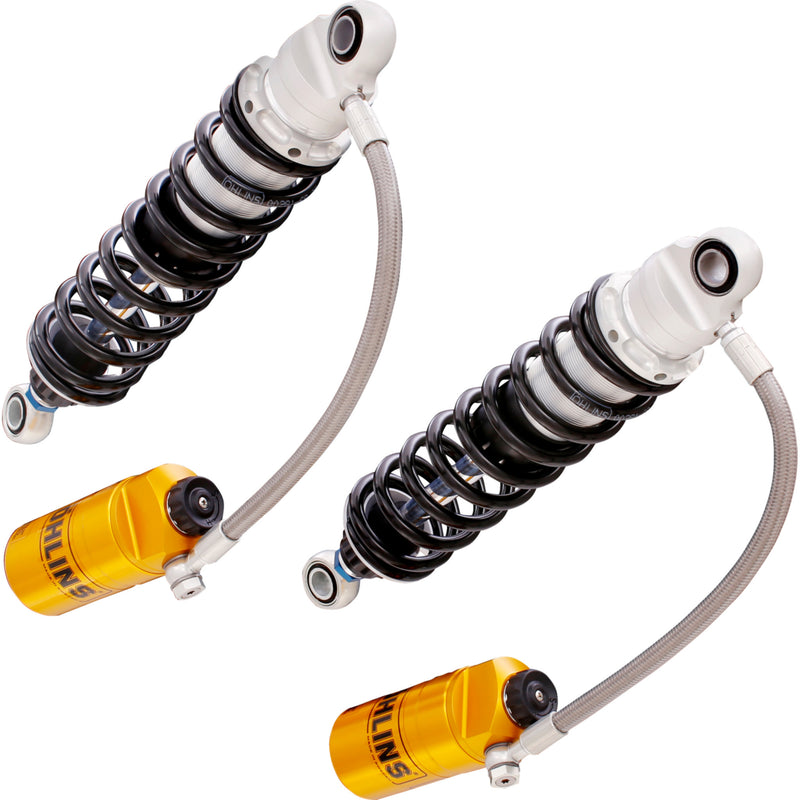

Adjustable rebound and compression damping

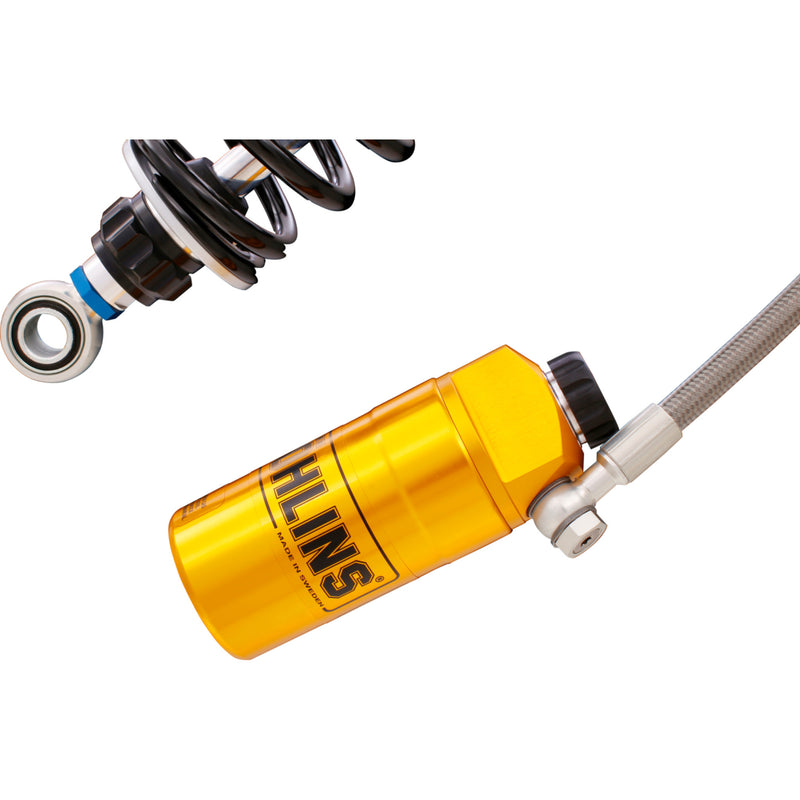

Monotube shock with external hose reservoir
Length adjustable – 1/2"
High pressure nitrogen gas charged
STX single tube design
36 mm piston diameter
Adjustable preload with billet tool
Multiple spring rates available to accommodate a wide range of riders
Top level comfort, rideability, and performance
Hard anodized - precision CNC-Machined components
Low-friction Shaft / Seal head design
Fully serviceable and repairable
Specs
Extended Length
13.00"
Product Name
Shock
Model
STX
Units
Pair
Color/Finish
Black
Maximum Rider Weight
575.00 lb
Mounting Position
Rear
Riding Style
Street
Type
Twin
Linear Spring Rate
28 n/m
Extended Length
13.307" (+0/-0.393")
Model
STX Pro
Part Notes
Spring: Ohlins Part # 66422-028
Adjustment range: 0.393"
Stroke length: 3.583"
Weight range: 250 lb – Max 575 lb
Original price
$1,648.90
-
Original price
$1,648.90
Original price
$1,648.90
$1,648.90
-
$1,648.90
Current price
$1,648.90
Product Details
Features
- Adjustable rebound and compression damping
- Monotube shock with external hose reservoir
- Length adjustable – 1/2"
- High pressure nitrogen gas charged
- STX single tube design
- 36 mm piston diameter
- Adjustable preload with billet tool
- Multiple spring rates available to accommodate a wide range of riders
- Top level comfort, rideability, and performance
- Hard anodized - precision CNC-Machined components
- Low-friction Shaft / Seal head design
- Fully serviceable and repairable
Specs
| Extended Length | 13.00" |
| Product Name | Shock |
| Model | STX |
| Units | Pair |
| Color/Finish | Black |
| Maximum Rider Weight | 575.00 lb |
| Mounting Position | Rear |
| Riding Style | Street |
| Type | Twin |
| Linear Spring Rate | 28 n/m |
| Extended Length | 13.307" (+0/-0.393") |
| Model | STX Pro |
Part Notes
- Spring: Ohlins Part # 66422-028
- Adjustment range: 0.393"
- Stroke length: 3.583"
- Weight range: 250 lb – Max 575 lb
Product Description
Features
- Adjustable rebound and compression damping
- Monotube shock with external hose reservoir
- Length adjustable – 1/2"
- High pressure nitrogen gas charged
- STX single tube design
- 36 mm piston diameter
- Adjustable preload with billet tool
- Multiple spring rates available to accommodate a wide range of riders
- Top level comfort, rideability, and performance
- Hard anodized - precision CNC-Machined components
- Low-friction Shaft / Seal head design
- Fully serviceable and repairable
Specs
| Extended Length | 13.00" |
| Product Name | Shock |
| Model | STX |
| Units | Pair |
| Color/Finish | Black |
| Maximum Rider Weight | 575.00 lb |
| Mounting Position | Rear |
| Riding Style | Street |
| Type | Twin |
| Linear Spring Rate | 28 n/m |
| Extended Length | 13.307" (+0/-0.393") |
| Model | STX Pro |
Part Notes
- Spring: Ohlins Part # 66422-028
- Adjustment range: 0.393"
- Stroke length: 3.583"
- Weight range: 250 lb – Max 575 lb
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 1310-2384 | HD 357S2 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
