Original Garage Moto OG Inverted Front End Complete Kit For Harley Road Glide 2023-2026
Original Garage Moto OG Inverted Front End Complete Kit For Harley Road Glide 2023-2026
Product Details

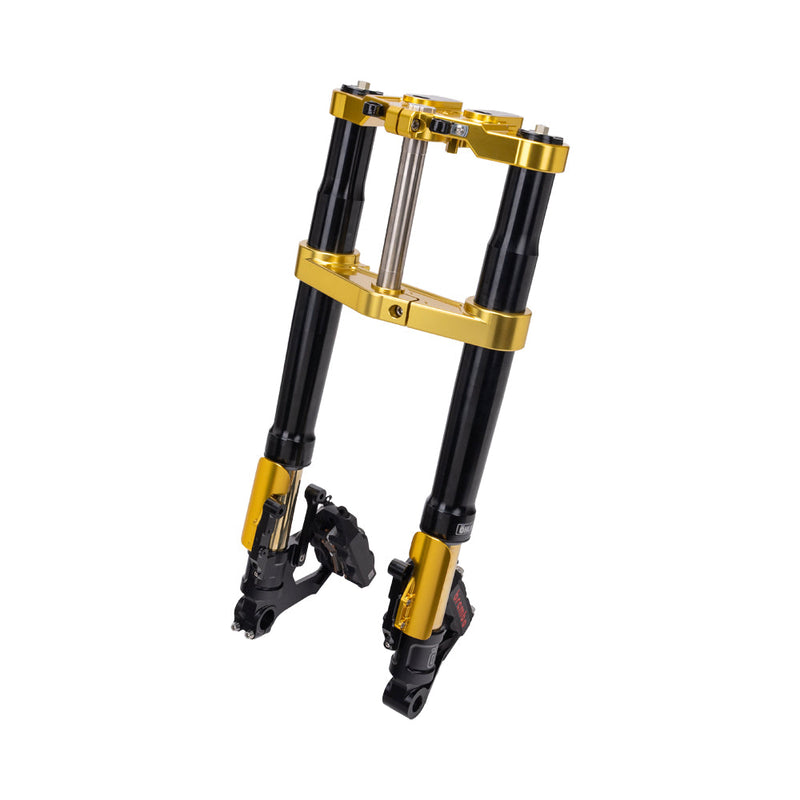

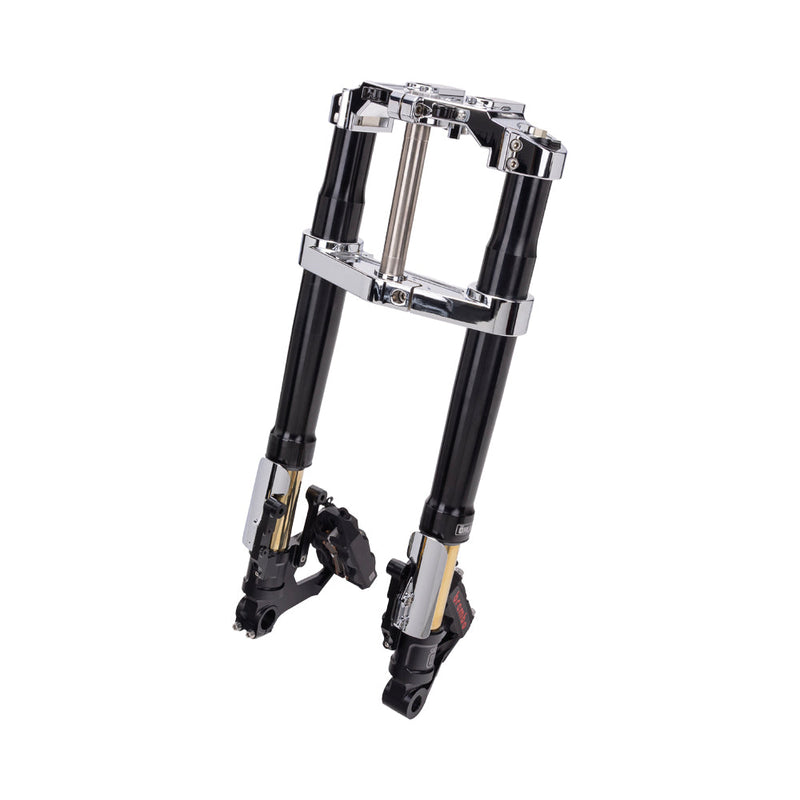

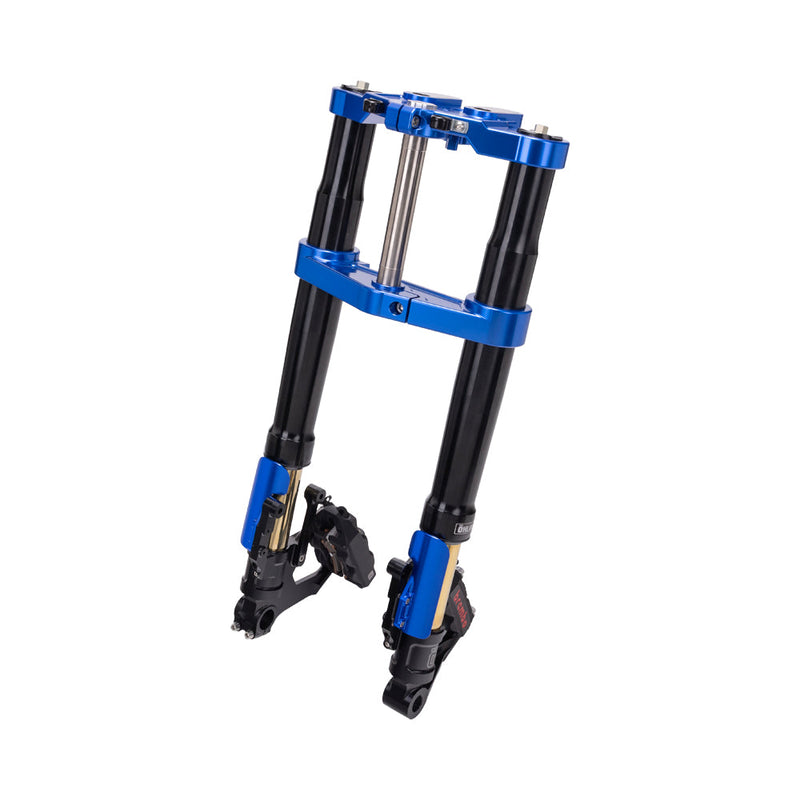

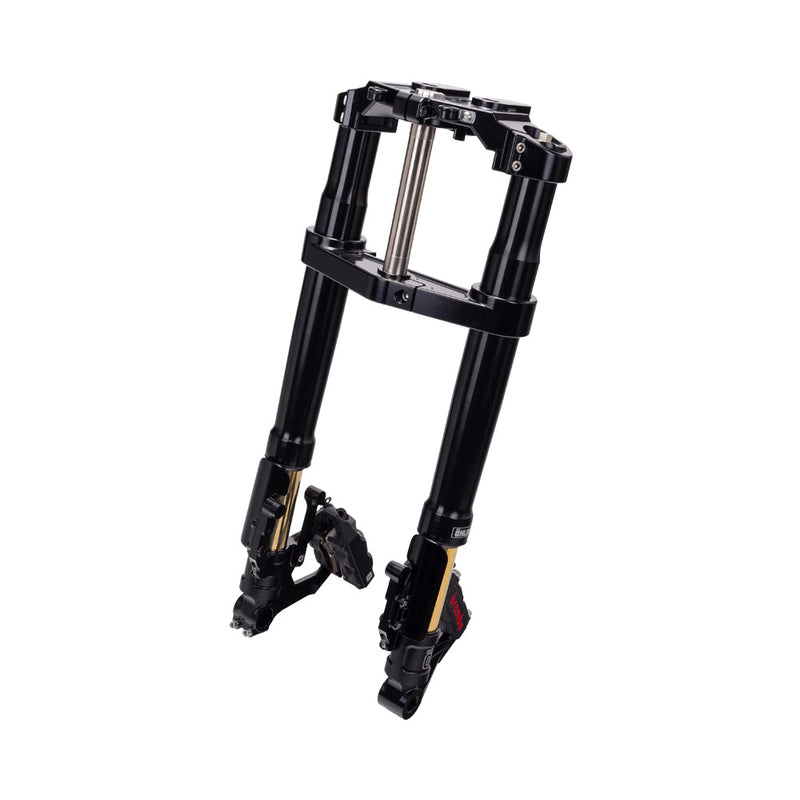

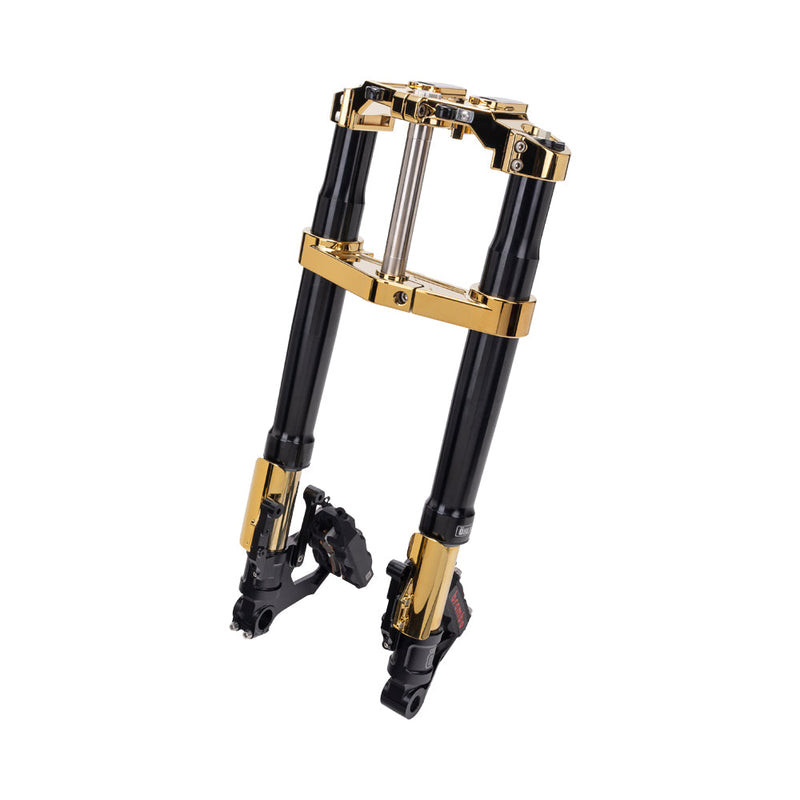

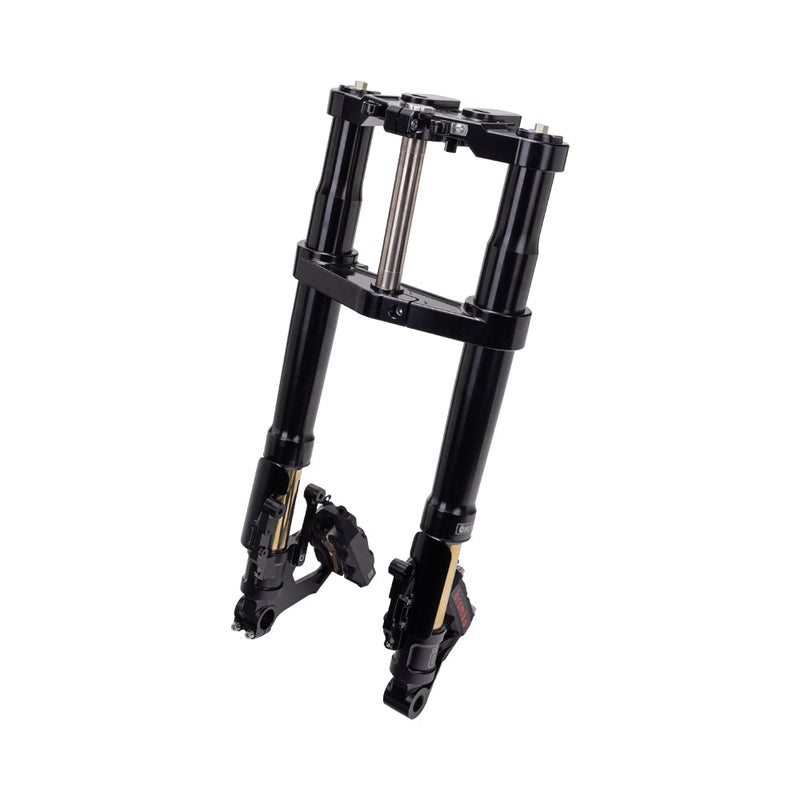

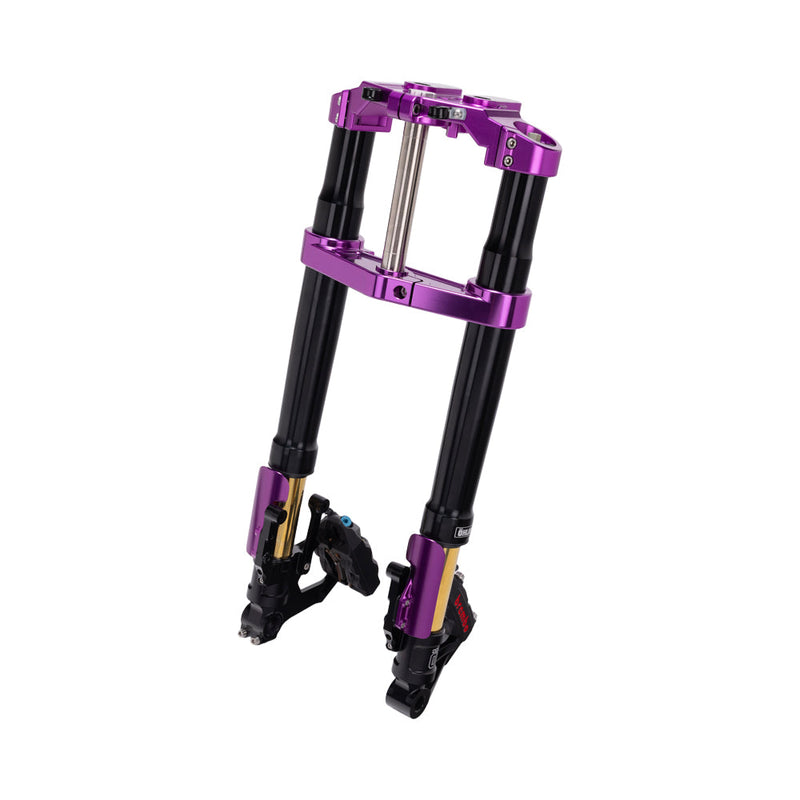

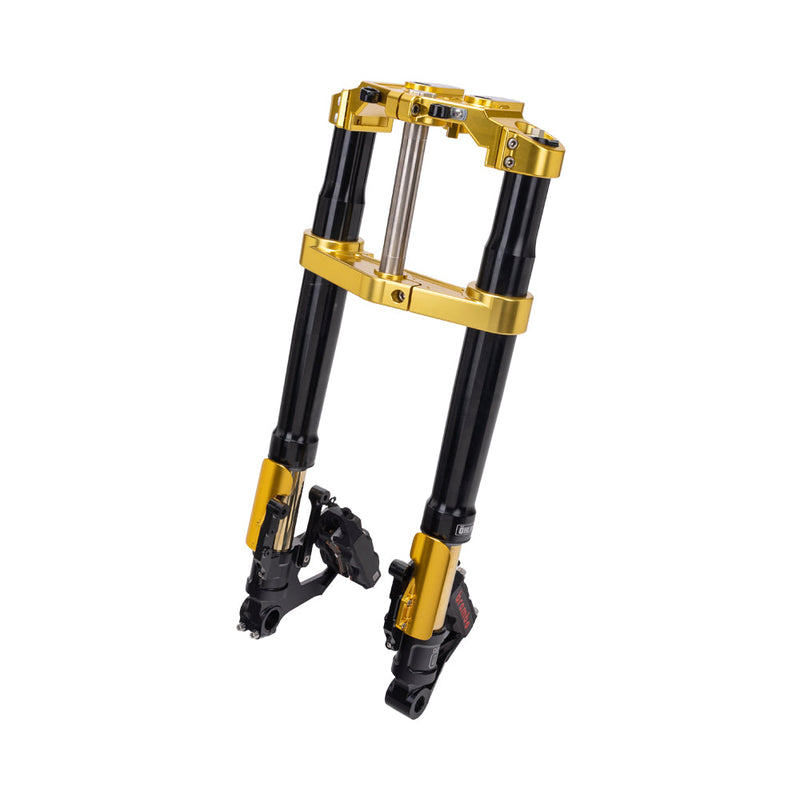

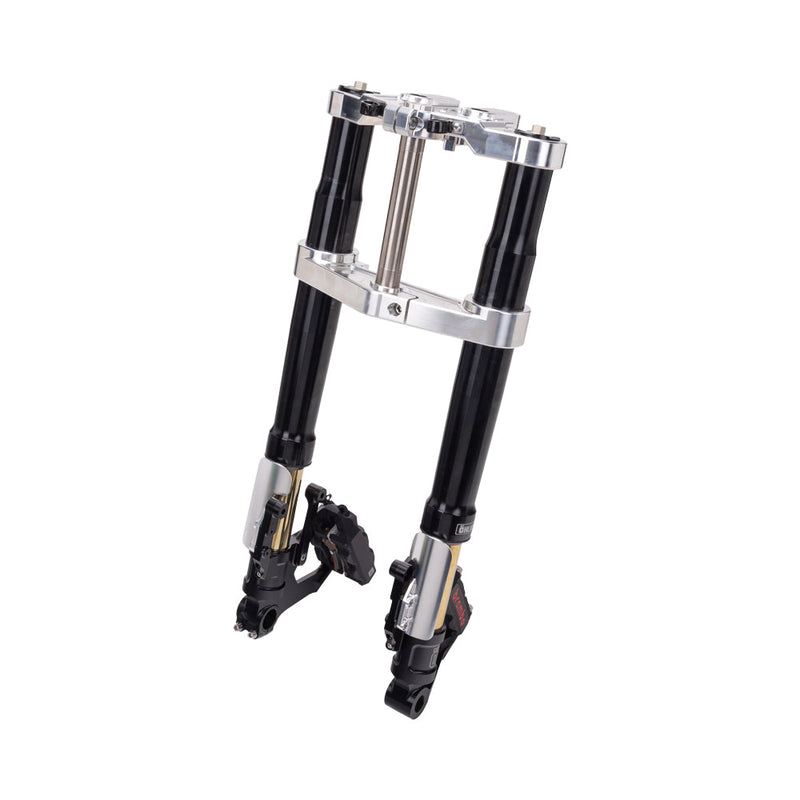

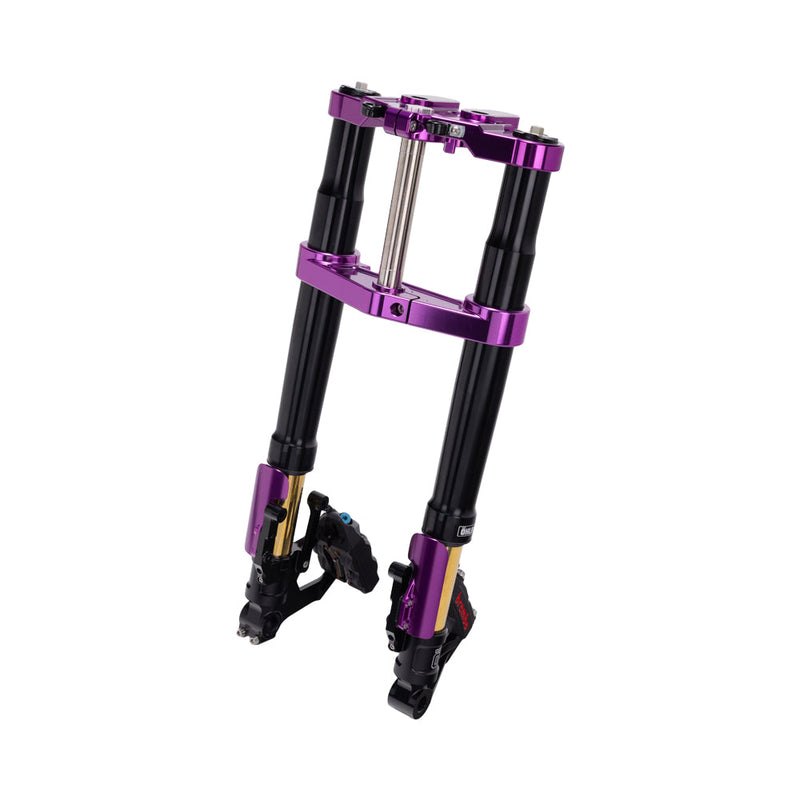

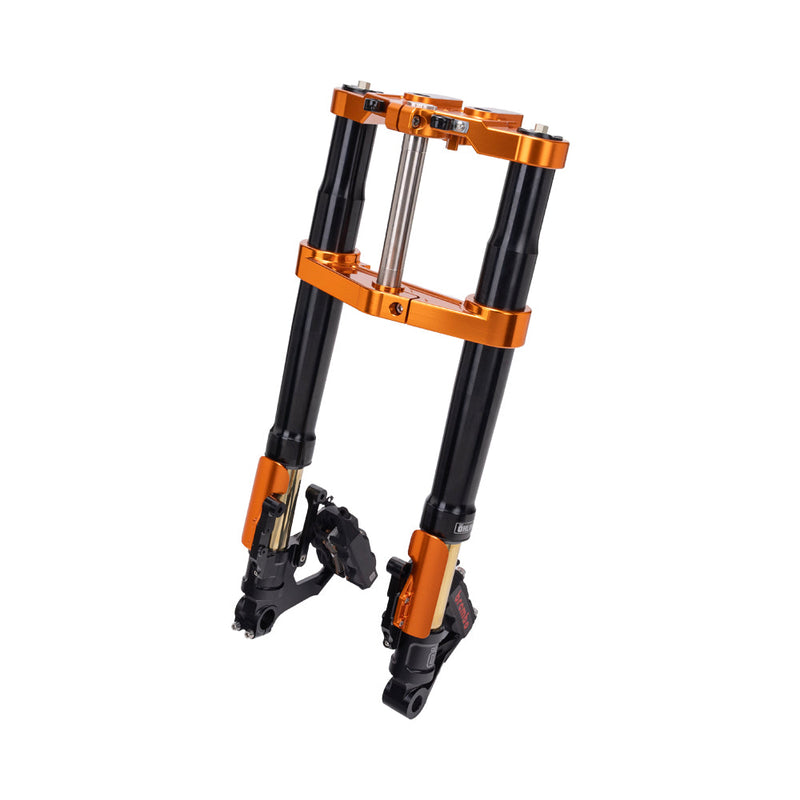

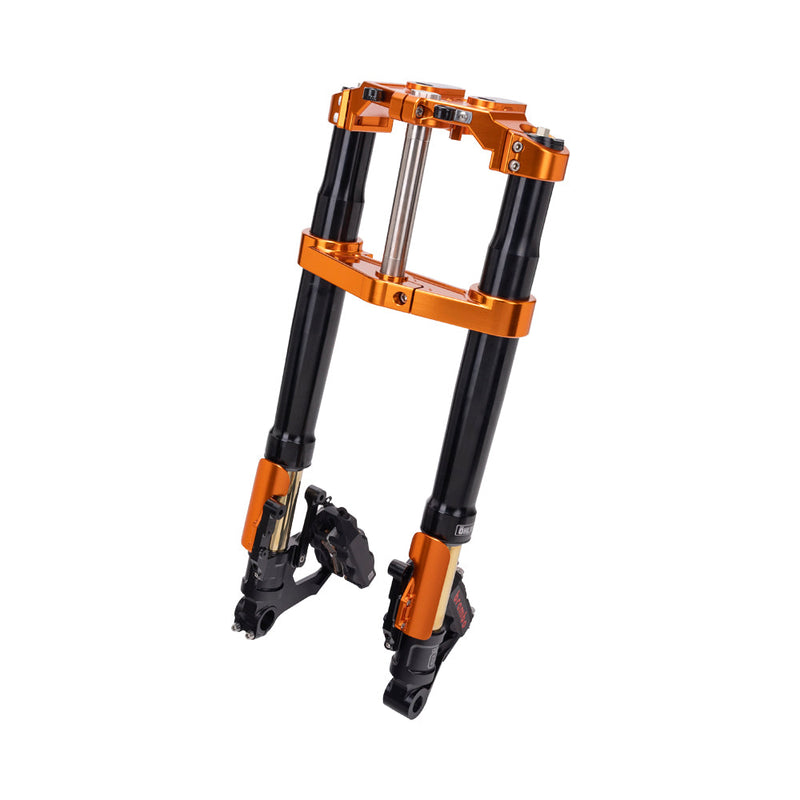

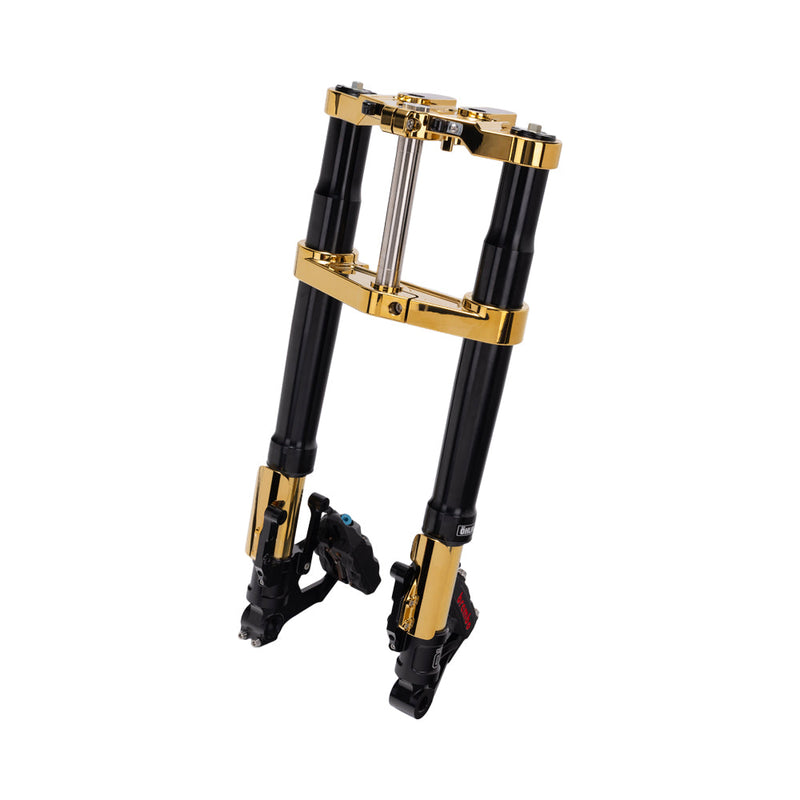

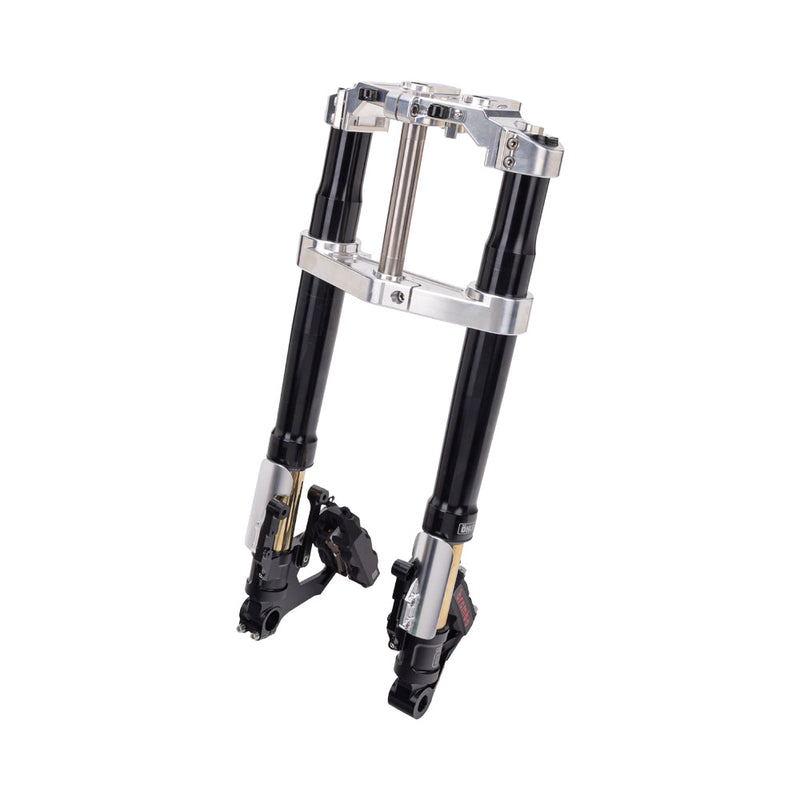

The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes

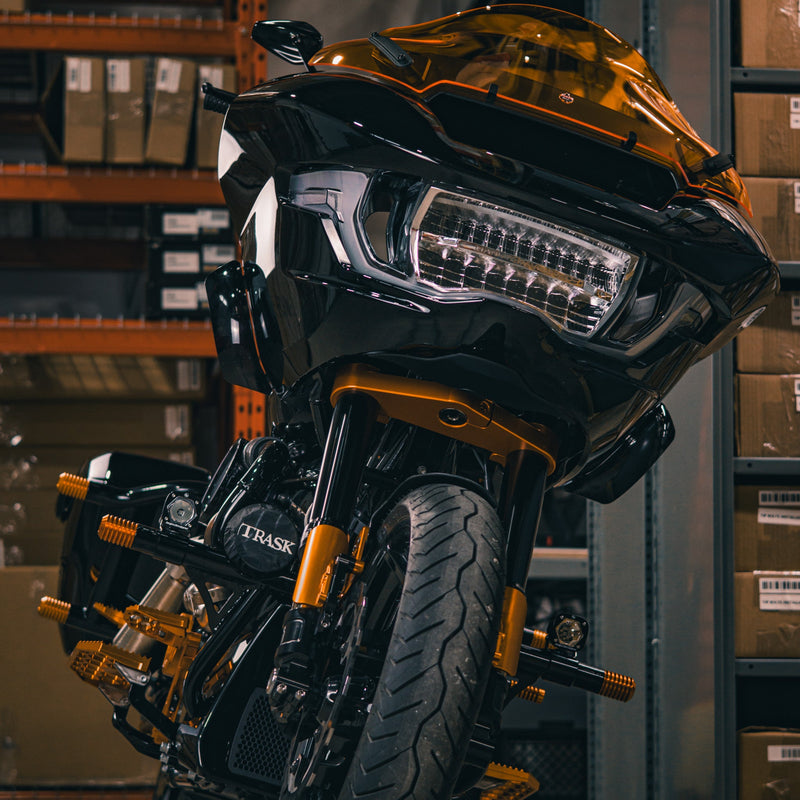

- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Black
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Aluminium
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Gold
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Red
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Blue

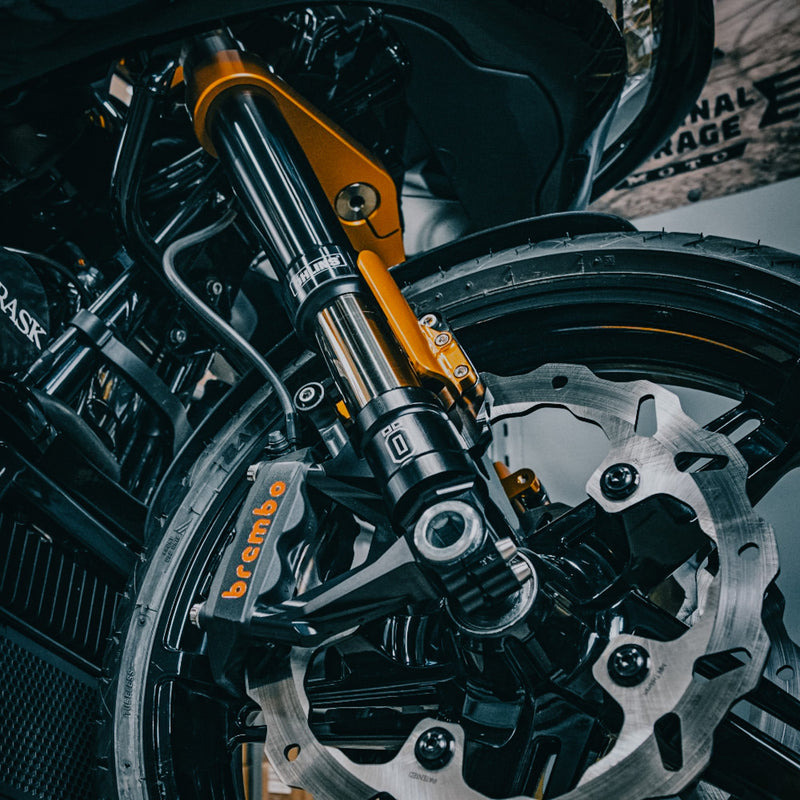

The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Purple
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Orange
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Black Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Gold Plating
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Bronze
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Black
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Aluminium
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Gold
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Red
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Blue
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Purple
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Orange
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Black Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Gold Plating
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Bronze
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Black
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Aluminium
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Gold
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Red
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Blue
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Purple
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Orange
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Black Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Gold Plating
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Standard; Caliper Style: No Caliper; Billet Components Color: Bronze
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Black
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Aluminium
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Gold
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Red
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Blue
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Purple
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Orange
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Black Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Gold Plating
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Black; Billet Components Color: Bronze
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Black
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Aluminium
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Gold
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Red
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Blue
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Purple
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Orange
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Black Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Gold Plating
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: Brembo 100mm M4 Monobloc Caliper Set - Titanium Gray; Billet Components Color: Bronze
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Black
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Aluminium
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Gold
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Red
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Blue
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Purple
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Orange
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Black Chrome
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Gold Plating
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
Selected options: Triple tree style: Drop 1"; Caliper Style: No Caliper; Billet Components Color: Bronze
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Click here for installation instructions
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
| Product Style | Store SKU | MFR. Product # | Availability |
|---|---|---|---|
| Standard / Brembo 100mm M4 Monobloc Caliper Set - Black / Black | OGMOP-SU-42-BK-BK | P-SU-42-BK-BK | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
The first image matches the product. Other colors or finishes may be included to show options available for order.
Description
Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.
The OG complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with the OG Touring CVO Fork Guards (P-SU-36-BK) (P-SU-36-AL) (P-SU-36-CR) (P-SU-36-GD)and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nutmachined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes the OG innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters (H-AC-53-BK) are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Notes
- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with the OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models (FN-BG-05-BK-HC) (FN-BG-05-AL-HC) (FN-BG-05-CR-HC) (FN-BG-05-GD-HC)
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using the OG +2"OG 2024-Up Touring Lower Brakes Lines(SKU: H-BH-05-BP)
Installation
Part Numbers
| Product Style | Store SKU | MFR. Product # | Availability |
|---|---|---|---|
| Standard / Brembo 100mm M4 Monobloc Caliper Set - Black / Black | OGMOP-SU-42-BK-BK | P-SU-42-BK-BK | In Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
