Product Details
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Ground Electrode Shape | Standard |
| Hex Size | 17.5 mm |

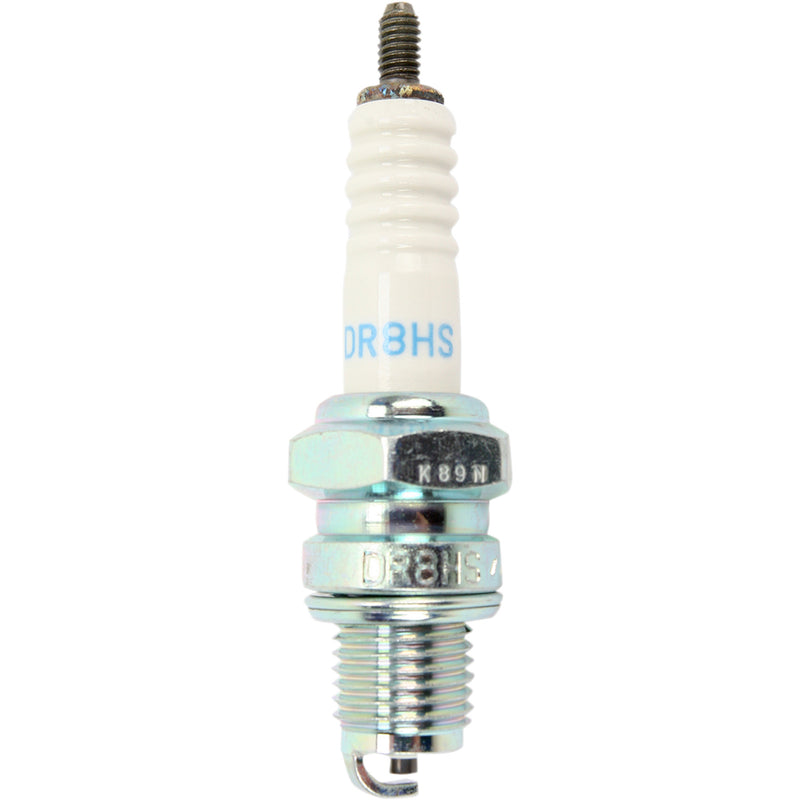

| Product Name | Spark Plug |
| Style | Standard |
| Thread Reach | 12.7 mm |
| Riding Style | ATV |
| Spark Gap | 0,7 mm (0,028") |
| Spark Gap | 0.7 mm |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Center Electrode Projection | Non-Projected |
| Heat Range | 8 |
| Model | DR8HS |
| Spark Gap | 0.028" |
| Type | Resistor |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Ground Electrode Shape | Standard |
| Hex Size | 17.5 mm |
| Product Name | Spark Plug |
| Style | Standard |
| Thread Reach | 12.7 mm |
| Riding Style | ATV |
| Spark Gap | 0,7 mm (0,028") |
| Spark Gap | 0.7 mm |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Center Electrode Projection | Non-Projected |
| Heat Range | 8 |
| Model | DR8HS |
| Spark Gap | 0.028" |
| Type | Resistor |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DR8HS | 5123 | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Ground Electrode Shape | Standard |
| Hex Size | 17.5 mm |
| Product Name | Spark Plug |
| Style | Standard |
| Thread Reach | 12.7 mm |
| Riding Style | ATV |
| Spark Gap | 0,7 mm (0,028") |
| Spark Gap | 0.7 mm |
| Terminal Configuration | Threaded Stud |
| Units | Each |
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Center Electrode Projection | Non-Projected |
| Heat Range | 8 |
| Model | DR8HS |
| Spark Gap | 0.028" |
| Type | Resistor |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DR8HS | 5123 | In Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
