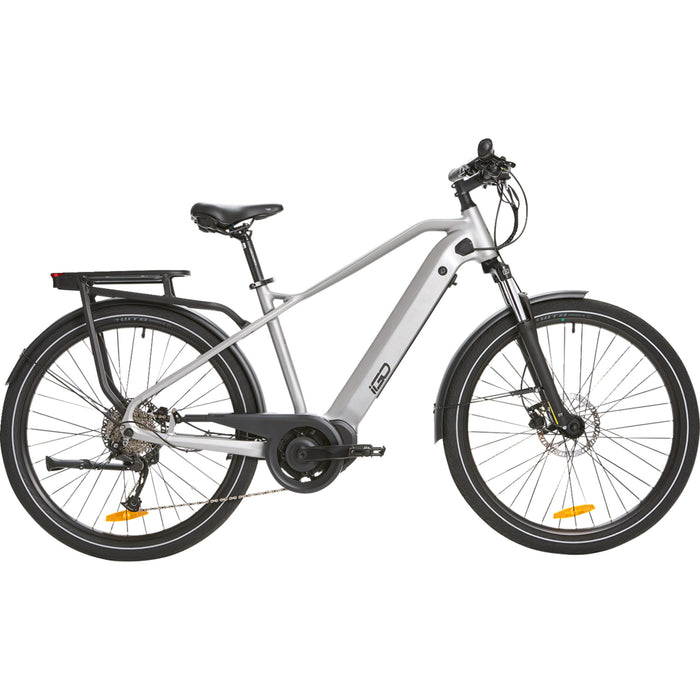

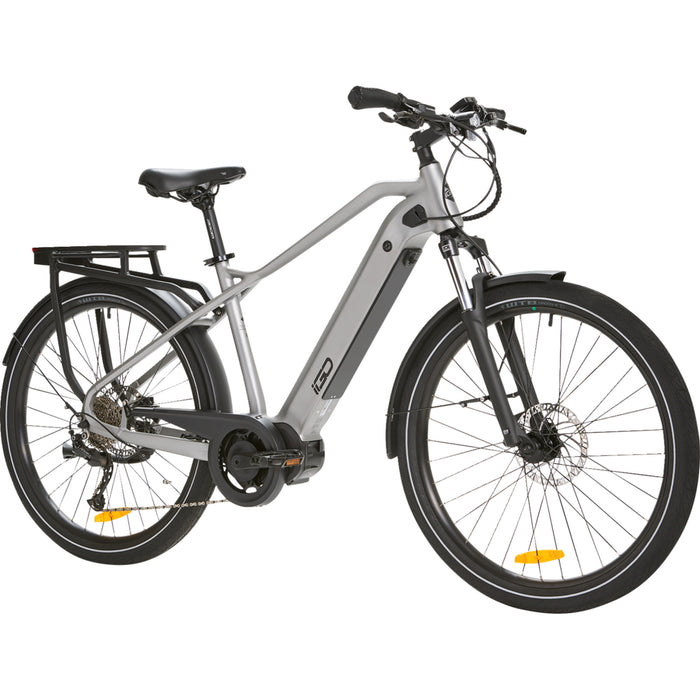

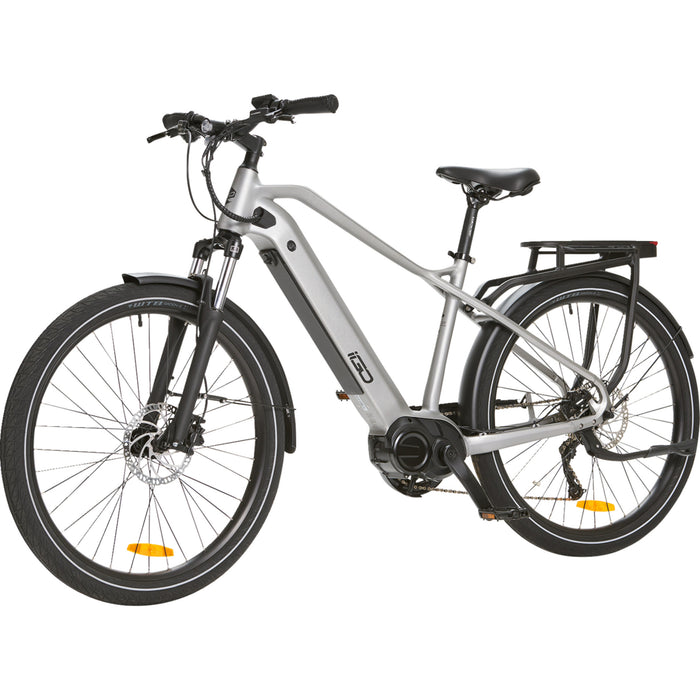

IGO ELECTRIC BIKES 4901-0017 100-222-000 Discovery LS E-Bike Discovery Yorkville LS E-Bike - Platinum - Hybrid

Features

• Programmed to be 'multi class switchable', this #1 feature allows parameters to be instantly reconfigured at the touch of a button to conform to Class 1, 2, or 3 regulations
• E-Bike with powerful, dynamic motor system delivering the advantages of electric assist to seamlessly enhance the traditional riding experience
• Customizable assist settings to satisfy seasoned riders, enhanced safety features and serviceability built into the fabric or the bike for durability and peace of mind

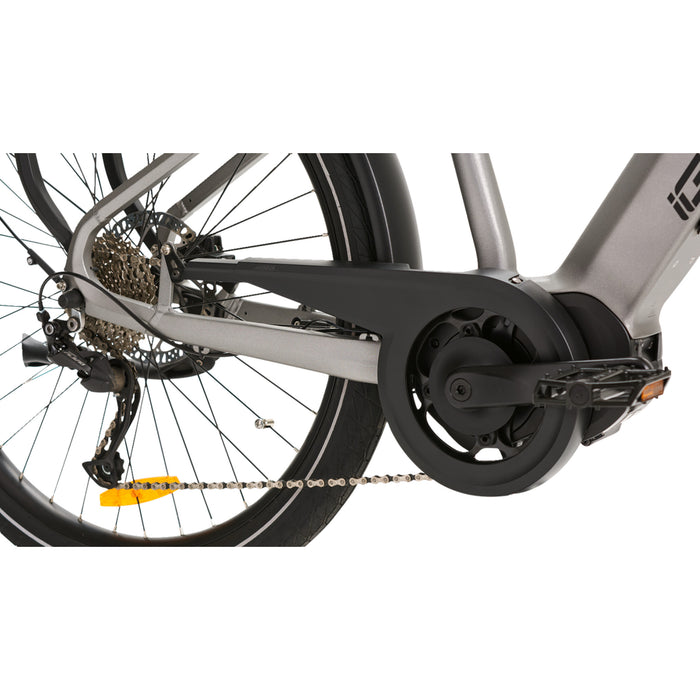

• City tuned 100 Nm/350 W mid motor with Torque/Cadence sensing and throttle delivers a powerful and intuitive natural riding experience
• 720 Wh battery providing up to 56 mile* range—ready everyday with plug and play charging and all day range
• Eco/Tour/Sport/Turbo/Boost user programmable and seamless intelligent riding experience
• Frameset

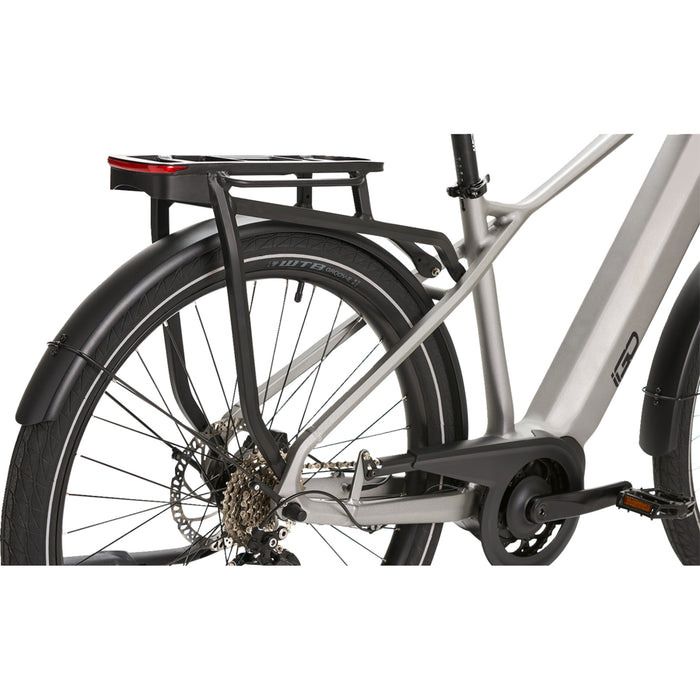

• Frame — Hydroformed Alloy, 27.5" frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack

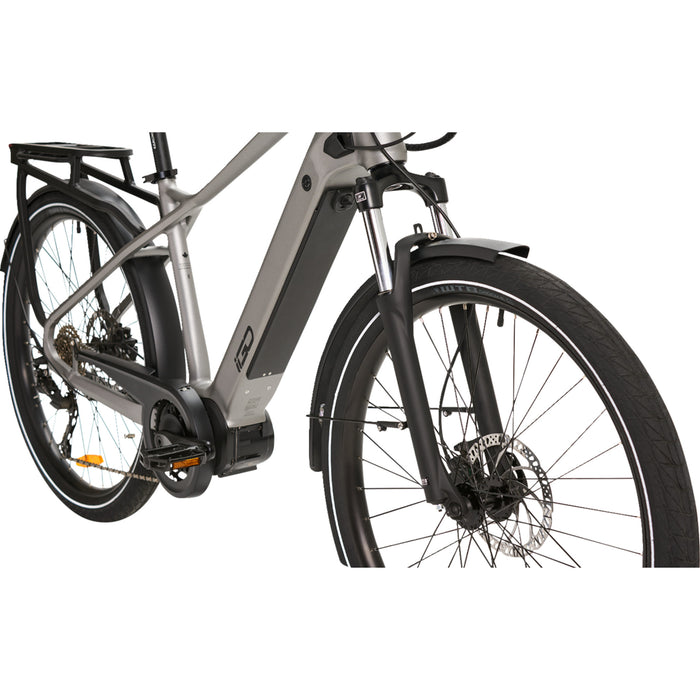

• Fork — RST Blaze-27.5TNL-15, 80 mm travel, lockout, Thru Axle
• Drivetrain
• Shifters — Shimano Alivio 9-Speed Rapidfire Plus
• Chainrings — 42T with Narrow Wide Teeth
• Chain — KMC E9-S

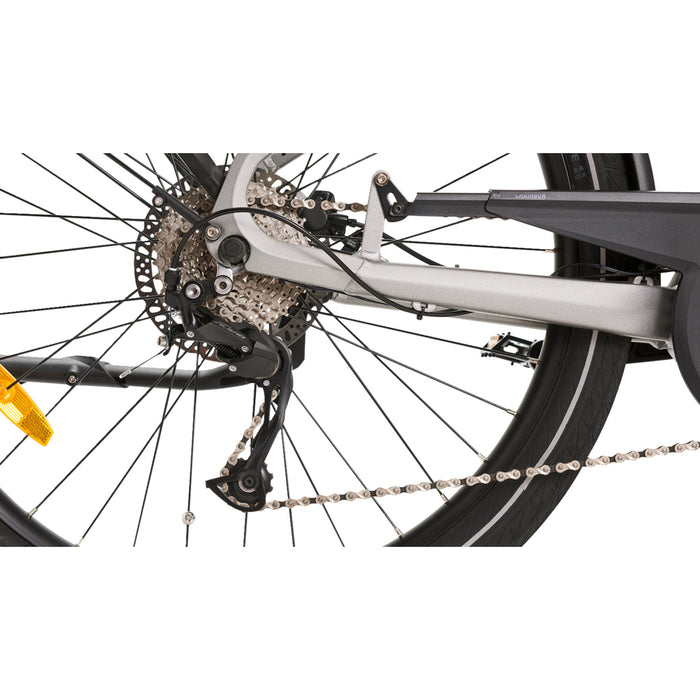

• Rear Derailleur — Shimano Alivio 9-Speed
• Cassette — Shimano Alivio 9-Speed 11-34T
• Components
• Handlebar — 640 mm, 45 mm rise, 31.8 mm diameter
• Grips — VELO, Ergonomic, 135 mm
• Stem — 80 mm with 7° rise
• Seat Post — 31.6 mm (350 mm)
• Saddle — Selle Royal Rio

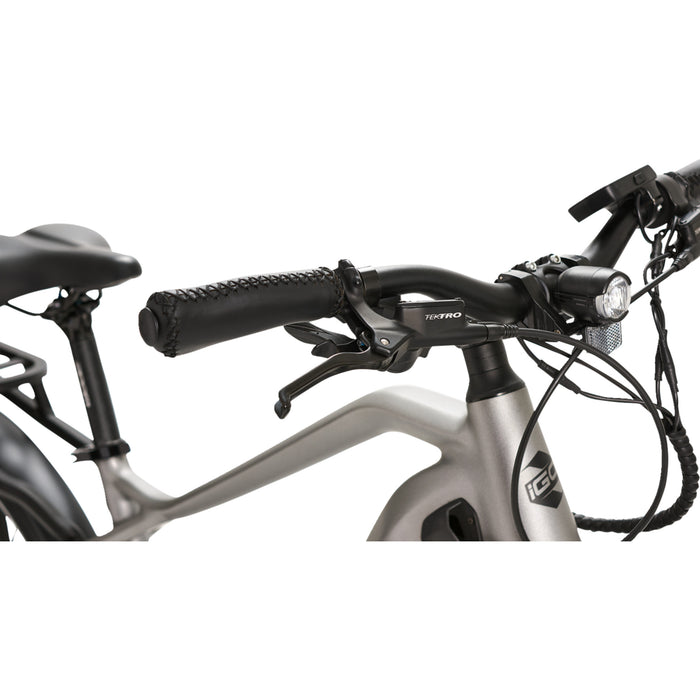

• Brake Levers — Tektro HDE350 with power cut-off switch

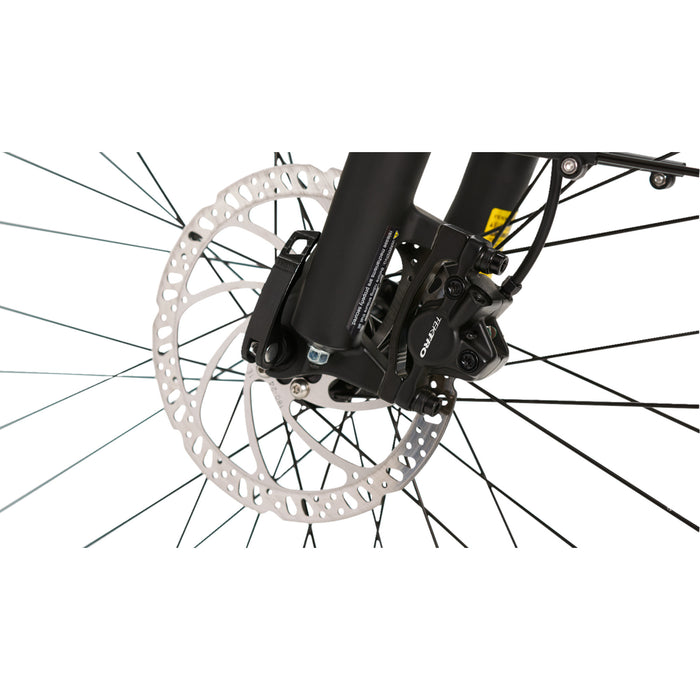

• Brake Calipers — Tektro HDE350 Hydraulic Disc
• Rotors — 180 mm
• Wheels
• Tires — WTB Groov-E 27.5”x2.4”, 60tpi
• Rims — 27.5”, Dual Wall Alloy, Black
• Electric Technology
• Bluetooth — iGO Mobile App (Android and iOS), Customizable profile and performance settings with full diagnostic monitoring and alerts

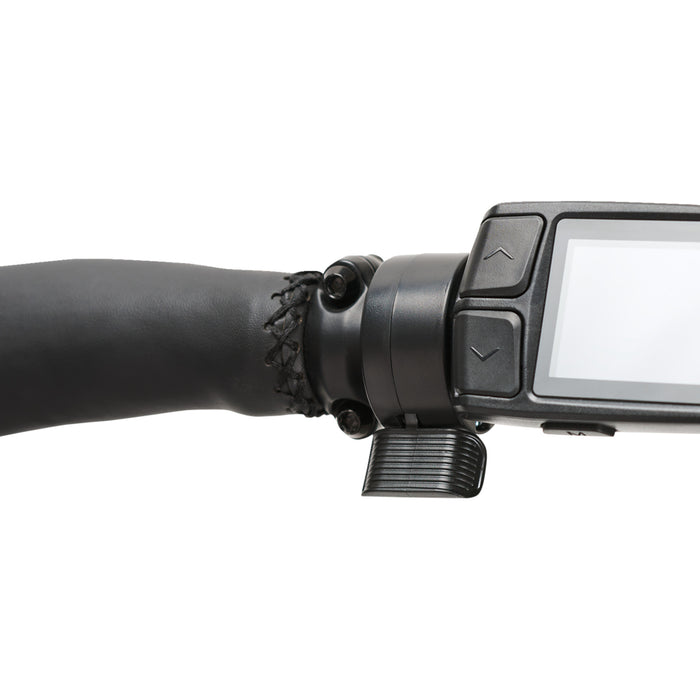

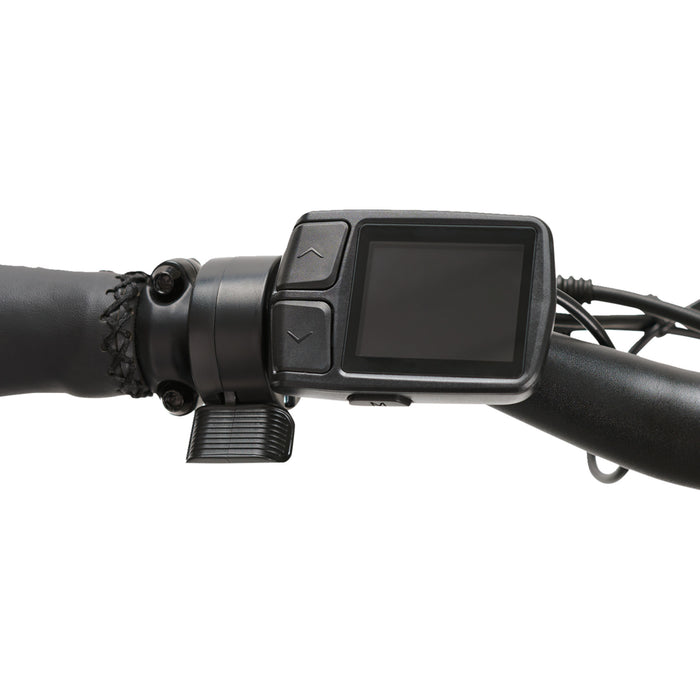

• Display Unit — 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

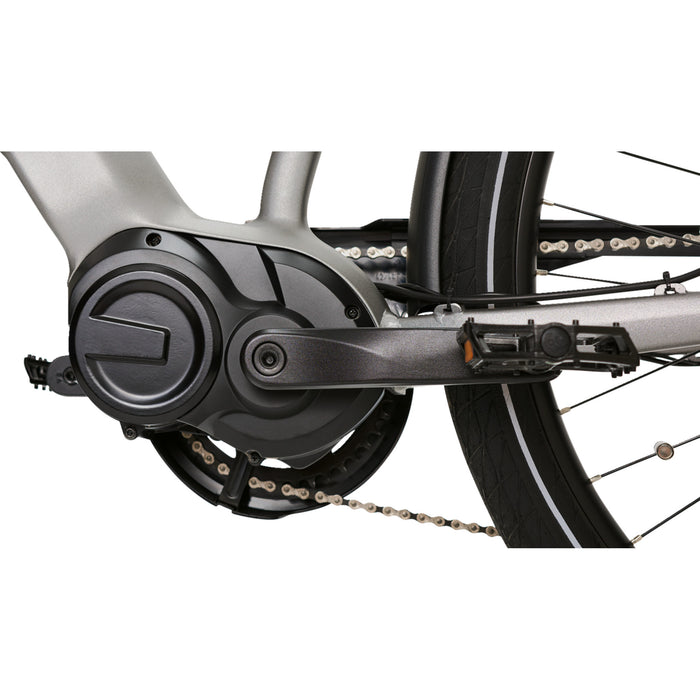

• Motor — iGO Drive LS 350W mid motor, 48V
• Torque — up to 100 Nm

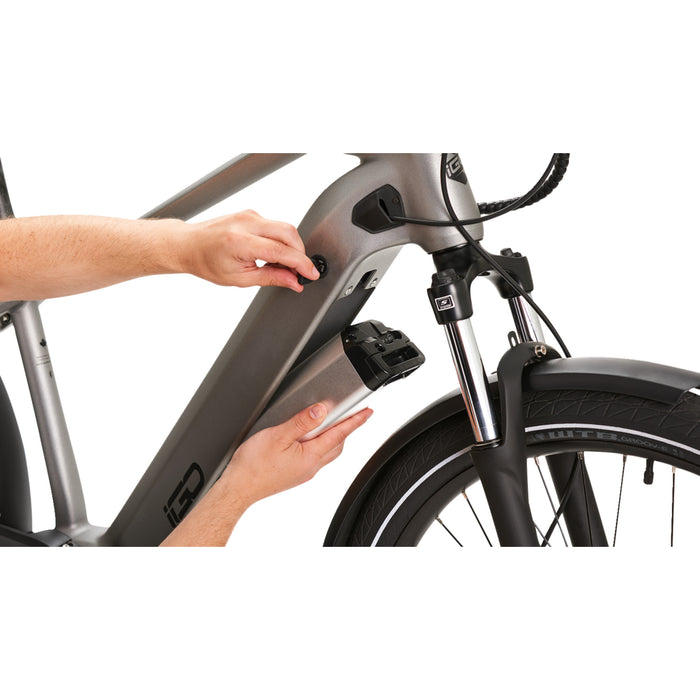

• Battery — 5000mAh Samsung cell, removable with security lock (48 V | 15 Ah | 720 Wh)
• Range — 56 miles*
• Pedal Assist System — Eco/Tour/Sport/Turbo/Boost color coded per PAS level
• Throttle — On-Demand, Removable
• Sensor — Internal Torque, Cadence, Speed
• Class — Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**
• Accessories Included

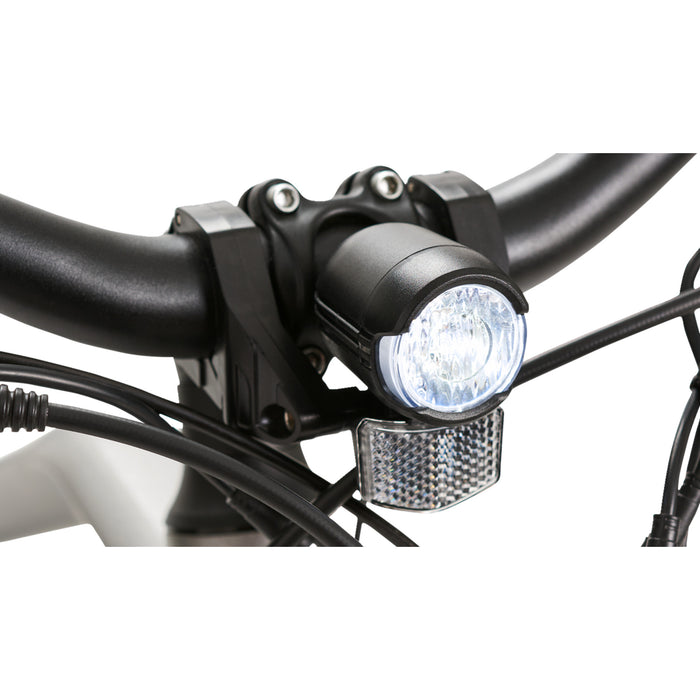

• Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger
• Notes
• Battery Weight — 7.7 lb
• Weight Capacity — 275 lb
• *Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.
• **Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).
