Features

• Programmed to be 'multi class switchable', this #1 feature allows parameters to be instantly reconfigured at the touch of a button to conform to Class 1, 2, or 3 regulations
• Easy to mount frame with ERGOFIT design for maximum versatility and comfort
• Effortless control and enhanced safety and security features allow freedom to simply enjoy the ride —perfect introduction to active transport, well suited for everyday use
• With up to 55 Nm of torque, the 500 W throttle enabled motor system delivers a safe, consistent and dependable riding experience
• 720 Wh removable integrated battery with security lock providing up to 56 mi* range —ready everyday with plug and play charging and all day range
• Pedal assist segments — Eco/Tour/Sport/Turbo/Boost user programmable and seamless intelligent riding experience
• Frameset

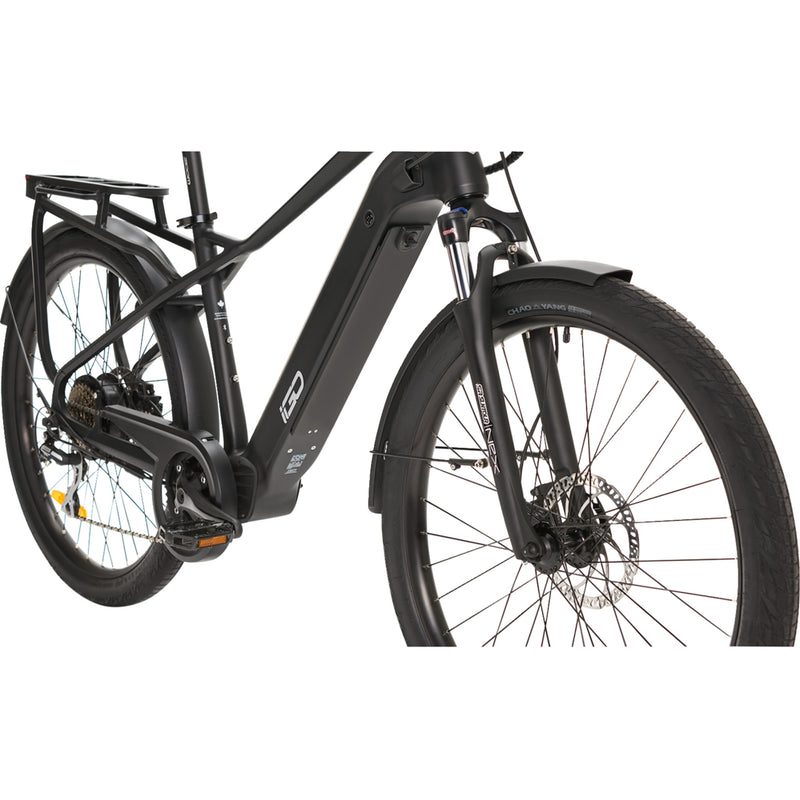

• Frame — Hydroformed Alloy, 27.5" ERGOFIT frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
• Fork — RST VOLANT 700C, 80 mm travel, lockout with quick release

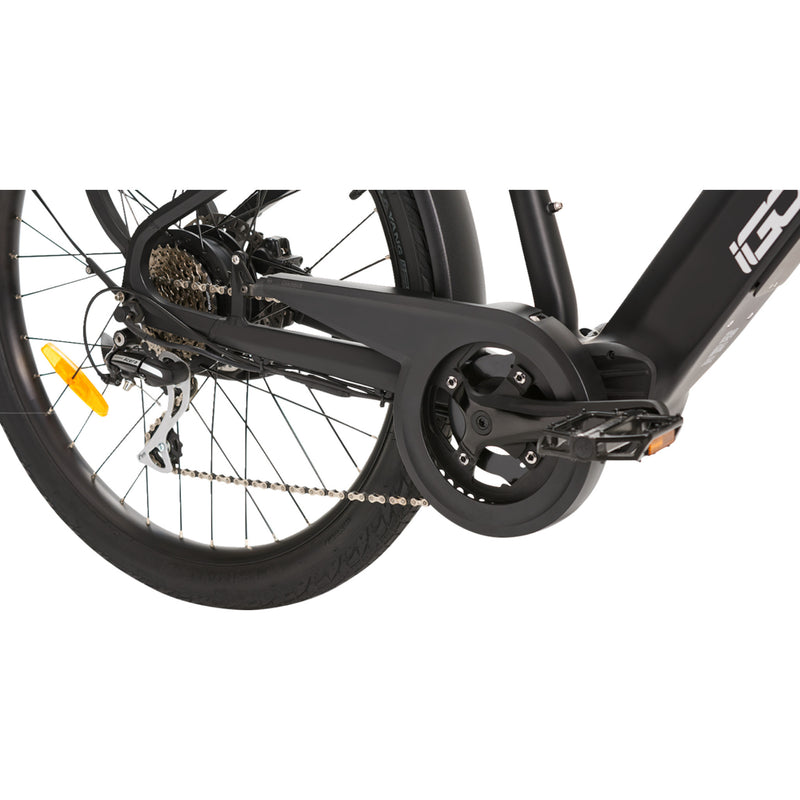

• Drivetrain
• Shifters — Shimano Altus 8-Speed
• Chainrings — 42T with Narrow Wide Teeth
• Chain — KMC E8-S

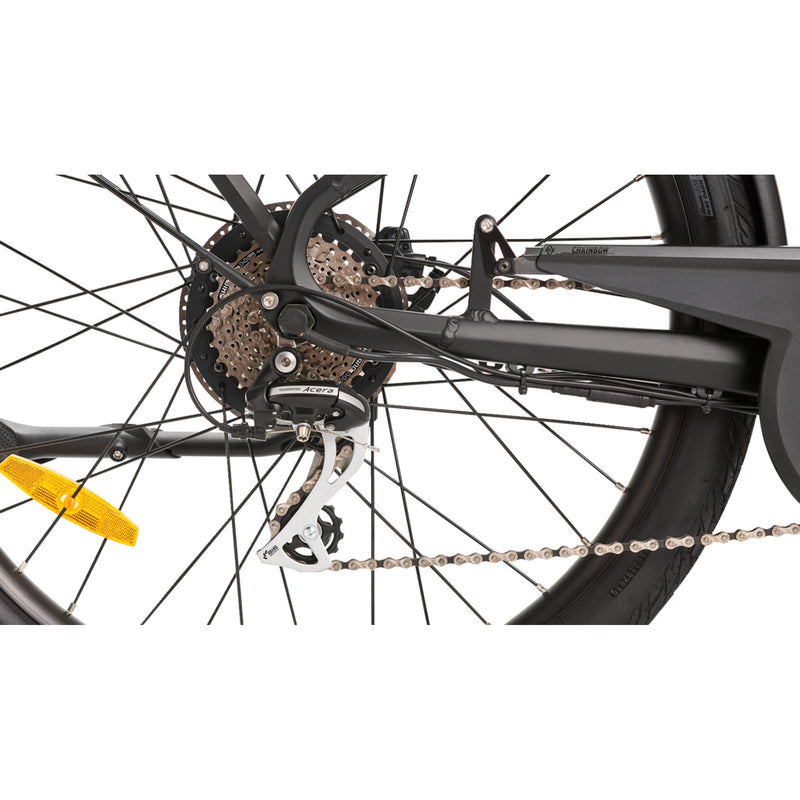

• Rear Derailleur — Shimano Acera 8-Speed
• Cassette — Shimano Acera 8-Speed 11-32T
• Components
• Handlebar — 630 mm, 21 mm rise, 31.8 mm diameter
• Grips — VELO, Ergonomic, 135 mm

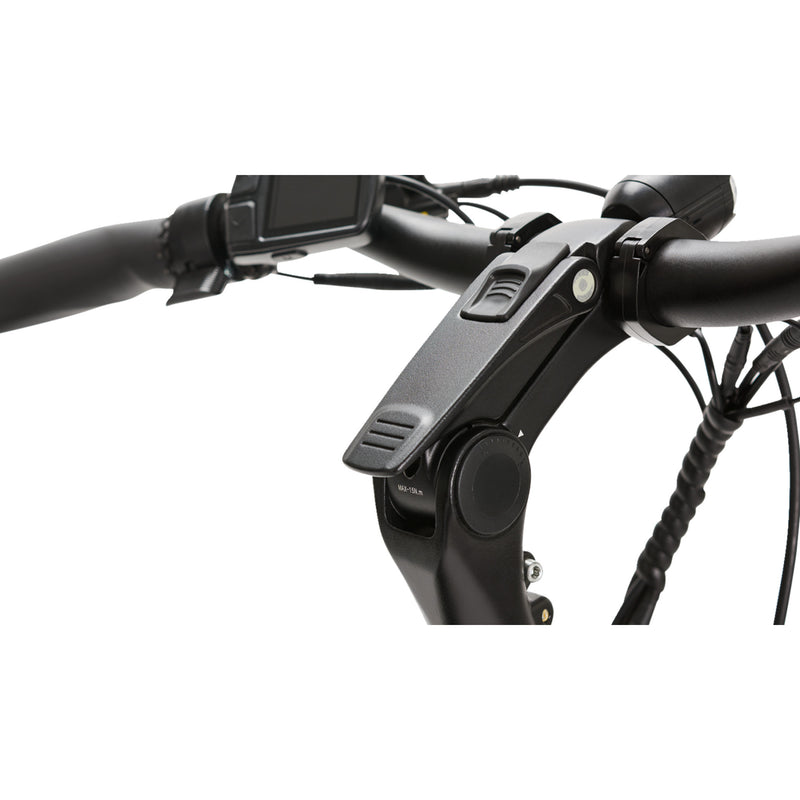

• Stem — Toolless adjustable threadless with 0 to 90° rise
• Seat Post — 31.6 mm (350 mm)
• Saddle — Selle Royal Rio

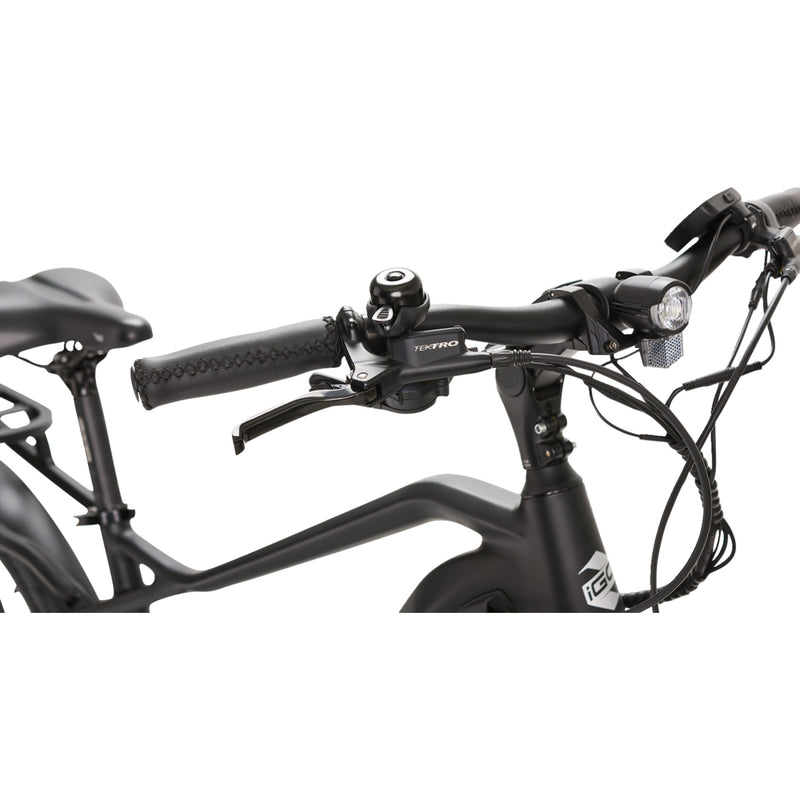

• Brake Levers — Tektro HDE350 with power cut-off switch
• Brake Calipers — Tektro HDE350 Hydraulic Disc
• Rotors — 180 mm
• Wheels
• Tires — Chaoyang 27.5” x 2.4”
• Rims — 27.5”, Dual Wall Alloy, Black
• Electric Technology
• Bluetooth — iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts
• Display Unit — 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

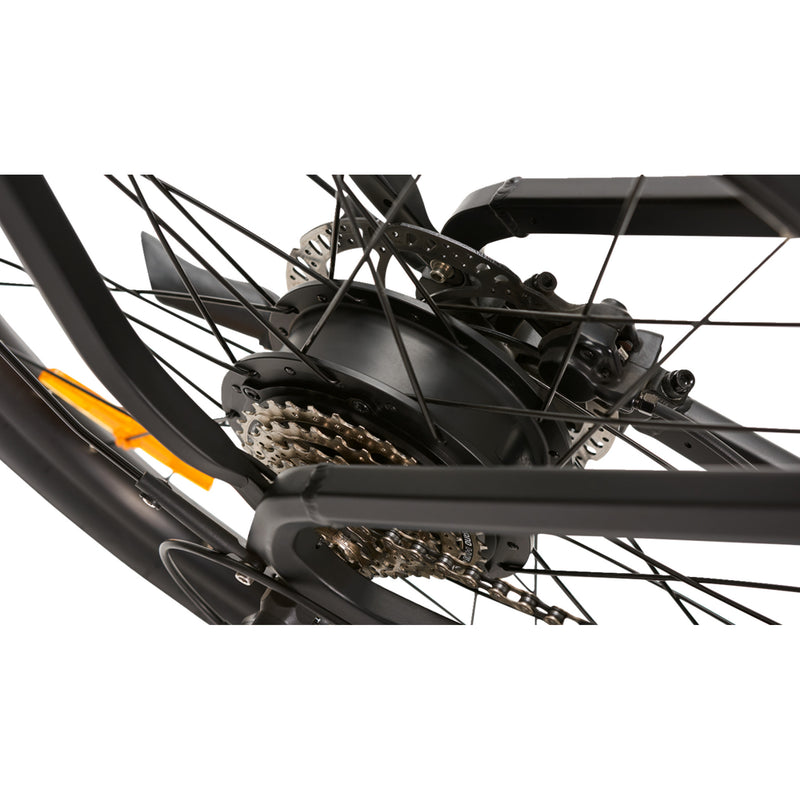

• Motor — iGO Drive LE 500W geared rear hub motor, 48V
• Torque — up to 55 Nm

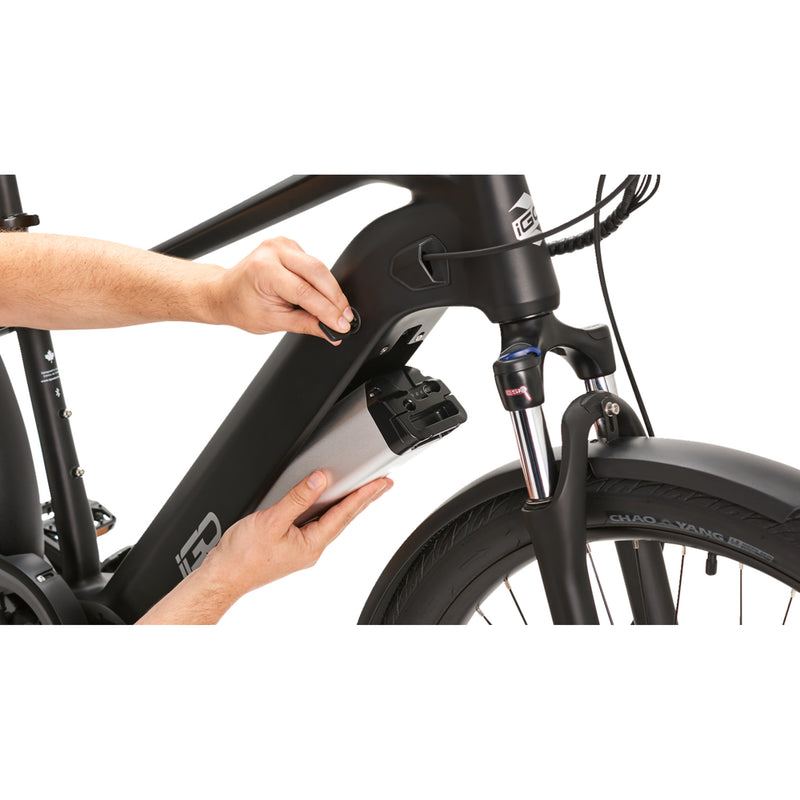

• Battery — 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)
• Range — 69 mi*
• Pedal Assist System — Eco/Tour/Sport/Turbo/Boost color coded per PAS level
• Throttle — On-Demand, Removable
• Sensor — Electronic 32 pulse Cadence Sensor integrated into the bottom bracket
• Class — Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**
• Accessories Included

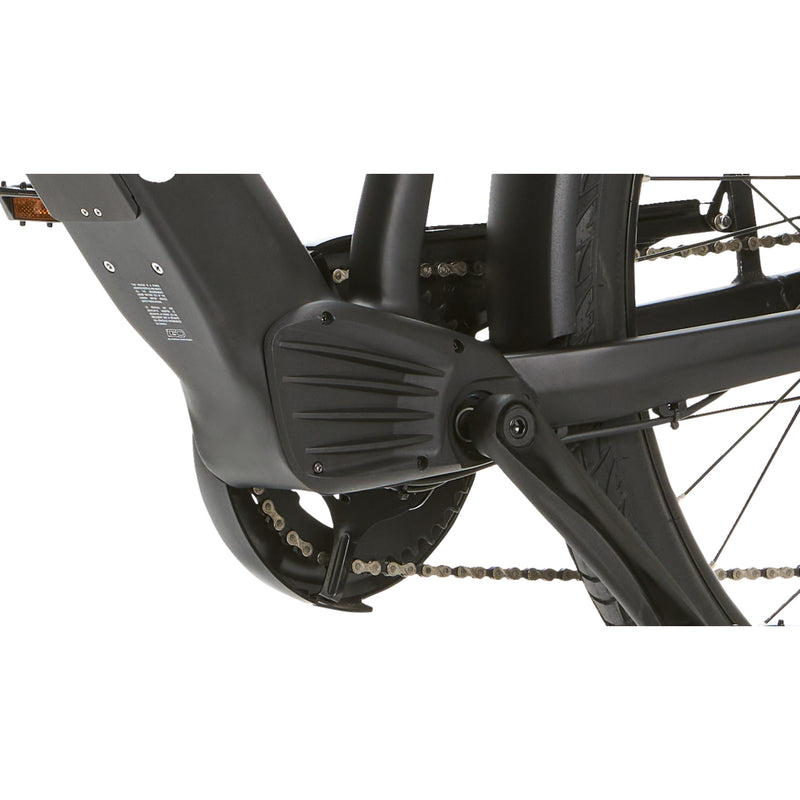

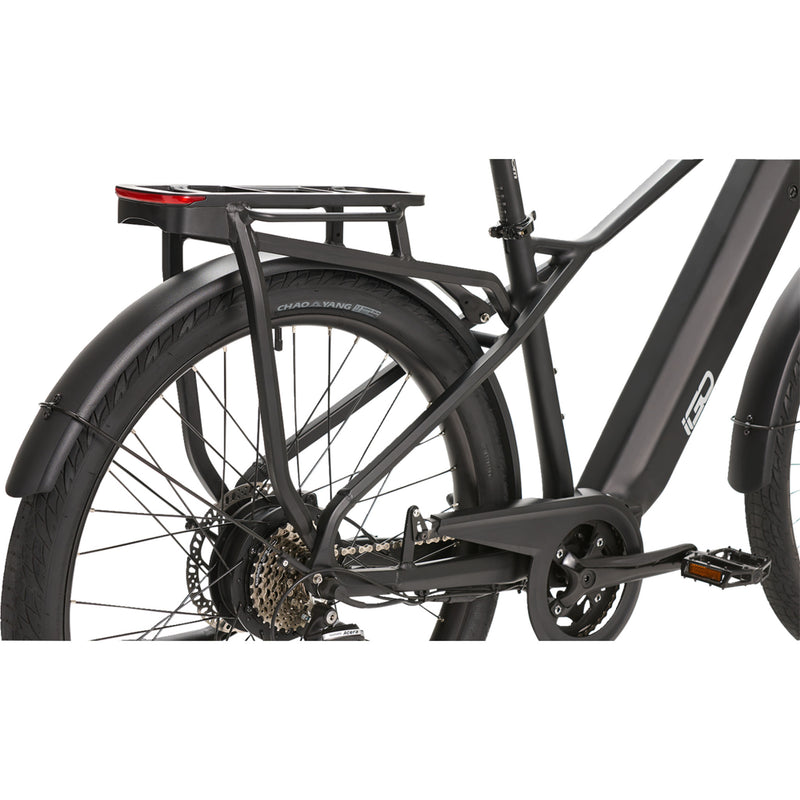

• Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear, Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger
• Notes
• Battery Weight — 7.7 lb
• Weight Capacity — 275 lb
• *Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.
• **Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).

Specs

Part Notes

• Bike Weight (Without Battery) — 56.7 lb
