Hot Rods

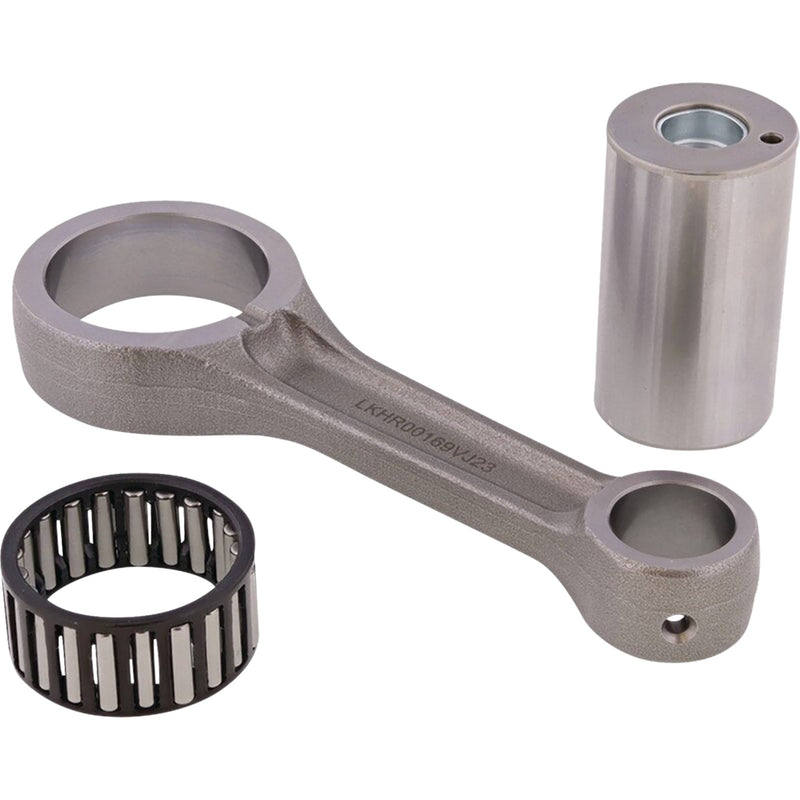

HOT RODS 0923-0722 HR00172 Connecting Rod Kit yamaha grizzly yfm700 | kodiak yfm700 | wolverine yxe70
MPN:
HR00172
SKU:
0923-0722
Hot Rods
HOT RODS 0923-0722 HR00172 Connecting Rod Kit yamaha grizzly yfm700 | kodiak yfm700 | wolverine yxe70
MPN:
HR00172
SKU:
0923-0722
Availability:
Only 2 left!
Heavy-duty OE replacement connecting rods
Certified 8620 AISI steel provides superior strength
Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
Features the latest in caged needle roller bearing designs for high rpm longevity
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
Double honing produces an ultra-round bearing surface for reliability at high rpm
Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
Compatible with Hot Rods and OE crankshafts
Made in the USA
Specs
Product Name
Connecting Rod Kit
Engine Type
4-Cycle
Riding Style
ATV
Material
8620 Steel
Riding Style
UTV
Units
Kit
Displacement
700 cc
Original price
$338.95
-
Original price
$338.95
Original price
$338.95
$338.95
-
$338.95
Current price
$338.95
Product Details
Features
- Heavy-duty OE replacement connecting rods
- Certified 8620 AISI steel provides superior strength
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
- Features the latest in caged needle roller bearing designs for high rpm longevity
- Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
- Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
- Double honing produces an ultra-round bearing surface for reliability at high rpm
- Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in the USA
Specs
| Product Name | Connecting Rod Kit |
| Engine Type | 4-Cycle |
| Riding Style | ATV |
| Material | 8620 Steel |
| Riding Style | UTV |
| Units | Kit |
| Displacement | 700 cc |
Product Description
Features
- Heavy-duty OE replacement connecting rods
- Certified 8620 AISI steel provides superior strength
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
- Features the latest in caged needle roller bearing designs for high rpm longevity
- Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
- Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
- Double honing produces an ultra-round bearing surface for reliability at high rpm
- Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in the USA
Specs
| Product Name | Connecting Rod Kit |
| Engine Type | 4-Cycle |
| Riding Style | ATV |
| Material | 8620 Steel |
| Riding Style | UTV |
| Units | Kit |
| Displacement | 700 cc |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0923-0722 | HR00172 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
