Product Details
Features
- Certified 8620 AISI steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated

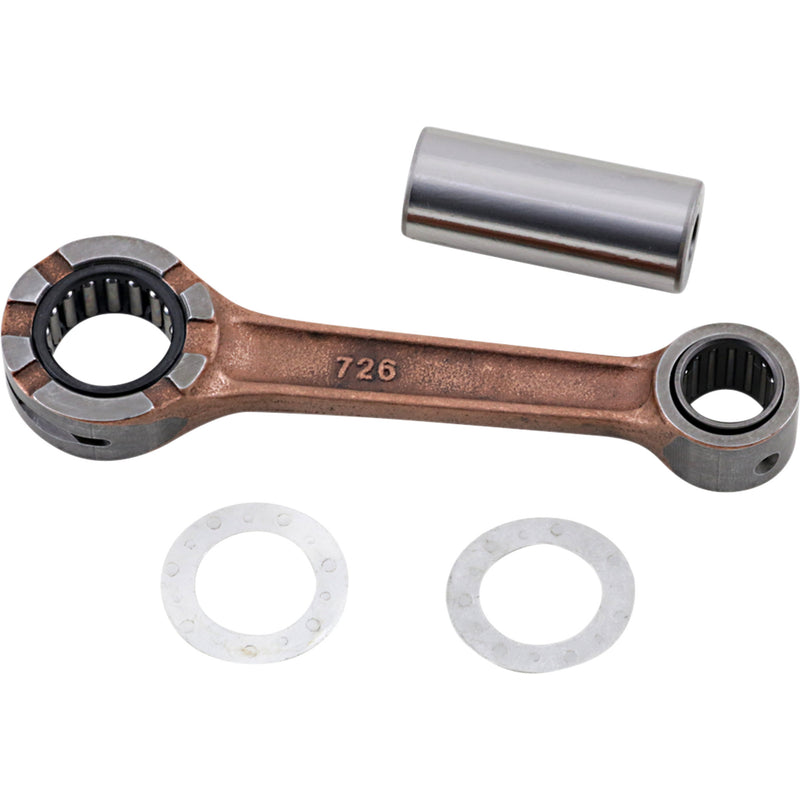

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in USA
Specs
| Units | Kit |
| Material | 8620 Steel |
| Riding Style | Off-Road |
| Displacement | 250 cc |
| Engine Type | 2-Cycle |
| Product Name | Connecting Rod Kit |
Part Notes
- Connecting Rod Big End I.D. 31.000 mm
- Connecting Rod Big End Width: 17.000 mm
- Connecting Rod Center-to-Center: 125.000 mm
- Connecting Rod Small End I.D. 22.000 mm
- Connecting Rod Small End Width: 20.000 mm
- Thrust Washer Thickness: 1.000 mm
- Pin Length: 46.000 mm
- Kit Includes:
- • Connecting Rod
- • Crank Pin
- • Crank Pin Bearing
- • Wrist Pin Bearing
- • Thrust Washers
Features
- Certified 8620 AISI steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in USA
Specs
| Units | Kit |
| Material | 8620 Steel |
| Riding Style | Off-Road |
| Displacement | 250 cc |
| Engine Type | 2-Cycle |
| Product Name | Connecting Rod Kit |
Part Notes
- Connecting Rod Big End I.D. 31.000 mm
- Connecting Rod Big End Width: 17.000 mm
- Connecting Rod Center-to-Center: 125.000 mm
- Connecting Rod Small End I.D. 22.000 mm
- Connecting Rod Small End Width: 20.000 mm
- Thrust Washer Thickness: 1.000 mm
- Pin Length: 46.000 mm
- Kit Includes:
- • Connecting Rod
- • Crank Pin
- • Crank Pin Bearing
- • Wrist Pin Bearing
- • Thrust Washers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0923-0580 | 8726 | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Certified 8620 AISI steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in USA
Specs
| Units | Kit |
| Material | 8620 Steel |
| Riding Style | Off-Road |
| Displacement | 250 cc |
| Engine Type | 2-Cycle |
| Product Name | Connecting Rod Kit |
Part Notes
- Connecting Rod Big End I.D. 31.000 mm
- Connecting Rod Big End Width: 17.000 mm
- Connecting Rod Center-to-Center: 125.000 mm
- Connecting Rod Small End I.D. 22.000 mm
- Connecting Rod Small End Width: 20.000 mm
- Thrust Washer Thickness: 1.000 mm
- Pin Length: 46.000 mm
- Kit Includes:
- • Connecting Rod
- • Crank Pin
- • Crank Pin Bearing
- • Wrist Pin Bearing
- • Thrust Washers
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0923-0580 | 8726 | In Stock |
