Product Details
Features
- Certified 8620 AISI steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated

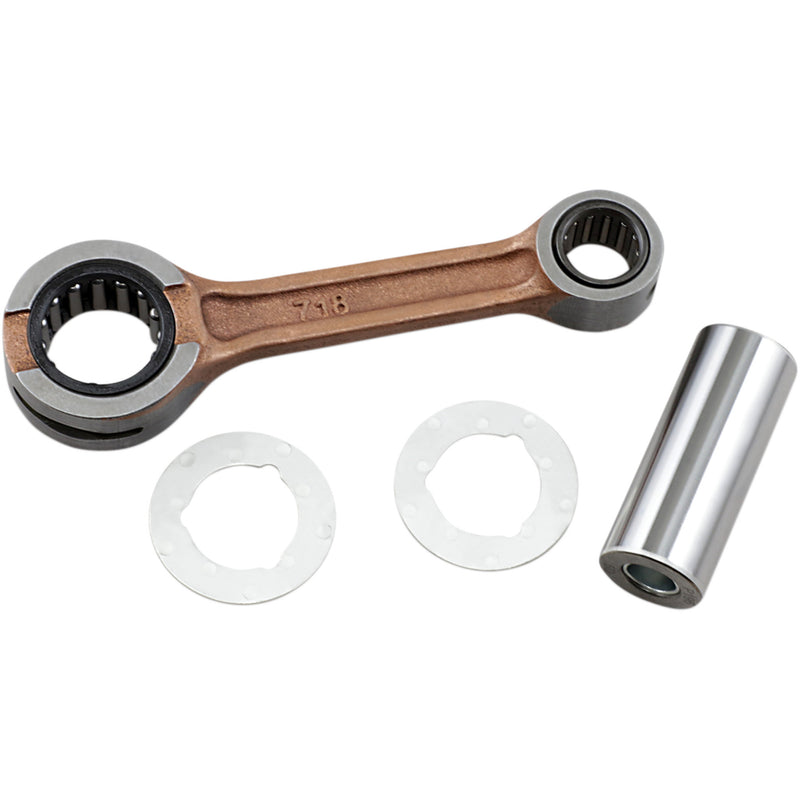

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in USA
Specs
| Units | Kit |
| Displacement | 125 cc |
| Riding Style | Off-Road |
| Engine Type | 2-Cycle |
| Material | 8620 Steel |
| Product Name | Connecting Rod Kit |
Part Notes
- Connecting Rod Big End I.D. 29.000 mm
- Connecting Rod Big End Width: 17.000 mm
- Connecting Rod Center-to-Center: 102.000 mm
- Connecting Rod Small End I.D. 19.000 mm
- Connecting Rod Small End Width: 16.000 mm
- Thrust Washer Thickness: 1.000 mm
- Pin Length: 54.500 mm
- Kit Includes:
- • Connecting Rod
- • Crank Pin
- • Crank Pin Bearing
- • Wrist Pin Bearing
- • Thrust Washers
Features
- Certified 8620 AISI steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in USA
Specs
| Units | Kit |
| Displacement | 125 cc |
| Riding Style | Off-Road |
| Engine Type | 2-Cycle |
| Material | 8620 Steel |
| Product Name | Connecting Rod Kit |
Part Notes
- Connecting Rod Big End I.D. 29.000 mm
- Connecting Rod Big End Width: 17.000 mm
- Connecting Rod Center-to-Center: 102.000 mm
- Connecting Rod Small End I.D. 19.000 mm
- Connecting Rod Small End Width: 16.000 mm
- Thrust Washer Thickness: 1.000 mm
- Pin Length: 54.500 mm
- Kit Includes:
- • Connecting Rod
- • Crank Pin
- • Crank Pin Bearing
- • Wrist Pin Bearing
- • Thrust Washers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0923-0564 | 8718 | In Stock |
