HOT RODS 0923-0226 8669 Connecting Rod Kit husqvarna | ktm

Features

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Feature the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in the USA

Specs

Units	Kit
Material	8620 Steel
Engine Type	2-Cycle
Riding Style	Street
Displacement	250 cc
Riding Style	Adventure Touring / Dual-Sport
Displacement	300 cc
Product Name	Connecting Rod Kit
Riding Style	Off-Road

Part Notes

• Connecting Rod Big End I.D. 31.000 mm
• Connecting Rod Big End Width: 16.900 mm
• Connecting Rod Center-to-Center: 124.900 mm
• Connecting Rod Small End I.D. 22.000 mm
• Connecting Rod Small End Width: 16.900 mm
• Thrust Washer Thickness: 1.000 mm
• Pin Length: 59.800 mm

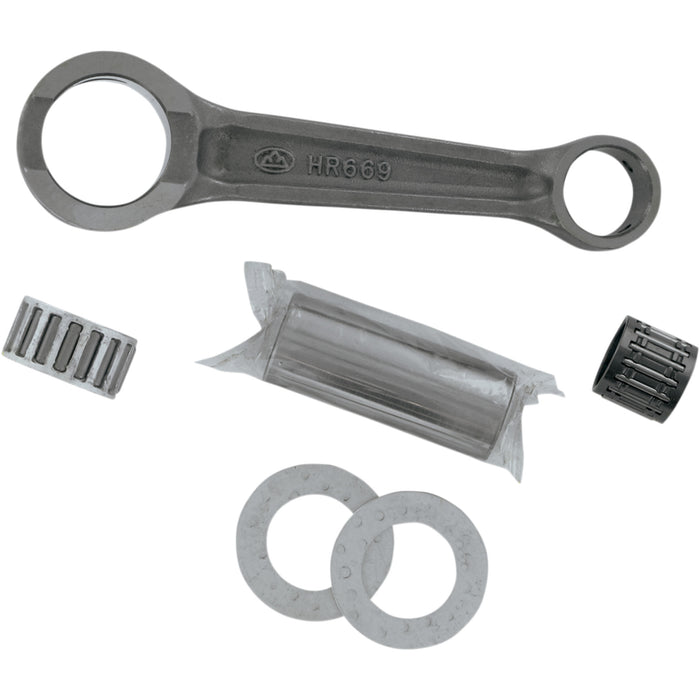

• Kit Includes:
• • Connecting Rod
• • Crank Pin
• • Crank Pin Bearing
• • Wrist Pin Bearing
• • Thrust Washers

2004-2011	KTM	300 EXC
2004-2014, 2017-2019	KTM	300 XC
2003-2021	KTM	250 SX
2004-2015, 2018-2019	KTM	250 XC
2004-2018	KTM	250 XC-W
2020-2021	KTM	250 XC TPI
2006-2007	KTM	250 SXS-F
2004-2011	KTM	300 EXC Six Days
2004-2014, 2017-2018	KTM	300 XC-W
2004-2011	KTM	300 MXC
2004-2011	KTM	250 EXC
2018-2021	KTM	250 XC-W TPI
2019-2020	KTM	300 XC-W TPI
2020	KTM	300 XC-W TPI Erzberodeo
2015	KTM	Freeride 250 R
2003-2004	KTM	250 SXS
2019-2020	KTM	300 XC-W TPI Six Days
2020	KTM	300 XC TPI
2014-2016	Husqvarna	TC 250
