HOT RODS 0923-0062 8641 Connecting Rod Kit yamaha

Features

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Feature the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in the USA

Specs

Part Notes

• Connecting Rod Big End I.D. 42.000 mm
• Connecting Rod Big End Width: 19.950 mm
• Connecting Rod Center-to-Center: 101.500 mm
• Connecting Rod Small End I.D. 20.000 mm
• Connecting Rod Small End Width: 18.050 mm
• Thrust Washer Thickness: 0.500 mm
• Pin Length: 60.800 mm
• Not for fuel injected R or X models.

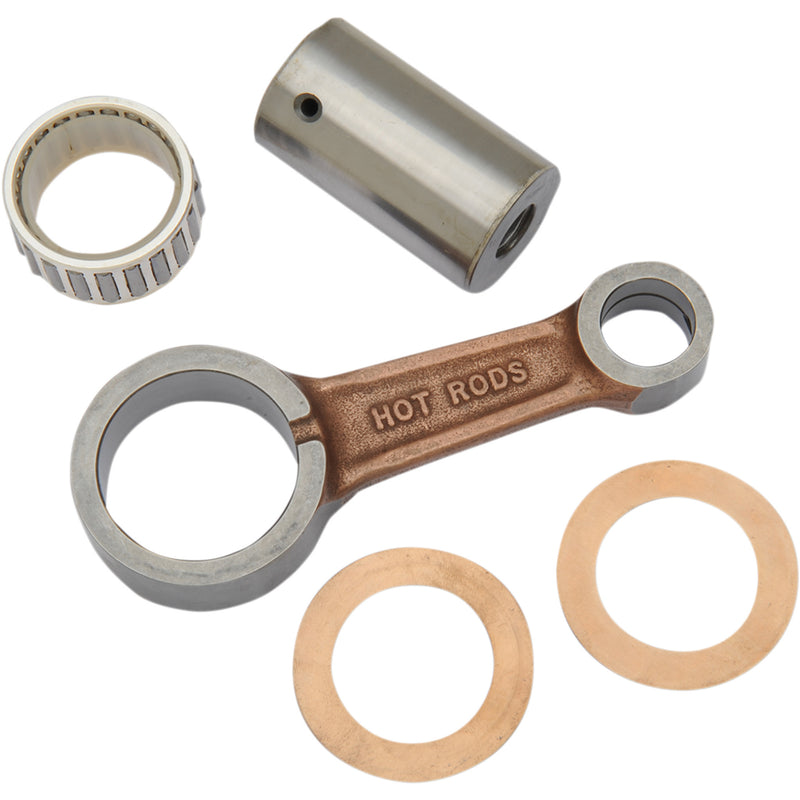

• Kit Includes:
• • Connecting Rod
• • Crank Pin
• • Crank Pin Bearing
• • Thrust Washers
