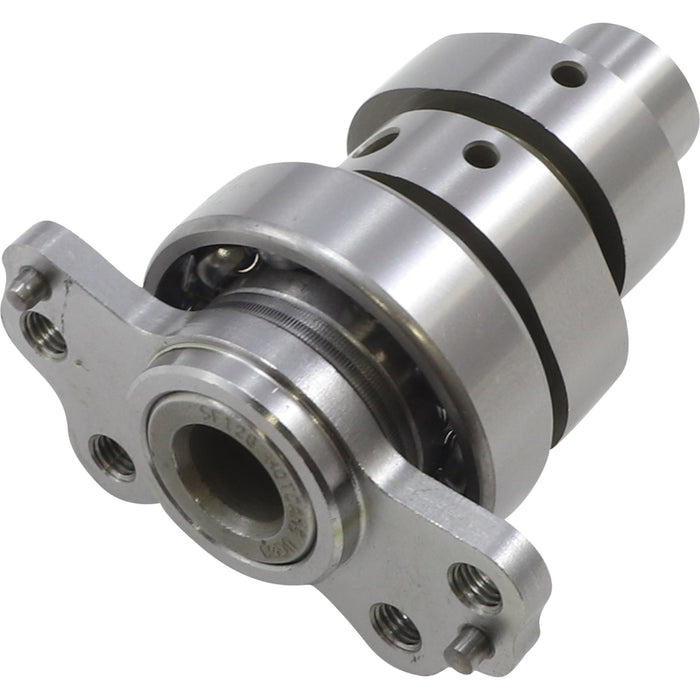

HOT CAMS 0925-0508 4133-3 Camshaft Stage 3 Camshaft - Single Cam - Stage 3 - Yamaha

Features

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Designed for peak top end horsepower
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end.

Specs

Exhaust Lobe Centerline	102°
Riding Style	ATV
Application	Intake
Type	Stage 3
Units	Each
Application	Exhaust
Exhaust Lift	8.60 mm
Intake Lift	10.30 mm
Intake Lobe Centerline	112.500°
Intake Duration	268°
Exhaust Duration	255°
Product Name	Camshaft

Part Notes

• Drastically improves top-end with over rev, with almost no loss in high rpm power.
• Uses stock valve springs and rockers.
• Uses stock auto-decompression mechanism.
• For single cam engines.
• Intake Valve Lash: 0.100 mm
• Exhaust Valve Lash: 0.180 mm.

2009, 2011-2021	Yamaha	Raptor 700R 4x2
2009-2021	Yamaha	Raptor 700R SE 4x2
