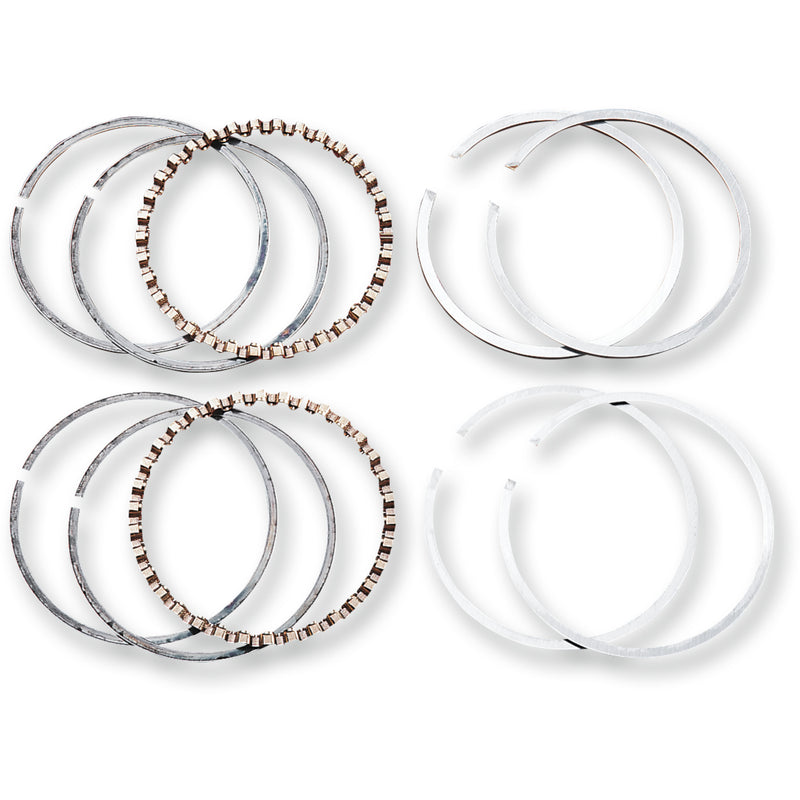

Hastings Piston Ring Set - 6164010 For Harley Motorcycles 1988-2003
MPN:
6164010
SKU:
DS-750641
Hastings
Hastings Piston Ring Set - 6164010 For Harley Motorcycles 1988-2003
MPN:
6164010
SKU:
DS-750641
Availability:
36 in stock, ready to be shipped
Includes top compression rings, second compression rings, and oil control rings
Top Compression Rings are Barrel Face
Cast coated
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second Compression Ring are Reverse Torsional Taper Face
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Oil Control Rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Includes enough rings for two pistons (unless noted).
Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
Style
Replacement
Units
Set
Bore Oversize
+0.010"
Product Name
Piston Ring Set
Bore - Oversize
+0,010"
Bore Size
3.498"
Riding Style
Street
Ring Material
Cast
Part Notes
Kit Includes:
• 2x Top Compression Rings
• 2x Second Compression Rings
• 2x Expander Rings
• 4x Steel Rails
