Hastings

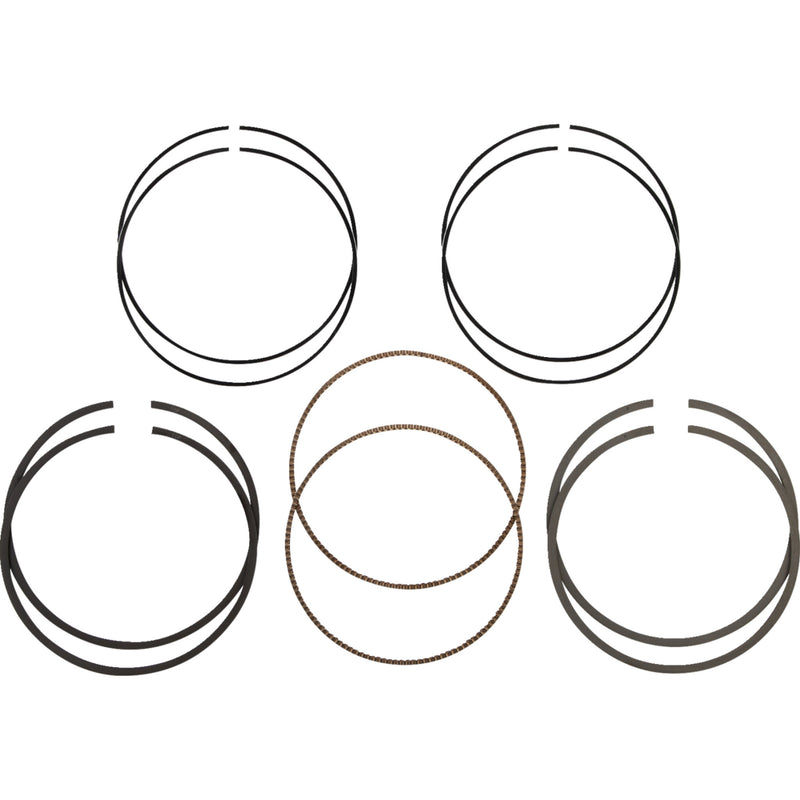

Hastings Piston Ring Set - 2C523113 For Harley Motorcycles 2017-2026
MPN:
2C523113
SKU:
0912-0960
Hastings
Hastings Piston Ring Set - 2C523113 For Harley Motorcycles 2017-2026
MPN:
2C523113
SKU:
0912-0960
Availability:
Out of stock
Includes top compression rings, second compression rings, and oil control rings
Top compression rings are Barrel Face
Coated using PVD (Physical Vapor Deposition) process
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second compression rings are Napier
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Oil control rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Includes enough rings for two pistons.
Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
Riding Style
Street
Displacement
107"
Type
Replacement
Product Name
Piston Ring Set
Bore Size
3.937"
Piston Size
+0.005"
Units
Set
Part Notes
Kit Includes:
• 2x Top Compression Rings
• 2x Second Compression Rings
• 2x Expander Rings
• 4x Steel Rails
Sold out
Original price
$89.95
-
Original price
$89.95
Original price
$89.95
$89.95
-
$89.95
Current price
$89.95
Product Details
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top compression rings are Barrel Face
- Coated using PVD (Physical Vapor Deposition) process
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second compression rings are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil control rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Riding Style | Street |
| Displacement | 107" |
| Type | Replacement |
| Product Name | Piston Ring Set |
| Bore Size | 3.937" |
| Piston Size | +0.005" |
| Units | Set |
Part Notes
- Kit Includes:
- • 2x Top Compression Rings
- • 2x Second Compression Rings
- • 2x Expander Rings
- • 4x Steel Rails
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top compression rings are Barrel Face
- Coated using PVD (Physical Vapor Deposition) process
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second compression rings are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil control rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Riding Style | Street |
| Displacement | 107" |
| Type | Replacement |
| Product Name | Piston Ring Set |
| Bore Size | 3.937" |
| Piston Size | +0.005" |
| Units | Set |
Part Notes
- Kit Includes:
- • 2x Top Compression Rings
- • 2x Second Compression Rings
- • 2x Expander Rings
- • 4x Steel Rails
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0912-0960 | 2C523113 | Out of Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top compression rings are Barrel Face
- Coated using PVD (Physical Vapor Deposition) process
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second compression rings are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil control rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Riding Style | Street |
| Displacement | 107" |
| Type | Replacement |
| Product Name | Piston Ring Set |
| Bore Size | 3.937" |
| Piston Size | +0.005" |
| Units | Set |
Part Notes
- Kit Includes:
- • 2x Top Compression Rings
- • 2x Second Compression Rings
- • 2x Expander Rings
- • 4x Steel Rails
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0912-0960 | 2C523113 | Out of Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
