Feuling Parts

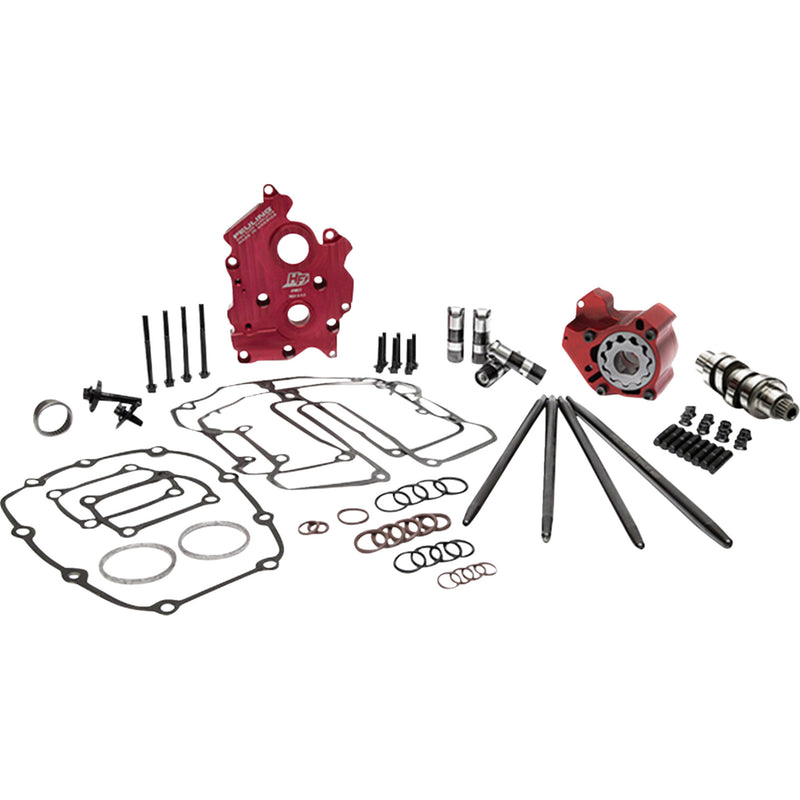

Feuling Parts Reaper Camchest Kit - 7273 For Harley Touring 2017-2026
MPN:
7273
SKU:
0925-1622
Feuling Parts
Feuling Parts Reaper Camchest Kit - 7273 For Harley Touring 2017-2026
MPN:
7273
SKU:
0925-1622
Availability:
Only 4 left!
487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
487 Reaper Camshaft
Bolt-in
Chain Drive
Camshaft for 114" and 117" engine
Responds very well to increased bore and or compression
Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
RPM range 2,250 - 6,100
Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
Cam Installation Kit
Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Race Series® Lifters
Hydraulic roller lifters, standard OD (0.8420-0.8423)
Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
One Piece Pushrods
Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
Race Series® Oil Pump
Increase oil pressure, scavenge volume and engine oil flow
30% more pressure gear volume over stock
53% more scavenge gear volume over stock
42% more scavenge volume with port sizing, matched passages and holes to the engine case
46% more oil volume to the crankshaft and connecting rod bearing
15°- 25° cooler engine temperatures
15°- 30° cooler oil temperatures
10-30 more PSI of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Magnets in oil pump to help protect gears and pressure relief valve
Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
FEULING test results show a 50% reduction of engine sump oil level
High Flow Camplate
Billet 7075 aluminum
Bolts into stock location
Made in the USA
Feuling does not recommend tuning beyond stock emissions standards.
Specs
Exhaust Duration
241.5°
Exhaust Open
44°
Exhaust Lift at TDC
0.146"
Product Name
Camchest Kit
Exhaust Lift
0.487"
Intake Close
37°
Riding Style
Street
Exhaust Lobe Centerline
103.25°
Intake Lift
0.478"
Exhaust Close
17.5°
Intake Duration
237°
Type
Chain Drive
Units
Kit
Grind
487 Series
Intake Lobe Centerline
98.5°
Model
Reaper
Intake Lift at TDC
0.180"
Intake Open
20.5°
Application
Water Cooled
Part Notes
Not for VVT water cooled engines.
Kit Includes:
• 487 Reaper Chain Drive Camshaft
• Cam Installation Kit
• Race Series® Lifters
• One Piece HP+® Pushrods
• Race Series® Oil Pump
• High Flow Camplate
• ARP Rocker Studs and Nuts
• Camplate/Oil Pump Fasteners
Original price
$2,049.95
-
Original price
$2,049.95
Original price
$2,049.95
$2,049.95
-
$2,049.95
Current price
$2,049.95
Product Details
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Lifters
- Hydraulic roller lifters, standard OD (0.8420-0.8423)
- Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
- One Piece Pushrods
- Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- FEULING test results show a 50% reduction of engine sump oil level
- High Flow Camplate
- Billet 7075 aluminum
- Bolts into stock location
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Exhaust Duration | 241.5° |
| Exhaust Open | 44° |
| Exhaust Lift at TDC | 0.146" |
| Product Name | Camchest Kit |
| Exhaust Lift | 0.487" |
| Intake Close | 37° |
| Riding Style | Street |
| Exhaust Lobe Centerline | 103.25° |
| Intake Lift | 0.478" |
| Exhaust Close | 17.5° |
| Intake Duration | 237° |
| Type | Chain Drive |
| Units | Kit |
| Grind | 487 Series |
| Intake Lobe Centerline | 98.5° |
| Model | Reaper |
| Intake Lift at TDC | 0.180" |
| Intake Open | 20.5° |
| Application | Water Cooled |
Part Notes
- Not for VVT water cooled engines.
- Kit Includes:
- • 487 Reaper Chain Drive Camshaft
- • Cam Installation Kit
- • Race Series® Lifters
- • One Piece HP+® Pushrods
- • Race Series® Oil Pump
- • High Flow Camplate
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Lifters
- Hydraulic roller lifters, standard OD (0.8420-0.8423)
- Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
- One Piece Pushrods
- Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- FEULING test results show a 50% reduction of engine sump oil level
- High Flow Camplate
- Billet 7075 aluminum
- Bolts into stock location
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Exhaust Duration | 241.5° |
| Exhaust Open | 44° |
| Exhaust Lift at TDC | 0.146" |
| Product Name | Camchest Kit |
| Exhaust Lift | 0.487" |
| Intake Close | 37° |
| Riding Style | Street |
| Exhaust Lobe Centerline | 103.25° |
| Intake Lift | 0.478" |
| Exhaust Close | 17.5° |
| Intake Duration | 237° |
| Type | Chain Drive |
| Units | Kit |
| Grind | 487 Series |
| Intake Lobe Centerline | 98.5° |
| Model | Reaper |
| Intake Lift at TDC | 0.180" |
| Intake Open | 20.5° |
| Application | Water Cooled |
Part Notes
- Not for VVT water cooled engines.
- Kit Includes:
- • 487 Reaper Chain Drive Camshaft
- • Cam Installation Kit
- • Race Series® Lifters
- • One Piece HP+® Pushrods
- • Race Series® Oil Pump
- • High Flow Camplate
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1622 | 7273 | In Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
