Feuling Parts

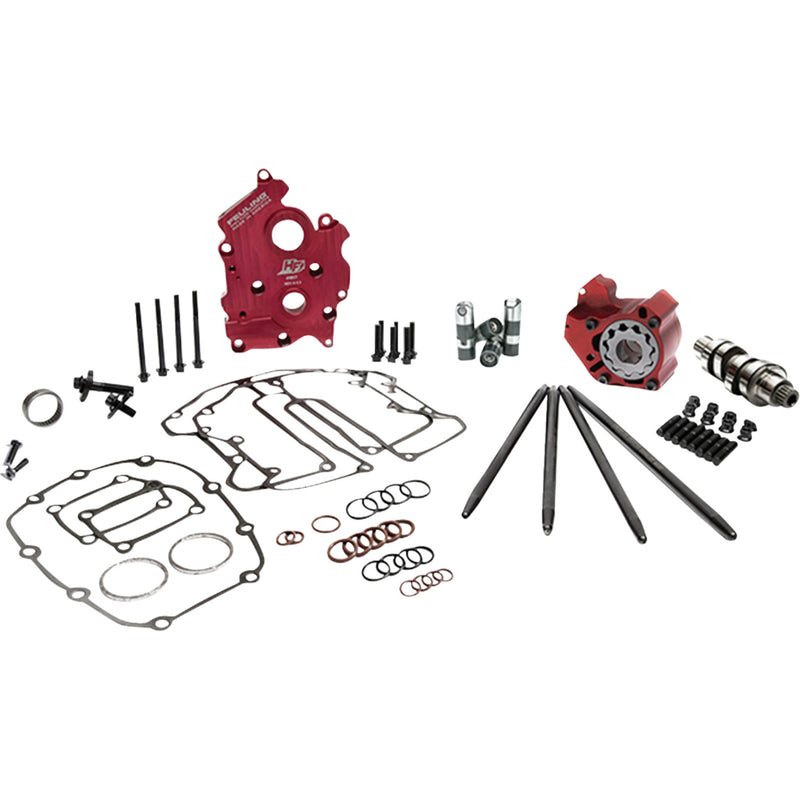

Feuling Parts Reaper Camchest Kit - 7272ST For Harley Motorcycles 2017-2026
MPN:
7272ST
SKU:
0925-1621
Feuling Parts
Feuling Parts Reaper Camchest Kit - 7272ST For Harley Motorcycles 2017-2026
MPN:
7272ST
SKU:
0925-1621
Availability:
6 in stock, ready to be shipped
487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Short Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
487 Reaper Camshaft
Bolt in
Chain Drive
RPM range 2,250 - 6,100
Camshaft for 114" and 117" engine
Responds very well to increased bore and or compression
Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
Cam Installation Kit
Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Race Series® Short Travel Lifters
Hydraulic lifters made from machined steel designed with 0.115" of travel
One Piece Pushrods
HP+ 0.165 wall thickness, +0.040, one piece
Race Series® Oil Pump
High flow 2.250 Chrome Moly gerotor gears
27% more pressure and scavenge gear volume over stock
42% more scavenge volume with matched passages, port sizing and holes to the engine case
46% more oil volume to the crankshaft and connecting rod bearing
15°- 25° cooler engine temperatures
15°- 30° cooler oil temperatures
10-30 more PSI of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Magnets in oil pump to help protect gears and pressure relief valve
FEULING® test results show a 50% reduction of engine sump oil level.
High Flow Camplate
Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
Made in the USA
Feuling does not recommend tuning beyond stock emissions standards.
Specs
Application
Oil Cooled
Exhaust Close
17.5°
Exhaust Lift at TDC
0.146"
Exhaust Lift
0.487"
Intake Duration
237°
Type
Chain Drive
Units
Kit
Exhaust Duration
241.5°
Features
Short Travel Lifters
Model
Reaper
Product Name
Camchest Kit
Intake Lobe Centerline
98.5°
Exhaust Open
44°
Intake Lift at TDC
0.180"
Intake Open
20.5°
Riding Style
Street
Grind
487 Series
Intake Close
37°
Intake Lift
0.478"
Exhaust Lobe Centerline
103.25°
Part Notes
Kit Includes:
• 487 Reaper Camshaft
• HP+ Pushrods
• Race Series® Short Travel Lifters
• High Flow Camplate
• Race Series® Oil Pump
• Cam Installation Kit
• ARP Rocker Studs and Nuts
• Camplate/Oil Pump Fasteners
Original price
$2,069.95
-
Original price
$2,069.95
Original price
$2,069.95
$2,069.95
-
$2,069.95
Current price
$2,069.95
Product Details
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Short Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt in
- Chain Drive
- RPM range 2,250 - 6,100
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Short Travel Lifters
- Hydraulic lifters made from machined steel designed with 0.115" of travel
- One Piece Pushrods
- HP+ 0.165 wall thickness, +0.040, one piece
- Race Series® Oil Pump
- High flow 2.250 Chrome Moly gerotor gears
- 27% more pressure and scavenge gear volume over stock
- 42% more scavenge volume with matched passages, port sizing and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- FEULING® test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Application | Oil Cooled |
| Exhaust Close | 17.5° |
| Exhaust Lift at TDC | 0.146" |
| Exhaust Lift | 0.487" |
| Intake Duration | 237° |
| Type | Chain Drive |
| Units | Kit |
| Exhaust Duration | 241.5° |
| Features | Short Travel Lifters |
| Model | Reaper |
| Product Name | Camchest Kit |
| Intake Lobe Centerline | 98.5° |
| Exhaust Open | 44° |
| Intake Lift at TDC | 0.180" |
| Intake Open | 20.5° |
| Riding Style | Street |
| Grind | 487 Series |
| Intake Close | 37° |
| Intake Lift | 0.478" |
| Exhaust Lobe Centerline | 103.25° |
Part Notes
- Kit Includes:
- • 487 Reaper Camshaft
- • HP+ Pushrods
- • Race Series® Short Travel Lifters
- • High Flow Camplate
- • Race Series® Oil Pump
- • Cam Installation Kit
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
Features
- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Short Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt in
- Chain Drive
- RPM range 2,250 - 6,100
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Short Travel Lifters
- Hydraulic lifters made from machined steel designed with 0.115" of travel
- One Piece Pushrods
- HP+ 0.165 wall thickness, +0.040, one piece
- Race Series® Oil Pump
- High flow 2.250 Chrome Moly gerotor gears
- 27% more pressure and scavenge gear volume over stock
- 42% more scavenge volume with matched passages, port sizing and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- FEULING® test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Application | Oil Cooled |
| Exhaust Close | 17.5° |
| Exhaust Lift at TDC | 0.146" |
| Exhaust Lift | 0.487" |
| Intake Duration | 237° |
| Type | Chain Drive |
| Units | Kit |
| Exhaust Duration | 241.5° |
| Features | Short Travel Lifters |
| Model | Reaper |
| Product Name | Camchest Kit |
| Intake Lobe Centerline | 98.5° |
| Exhaust Open | 44° |
| Intake Lift at TDC | 0.180" |
| Intake Open | 20.5° |
| Riding Style | Street |
| Grind | 487 Series |
| Intake Close | 37° |
| Intake Lift | 0.478" |
| Exhaust Lobe Centerline | 103.25° |
Part Notes
- Kit Includes:
- • 487 Reaper Camshaft
- • HP+ Pushrods
- • Race Series® Short Travel Lifters
- • High Flow Camplate
- • Race Series® Oil Pump
- • Cam Installation Kit
- • ARP Rocker Studs and Nuts
- • Camplate/Oil Pump Fasteners
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1621 | 7272ST | In Stock |
