Feuling Parts
Feuling Parts Reaper Camshaft Kit - 1462 For Harley Motorcycles 2017-2026
MPN:
1462
SKU:
0925-1619
Feuling Parts
Feuling Parts Reaper Camshaft Kit - 1462 For Harley Motorcycles 2017-2026
MPN:
1462
SKU:
0925-1619
Availability:
16 in stock, ready to be shipped

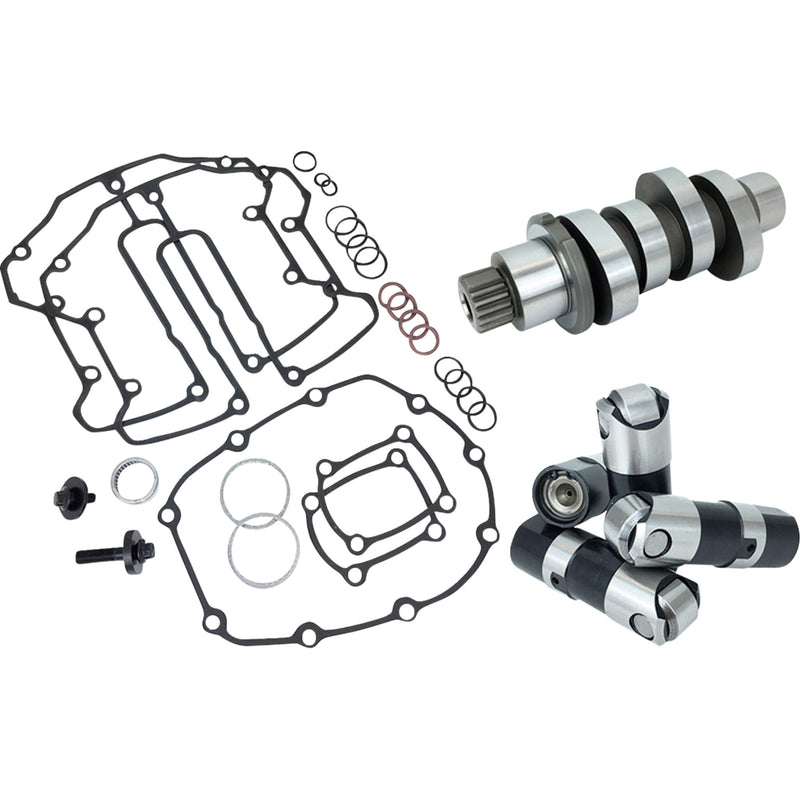

487 Reaper Chain Drive Camshaft, Cam Installation Kit and Race Series Lifters are included in this kit
487 Reaper Camshaft
Bolt in
Chain Drive
38° overlap
RPM range 2,250 - 6,1000
Camshaft for 114" and 117" engine
Responds very well to increased bore and or compression
Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio.
Cam Installation Kit
Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Allows for installation of the factory one piece pushrods or optional Feuling® heavy duty HP+® 0.165 wall one piece pushrods
Race Series lifters
Hydraulic lifters have a full 0.200 of total travel
Designed with a slower bleed down rate to handle heavy valve spring pressures
Increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange
Made in the USA
Heavy duty one piece pushrods are highly recommended.
Feuling® fastener kit is recommended to help prevent cylinder head cracking.
A high flow exhaust system and air cleaner is highly recommended for optimal performance.
High Lift valve springs are required on stock cylinder heads, Screamin Eagle cylinder heads have high lift valve springs but will need to be verified.
Feuling® does not recommend tuning beyond stock emissions standards.
Specs
Intake Lift
0.478"
Intake Lobe Centerline
98.5°
Exhaust Lobe Centerline
103.25°
Exhaust Close
17.5°
Exhaust Lift
0.487"
Exhaust Open
44°
Intake Open
20.5°
Product Name
Camshaft Kit
Riding Style
Street
Type
Chain Drive
Grind
487 Series
Intake Close
37°
Exhaust Lift at TDC
0.146"
Intake Duration
237°
Intake Lift at TDC
0.180"
Model
Reaper
Units
Kit
Exhaust Duration
241.5°
Part Notes
Not for VVT engines.
Includes:
• Chain Drive Camshaft
• Race Series® Lifters
• Cam Installation Kit
