Feuling Oil Pump Corp.

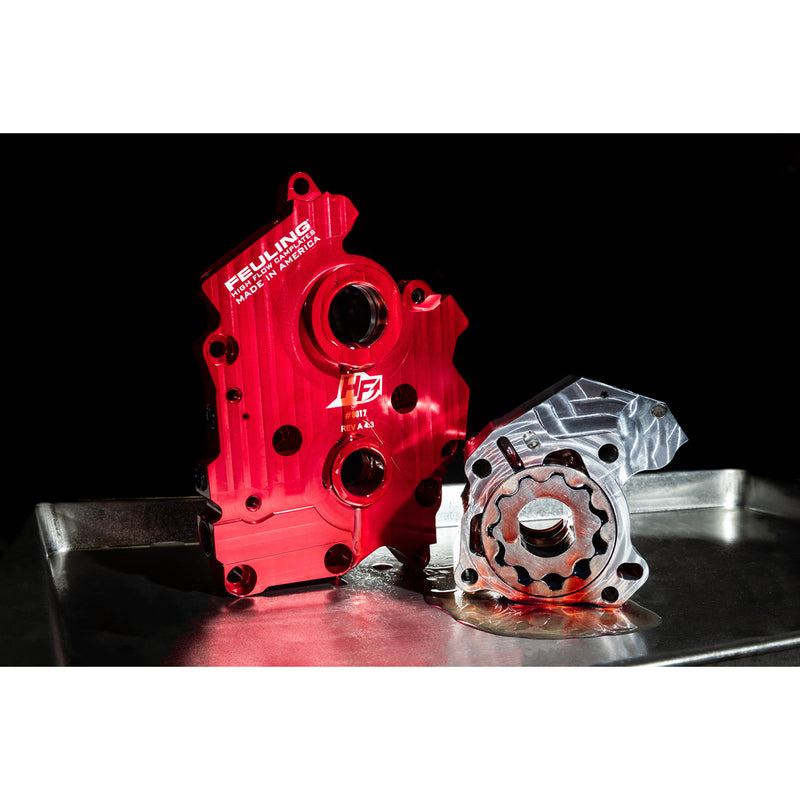

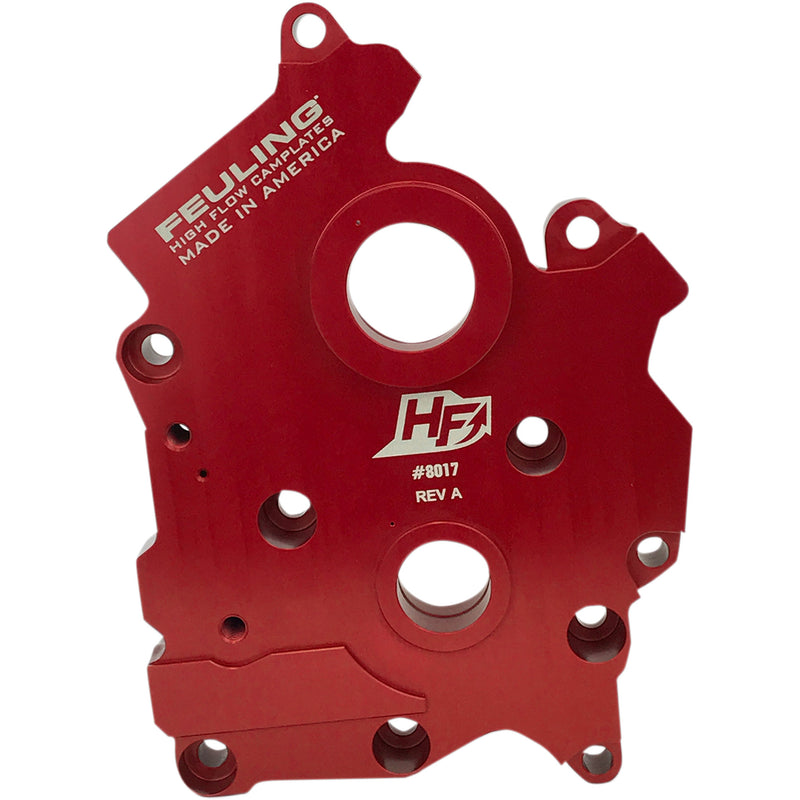

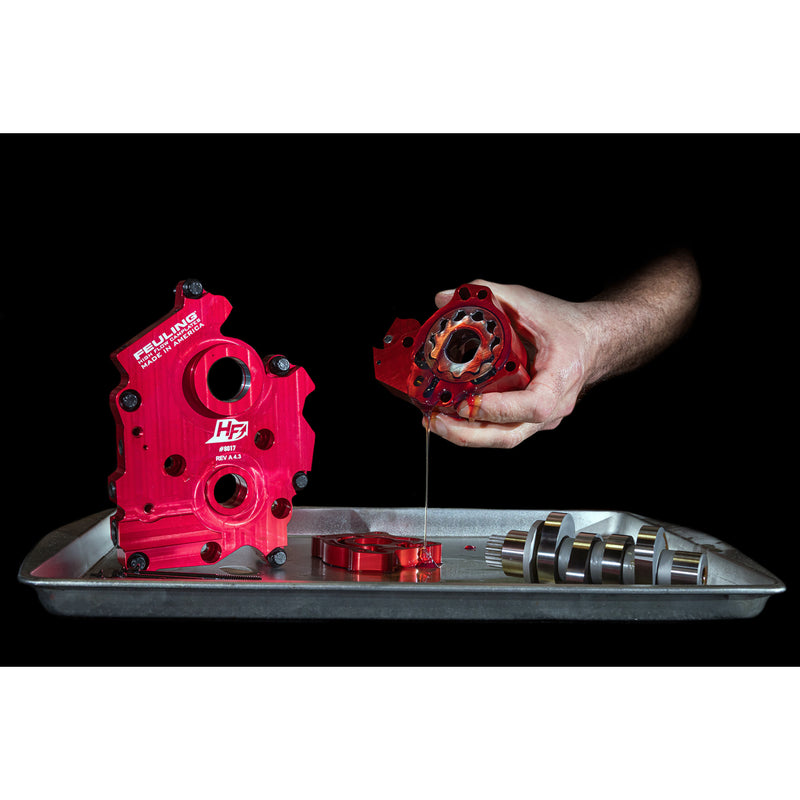

Feuling Oil Pump Corp. Cam Plate - 8017 For Harley Motorcycles 2017-2026
MPN:
8017
SKU:
0932-0192
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Cam Plate - 8017 For Harley Motorcycles 2017-2026
MPN:
8017
SKU:
0932-0192
Availability:
47 in stock, ready to be shipped
Original price
$399.95
-
Original price
$399.95
Original price
$399.95
$399.95
-
$399.95
Current price
$399.95
Product Details
Features
- Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenging return holes from the pump to the camplate and into the engine case
- Camplate matches the oil port holes on the camplate to the oil holes in the engine case to increase oil flow throughout the engine
- Lowers engine temperatures by 15-25 degrees and oil running temperature by 15-25 degrees when matched with a Feuling® HP+ or RS oil pump
- 7075 billet aluminum construction, which is 50% harder and stronger than the factory cast and Feuling® OE+ camplates
- Increases the strength and hardness of the camplate, holding tighter tolerances under temperature and eliminating flexing and the need for bronze bushings
- When matched with the Feuling® Race Series Oil Pump, rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
- Made in the USA
- For gear or chain drive cams (block-off plate PART #0932-0036 required when using gear drive cams).
- Use Only with Feuling® HP+ and Race Series M-Eight oil pumps.
Specs
| Product Name | Cam Plate |
| Type | Oil Pump |
| Color/Finish | Red |
| Material | 7075 Billet Aluminum |
| Units | Each |
| Riding Style | Street |
Features
- Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenging return holes from the pump to the camplate and into the engine case
- Camplate matches the oil port holes on the camplate to the oil holes in the engine case to increase oil flow throughout the engine
- Lowers engine temperatures by 15-25 degrees and oil running temperature by 15-25 degrees when matched with a Feuling® HP+ or RS oil pump
- 7075 billet aluminum construction, which is 50% harder and stronger than the factory cast and Feuling® OE+ camplates
- Increases the strength and hardness of the camplate, holding tighter tolerances under temperature and eliminating flexing and the need for bronze bushings
- When matched with the Feuling® Race Series Oil Pump, rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
- Made in the USA
- For gear or chain drive cams (block-off plate PART #0932-0036 required when using gear drive cams).
- Use Only with Feuling® HP+ and Race Series M-Eight oil pumps.
Specs
| Product Name | Cam Plate |
| Type | Oil Pump |
| Color/Finish | Red |
| Material | 7075 Billet Aluminum |
| Units | Each |
| Riding Style | Street |
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0932-0192 | 8017 | In Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
