Feuling Oil Pump Corp.
Feuling Oil Pump Corp. High-Load Beehive Spring Kit - 1207 For Harley Motorcycles 2017-2026
MPN:
1207
SKU:
0926-3138
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. High-Load Beehive Spring Kit - 1207 For Harley Motorcycles 2017-2026
MPN:
1207
SKU:
0926-3138
Availability:
Out of stock
Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift
Springs will accommodate over 0.600" cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

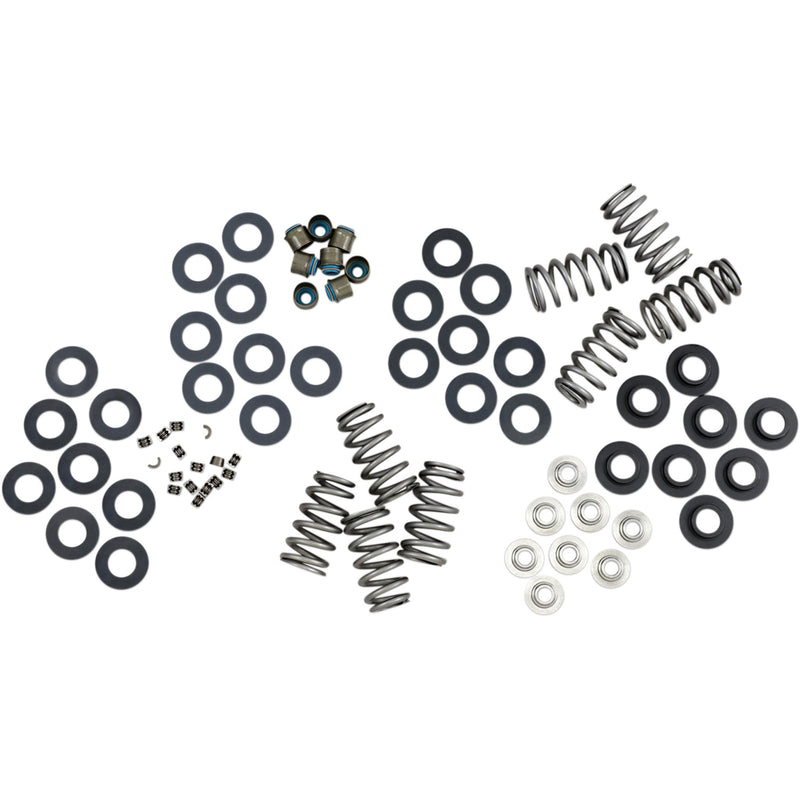

Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
Seat lb/Installed Height
151 lb @ 1.475" (0.485" Lift)
144 lb @ 1.498" (0.508" Lift)
143 lb @ 1.501" (0.511" Lift)
140 lb @ 1.511" (0.521" Lift)
124 lb @ 1.562" (0.578" Lift)
120 lb @ 1.582" (0.592" Lift)
304 lb @ 0.990" open height
Coil Bind @ 0.945"
Recommended for +0.540” lift camshafts
Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
Made in the USA
Only recommended for large lift camshafts and race style engines as these valvesprings if not set properly will create extreme rocker arm deflection.
Specs
Product Name
Spring Kit
Type
Valve
Style
Ovate Wire Beehive
Model
High-Load Beehive
Units
Kit
Riding Style
Street
Sold out
Original price
$609.95
-
Original price
$609.95
Original price
$609.95
$609.95
-
$609.95
Current price
$609.95
Product Details
Features
- Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
- FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
- Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift
- Springs will accommodate over 0.600" cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
- Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
- Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics
- Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
- Seat lb/Installed Height
- 151 lb @ 1.475" (0.485" Lift)
- 144 lb @ 1.498" (0.508" Lift)
- 143 lb @ 1.501" (0.511" Lift)
- 140 lb @ 1.511" (0.521" Lift)
- 124 lb @ 1.562" (0.578" Lift)
- 120 lb @ 1.582" (0.592" Lift)
- 304 lb @ 0.990" open height
- Coil Bind @ 0.945"
- Recommended for +0.540” lift camshafts
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the USA
- Only recommended for large lift camshafts and race style engines as these valvesprings if not set properly will create extreme rocker arm deflection.
Specs
| Product Name | Spring Kit |
| Type | Valve |
| Style | Ovate Wire Beehive |
| Model | High-Load Beehive |
| Units | Kit |
| Riding Style | Street |
Product Description
Features
- Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
- FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
- Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift
- Springs will accommodate over 0.600" cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
- Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
- Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics
- Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
- Seat lb/Installed Height
- 151 lb @ 1.475" (0.485" Lift)
- 144 lb @ 1.498" (0.508" Lift)
- 143 lb @ 1.501" (0.511" Lift)
- 140 lb @ 1.511" (0.521" Lift)
- 124 lb @ 1.562" (0.578" Lift)
- 120 lb @ 1.582" (0.592" Lift)
- 304 lb @ 0.990" open height
- Coil Bind @ 0.945"
- Recommended for +0.540” lift camshafts
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the USA
- Only recommended for large lift camshafts and race style engines as these valvesprings if not set properly will create extreme rocker arm deflection.
Specs
| Product Name | Spring Kit |
| Type | Valve |
| Style | Ovate Wire Beehive |
| Model | High-Load Beehive |
| Units | Kit |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0926-3138 | 1207 | Out of Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
